Rear Oil Seal Installation Note

WARNING: This page is about a different variant/trim than selected.

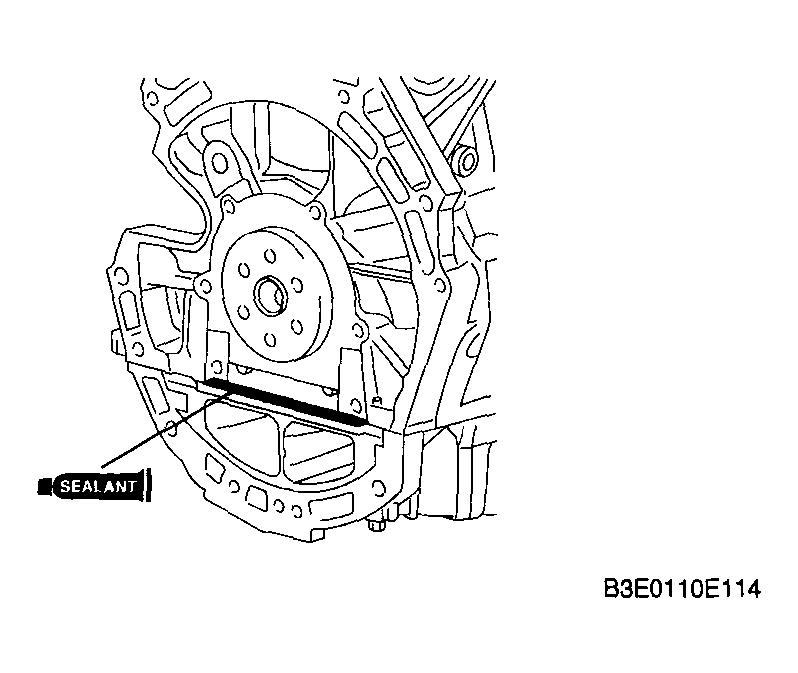

Apply silicone sealant to the areas shown in the figure.
CAUTION:
- Install the rear oil seal within 10 min of applying the silicone sealant.
Thickness 4.0-6.0 mm {0.16-0.23 in}
Apply clean engine oil to a new rear oil seal.

Fig 1: Applying Clean Engine Oil To Rear Oil Seal
Courtesy of MAZDA MOTORS CORP.
Install the rear oil seal using a SST .

Fig 2: Installing Rear Oil Seal Using SST
Courtesy of MAZDA MOTORS CORP.

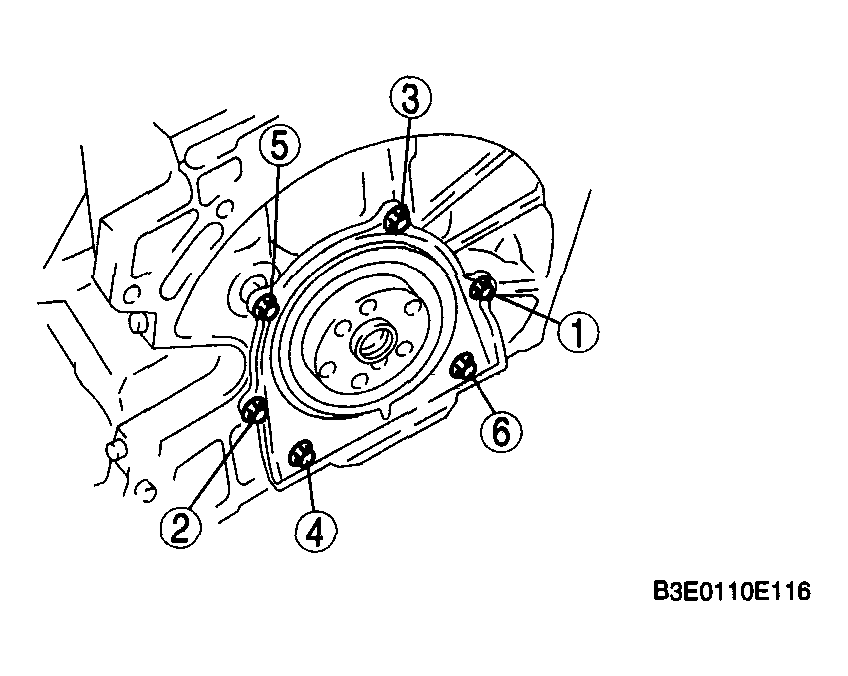

Tighten the rear oil seal installation bolts in the order shown in the figure.
Tightening torque

8.0-11.5 N.m {81.6-117.2 kgf.cm, 70.9-101.7 in.lbf}

Fig 3: Rear Oil Seal Bolt Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
