Rear Oil Seal Replacement: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove the flywheel. (See CLUTCH UNIT REMOVAL/INSTALLATION [A26MX-R] ).
  2. Remove in the order indicated in the figure.
  3. Install in the reverse order of removal.

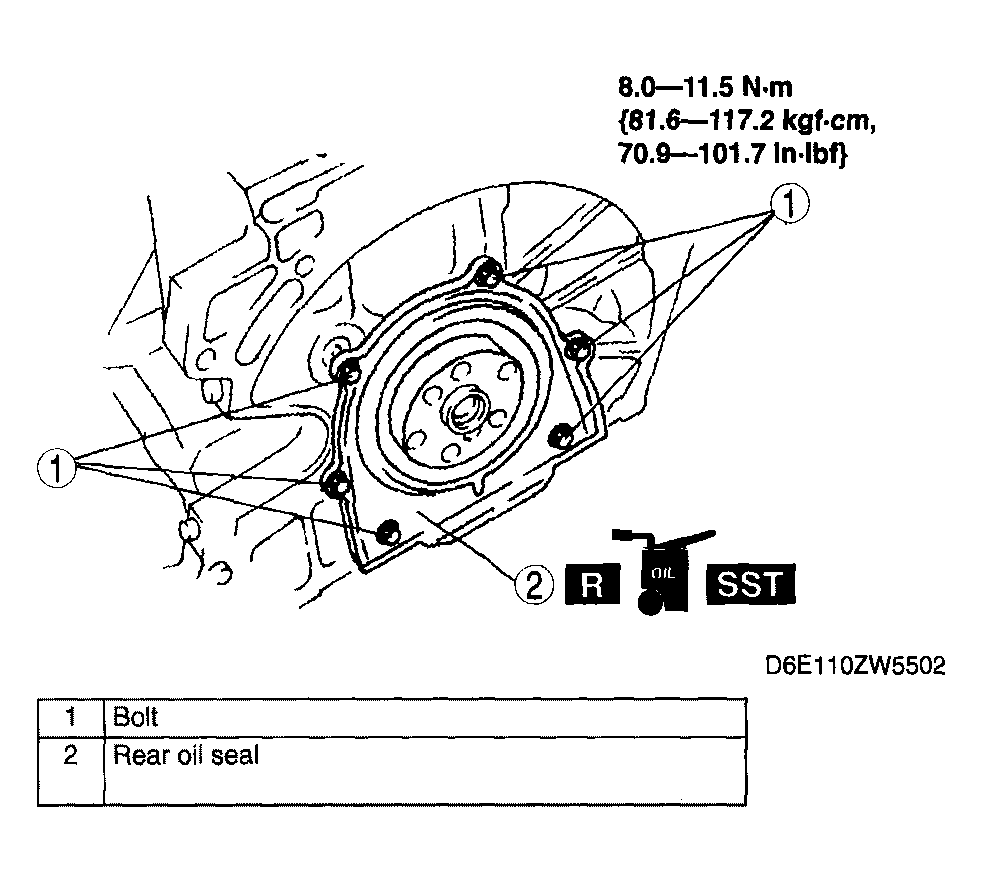

    Fig 1: Installing Rear Oil Seal & Torque Specification
    G04324452Courtesy of MAZDA MOTORS CORP.
