Front Oil Seal Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the oil seal lip using a razor.
  2. Remove the oil seal using a flat head screwdriver with the tip protected by a rag to prevent crankshaft oil seal damage.

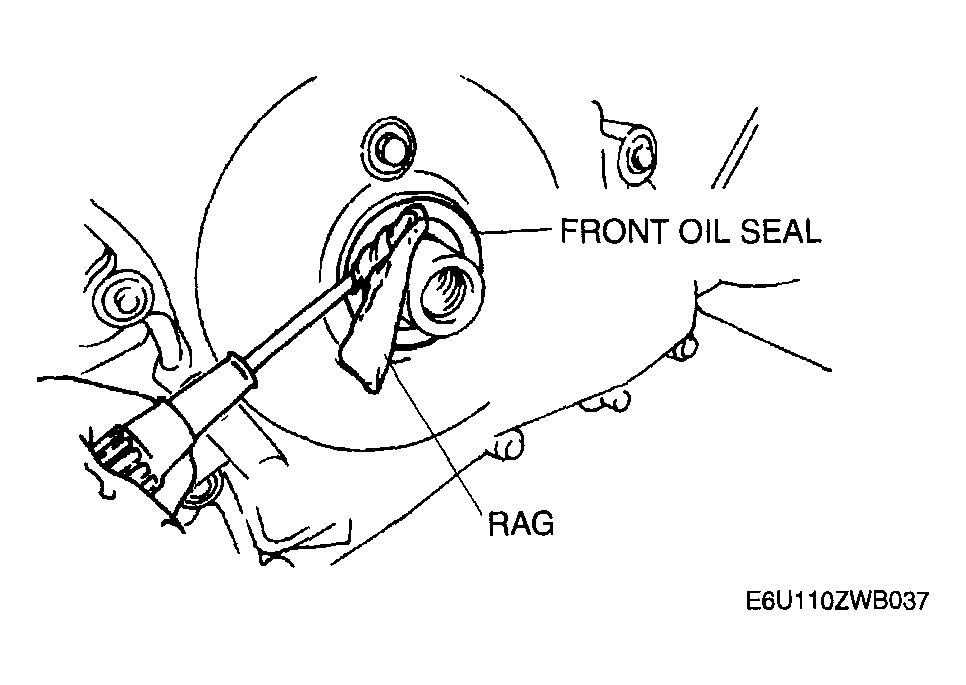

    Fig 1: Removing Front Oil Seal
    G04324445Courtesy of MAZDA MOTORS CORP.
