No. 4 Engine Mount Bracket, No. 4 Engine Mount Rubber Installation Note

WARNING: This page is about a different variant/trim than selected.

Tighten the No. 4 engine mount bracket and No. 4 engine mount rubber bolts and nuts in the order shown in the figure.
Tightening procedure
1. Temporarily tighten (1).
2. Align (2) in position and temporarily tighten.
3. Completely tighten (1) from the front side.
4. Completely tighten (2).
5. Completely tighten (3).
6. Temporarily tighten (4).
7. Completely tighten in the order of (5),(6),(7).
8. Completely tighten (4).

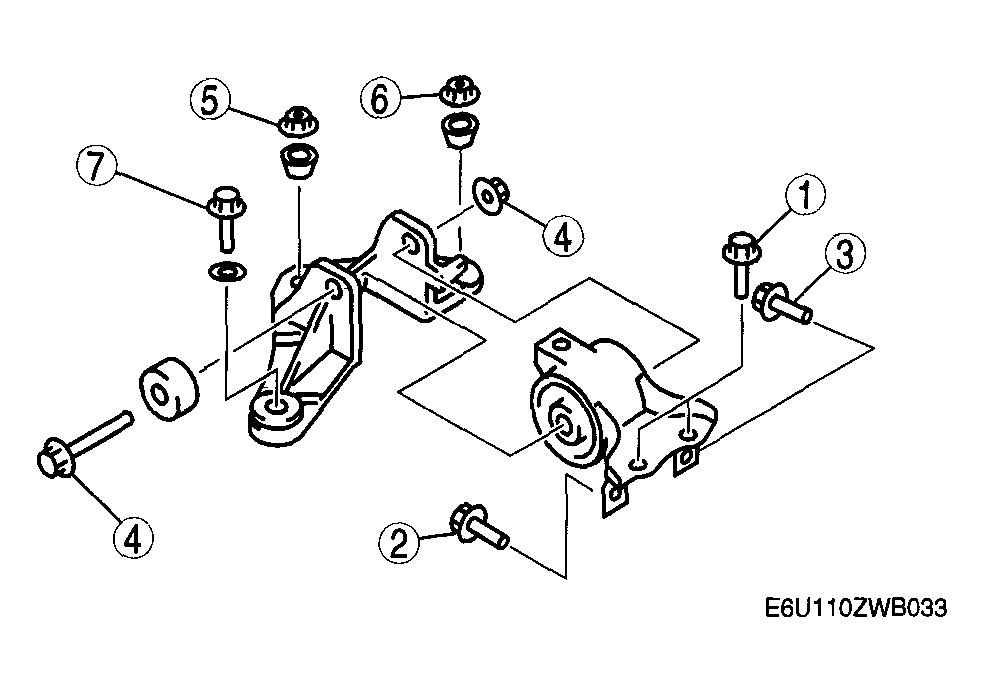

  Fig 1: Tightening No. 4 Engine Mount Bracket And No. 4 Engine Mount Rubber Bolts And Nuts
  Courtesy of MAZDA MOTORS CORP.
Tightening torque

(1)--(3) 50.6-68.5 N.m {5.2-6.9 kgf.m, 37.4-50.5 ft.lbf}

(4) 85.3-116.6 N.m {8.7-11.8 kgf.m, 63.0-85.9 ft.lbf}

(5)--(7) 66.6-93.1 N.m {6.80-9.49 kgf.m, 49.2-68.6 ft.lbf}

3. Secure the engine and transaxle using an engine jack and attachment.

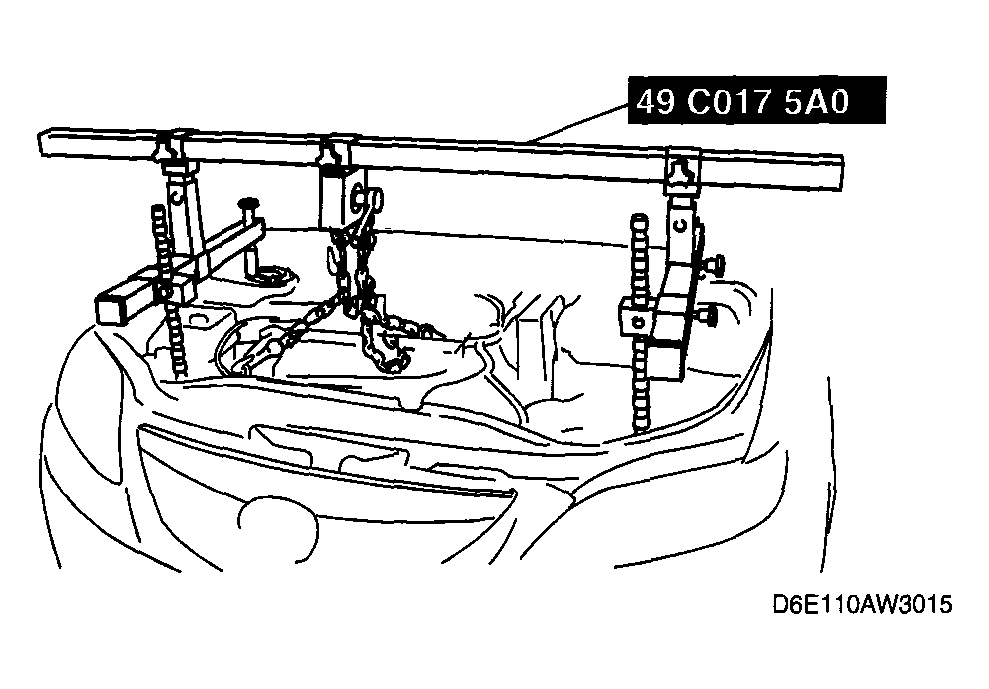

Fig 2: Identifying Engine And Transaxle Support Jack
Courtesy of MAZDA MOTORS CORP.
4. Remove the hoist and secure the engine and transaxle using SST .
5. Remove the engine jack.

Fig 3: Securing Engine And Transaxle
Courtesy of MAZDA MOTORS CORP.
