No. 1 Engine Mount Rubber Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove through-bolt A on the No. 1 engine mount bracket side from the underside of the vehicle.
  2. Loosen through-bolt B on the crossmember side until approx. three pitches remain.

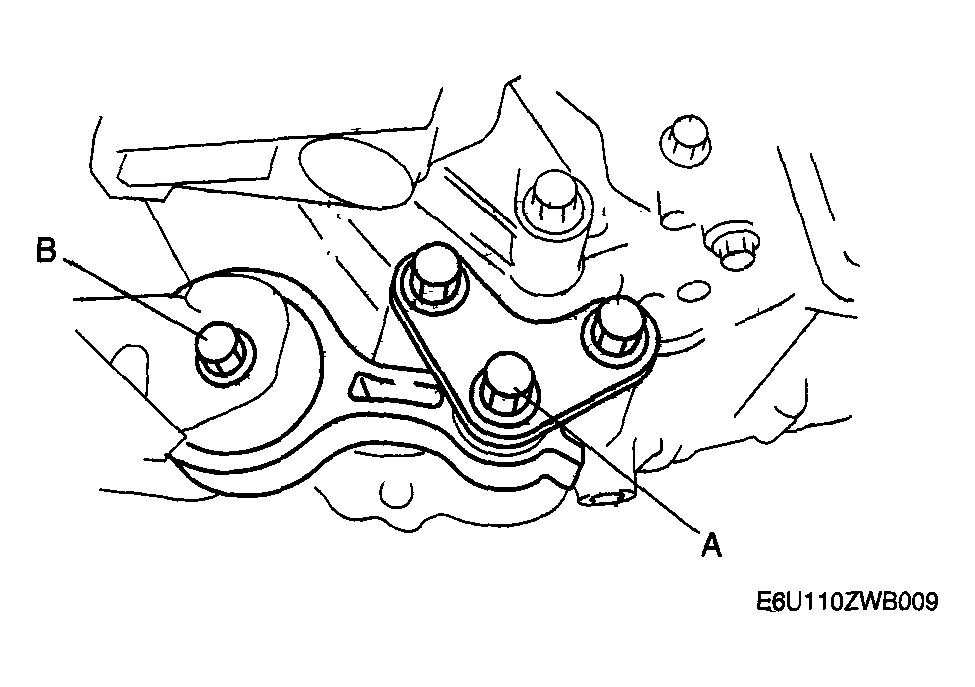

    Fig 1: Removing Through-Bolt A On No. 1 Engine Mount Bracket
    G04324457Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Do not remove the No. 1 engine mount rubber from the crossmember.

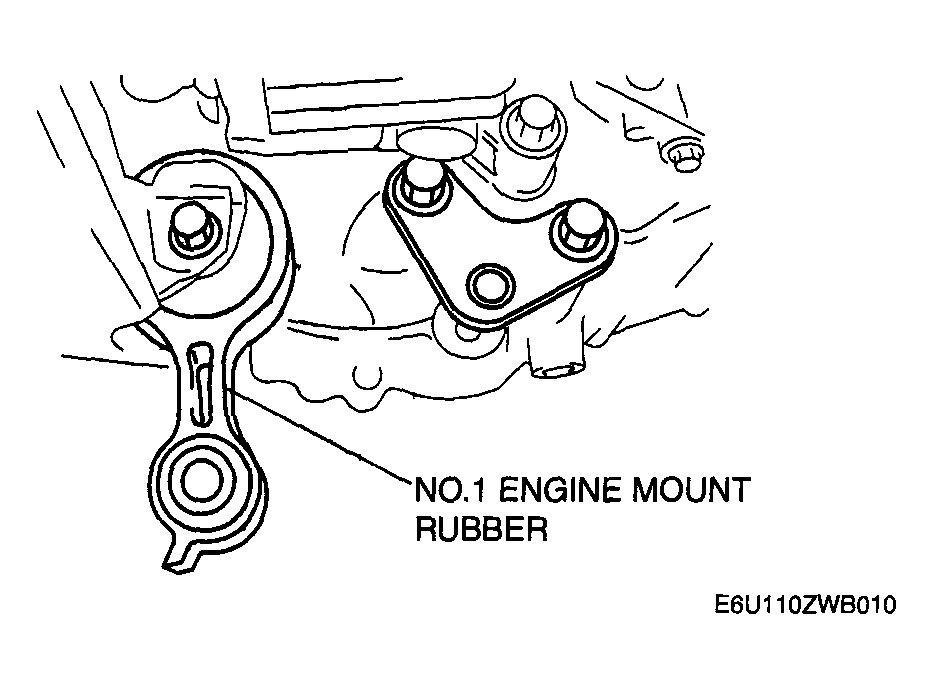

    Fig 2: Identifying No. 1 Engine Mount Rubber
    G04324458Courtesy of MAZDA MOTORS CORP.
