Camshaft Removal Note

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • The camshaft caps are to be kept ordered for correct reassembly in their original positions.
  1. Loosen the camshaft cap bolts in two or three passes in the order shown, and remove them.

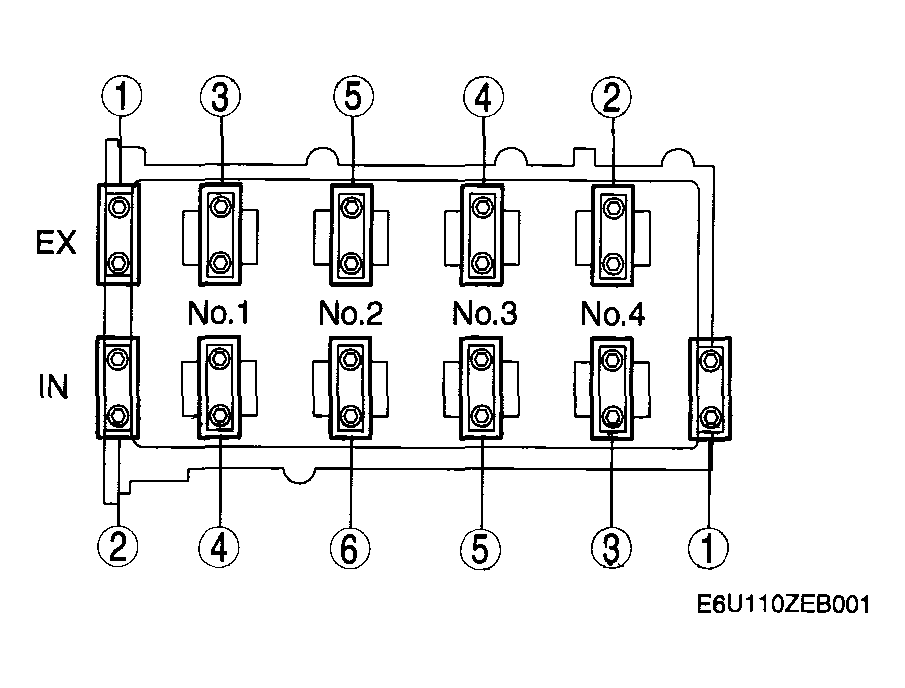

    Fig 1: Loosening Sequence Of Camshaft Cap Bolts
    G04324436Courtesy of MAZDA MOTORS CORP.
