DTC U0073, U2516 [L3 With TC]: Notes
WARNING: This page is about a different variant/trim than selected.

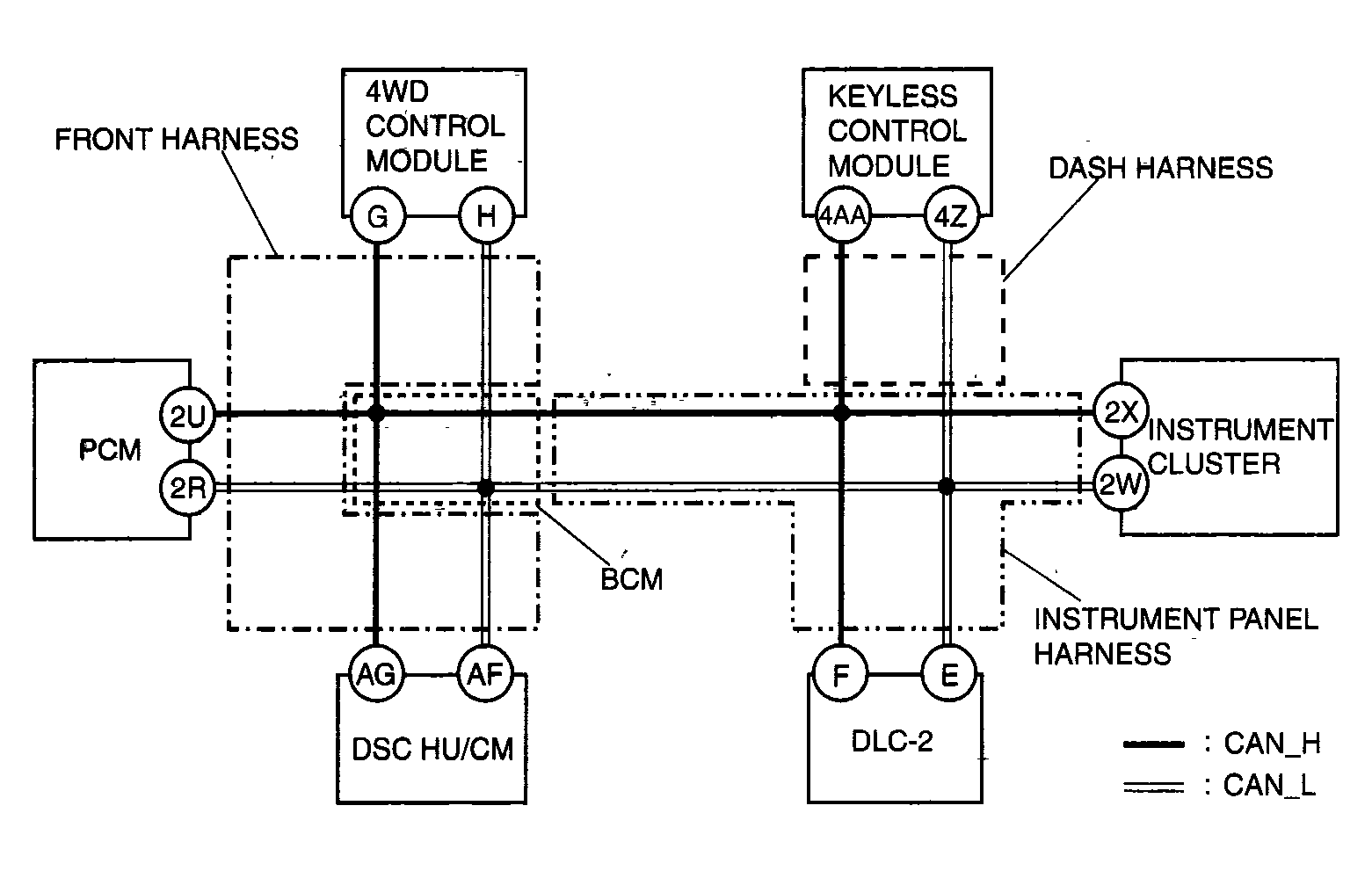

DTC U0073, U2516 [L3 WITH TC] DETECTION CONDITION AND POSSIBLE CAUSES
| DTC |
U0073 |
PCM
DSC HU/CM
AWD control module
Keyless control module |
CAN system communication error |
| U2516 |
Instrument cluster |
| DETECTION CONDITION |
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only detection conditions may cause injury due to operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
- CAN system related harness malfunction
- Related module communication error
|
| POSSIBLE CAUSE |
- Open or short circuit in wiring harness
- Malfunction of connectors between PCM, DSC HU/CM, TCM, AWD control module, keyless control module and instrument cluster
- PCM malfunction
- DSC HU/CM malfunction
- AWD control module malfunction
- Keyless control module malfunction
- Instrument cluster malfunction
|
|
|
