No. 1 Melting Of Main Or Other Fuses

WARNING: This page is about a different variant/trim than selected.

FUSES CHECK

1	MELTING OF MAIN OR OTHER FUSES

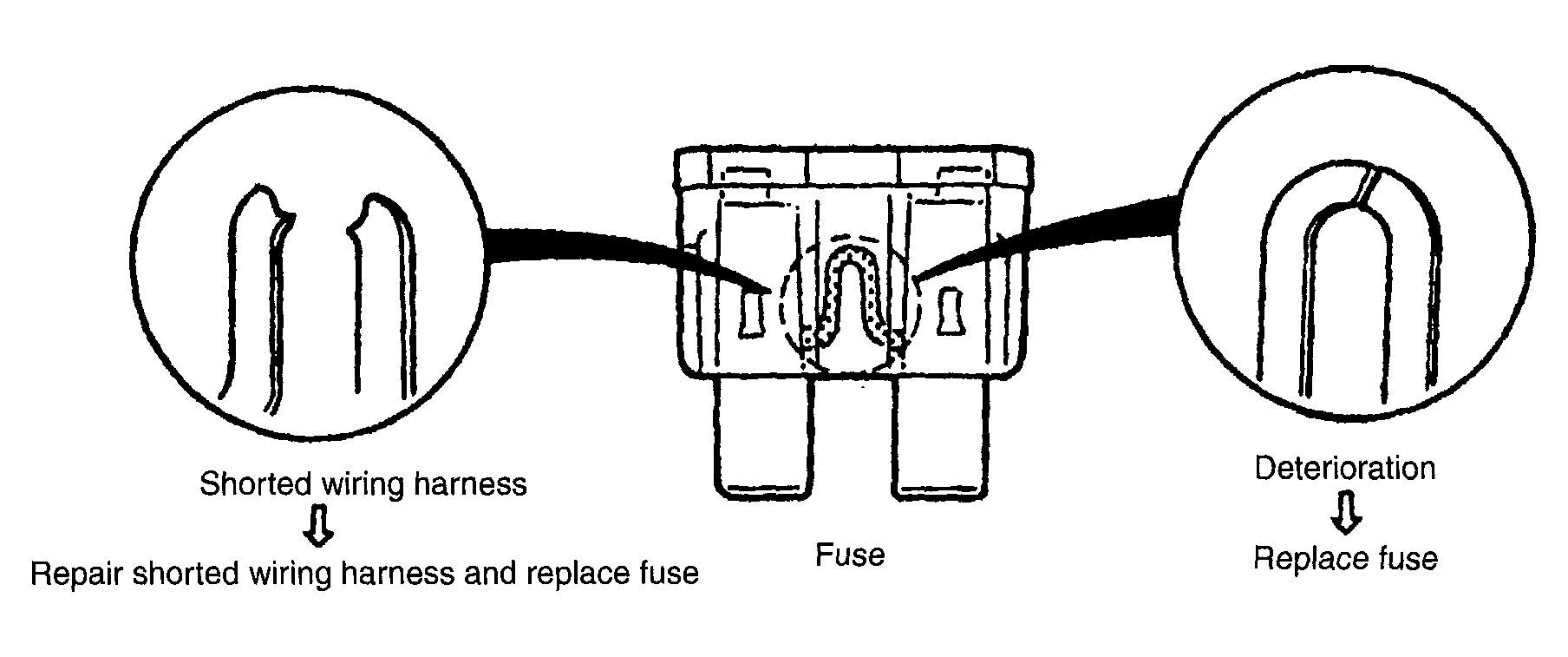

[TROUBLESHOOTING HINTS] Inspect condition of fuse.

FUSE REFERENCE CHART

Damaged fuse	Related wiring harness
MAIN	MAIN fuse BTN fuse IG KEY2 fuse FAN1 fuse FAN 2 fuse
BTN	BTN fuse ROOM fuse
ROOM	ROOM fuse DLC-2
IG KEY2	IG KEY fuse Ignition switch
FAN 1	FAN 1 fuse Cooling fan relay
FAN 2	FAN 2 fuse Cooling fan relay
ENG BB	ENG BB fuse Cooling fan relay Wastegate control solenoid valve
INJ DRIVE	INJ DRIVE fuse Injector relay
INJ	INJ fuse ETC relay PCM CKP sensor CMP sensor
ENG BAR	ENG BAR fuse Front HO2S EGR valve Purge solenoid valve MAF/IAT sensor Oil control valve Variable swirl shutter valve switch Variable swirl solenoid valve EVAP system leak detection pump
FUEL PUMP	FUEL PUMP fuse Main relay Fuel pump resistor Fuel pump relay Fuel pump control relay
IG KEY1	IG KEY1 fuse Ignition switch ENGINE fuse
ENGINE	ENGINE fuse PCM Injection relay Ignition coil Fuel pump relay
ENG +B	ENG +B fuse PCM
ETC fuse	ETC fuse ETC control relay
