Except California Emission Regulation Applicable ATX Model

WARNING: This page is about a different variant/trim than selected.

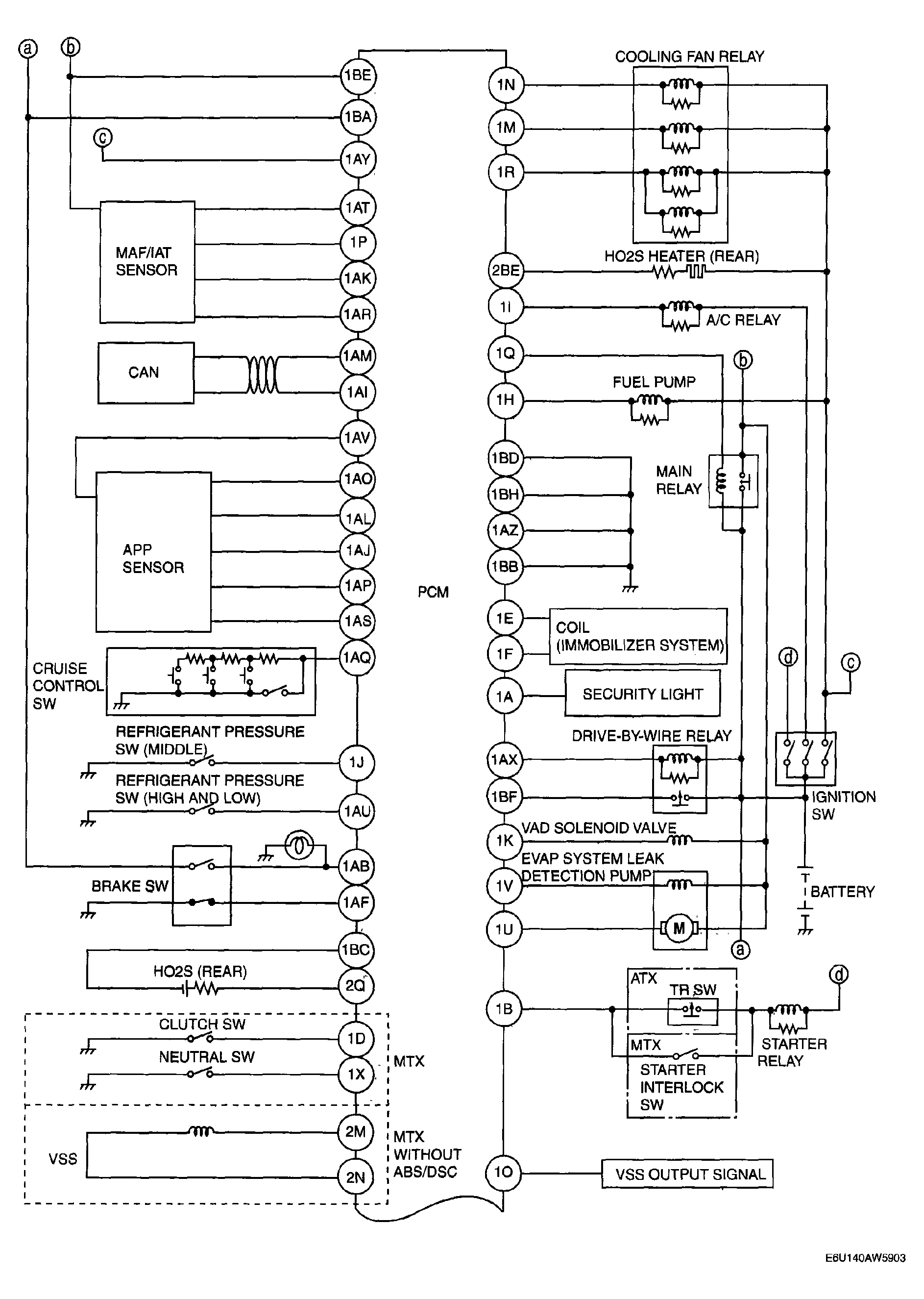

Fig 1: Except California Emission Regulation Applicable ATX Model - Wiring Diagram (1 Of 2)
G04323978Courtesy of MAZDA MOTORS CORP.

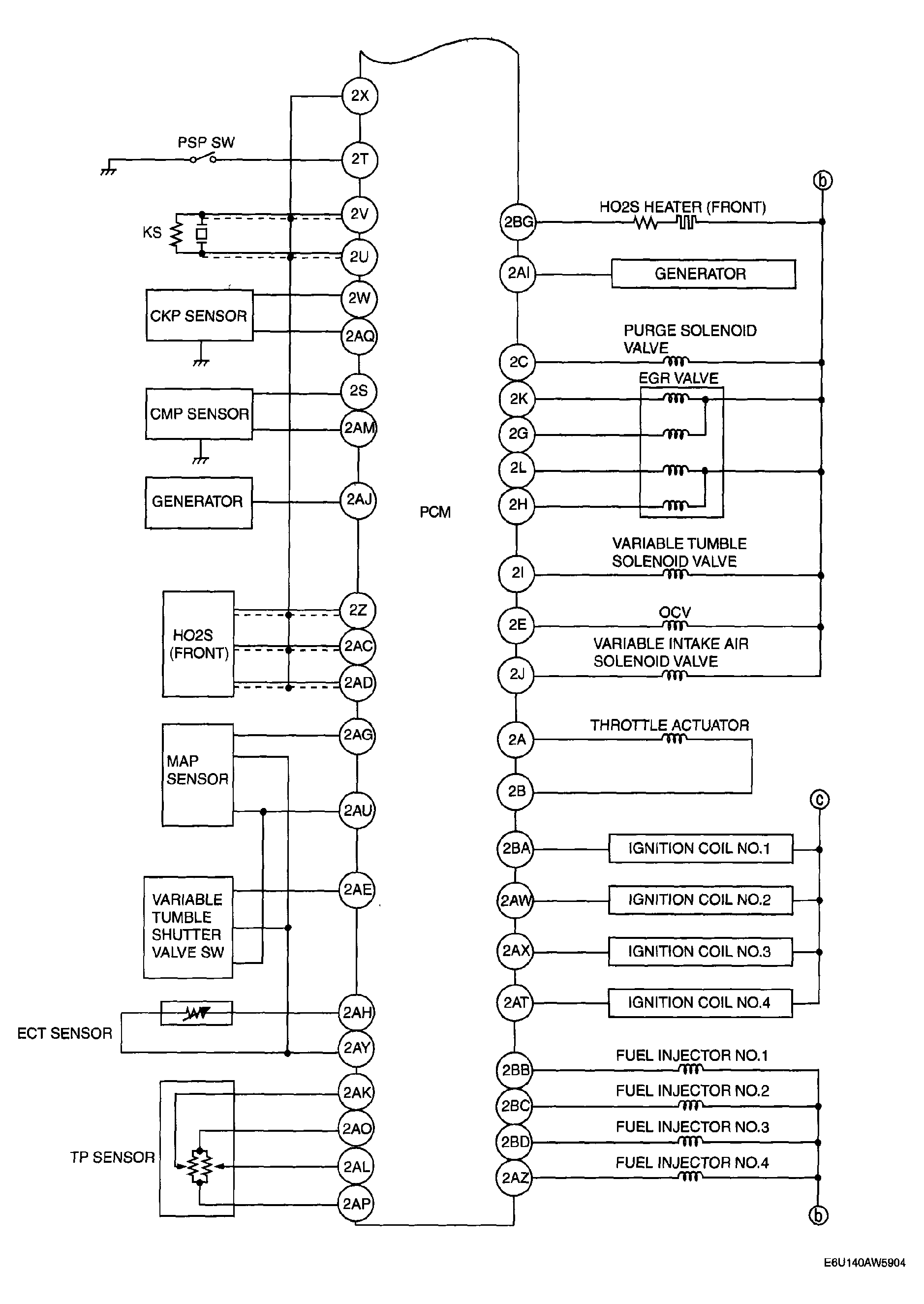

Fig 2: Except California Emission Regulation Applicable ATX Model - Wiring Diagram (2 Of 2)
G04323979Courtesy of MAZDA MOTORS CORP.
