Battery Removal/Installation [L3, AJ]

  1. Remove in the order indicated in the table.

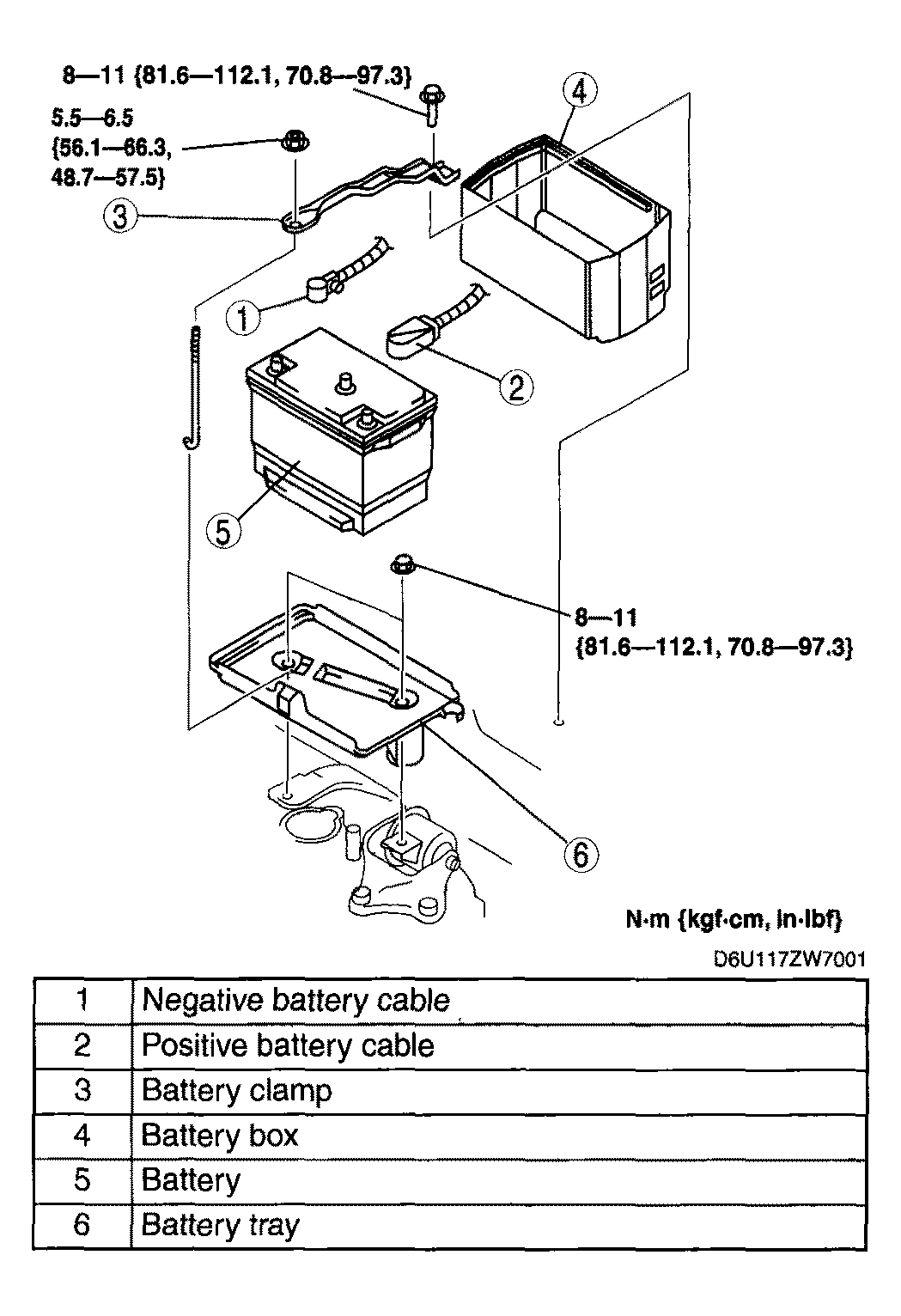

    Fig 1: Battery Tray, Hold-Downs, Cable Terminals & Torque Specification
    G04325014Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
