Electronic AWD Control System Wiring Diagram

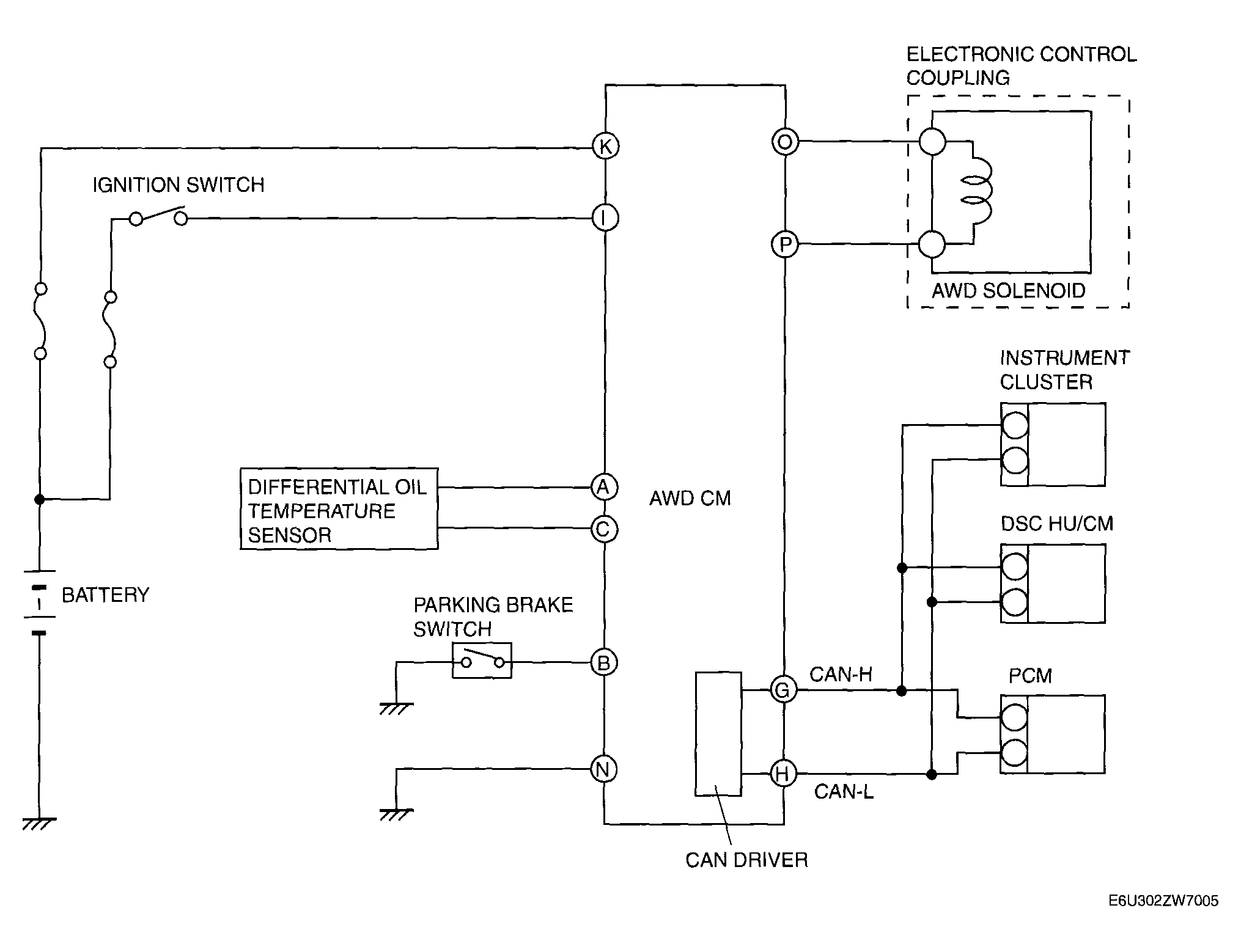

Fig 1: Electronic AWD Control System - Wiring Diagram

G04325543

Courtesy of MAZDA MOTORS CORP.
