Brake Switch Inspection

CAUTION:
  • If the brake switch is removed from the brake pedal, its proper functioning cannot be guaranteed when reinstalled. Therefore, inspect the brake switch by either not removing the brake switch, or by replacing it if removed.
  1. Disconnect the negative battery cable.
  2. Disconnect the brake switch connector.
  3. Inspect for continuity between the brake switch connector terminals.
    • If not as specified, replace the brake switch.

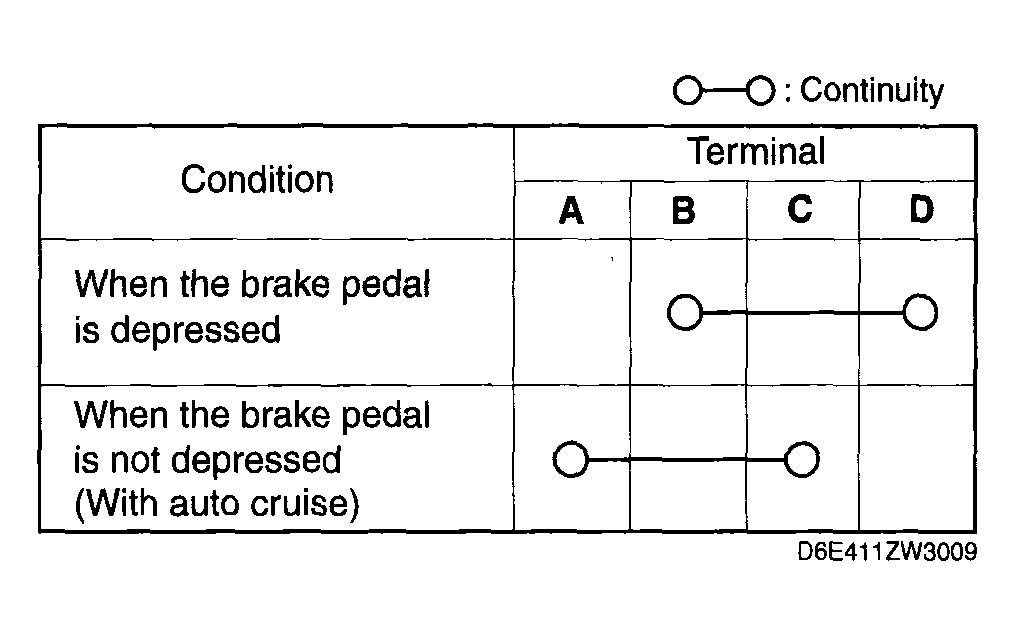

      Fig 1: Continuity Specification Chart
      G04325908Courtesy of MAZDA MOTORS CORP.
      Fig 2: Inspecting For Continuity Between Brake Switch Connector Terminals
      G04325909Courtesy of MAZDA MOTORS CORP.
