Fuel Gauge Sender Unit Removal/Installation [AWD]
>>
Fuel gauge sender cap removal note
Fuel gauge sender cap removal note
Using the
SST,
remove the fuel gauge sender cap.

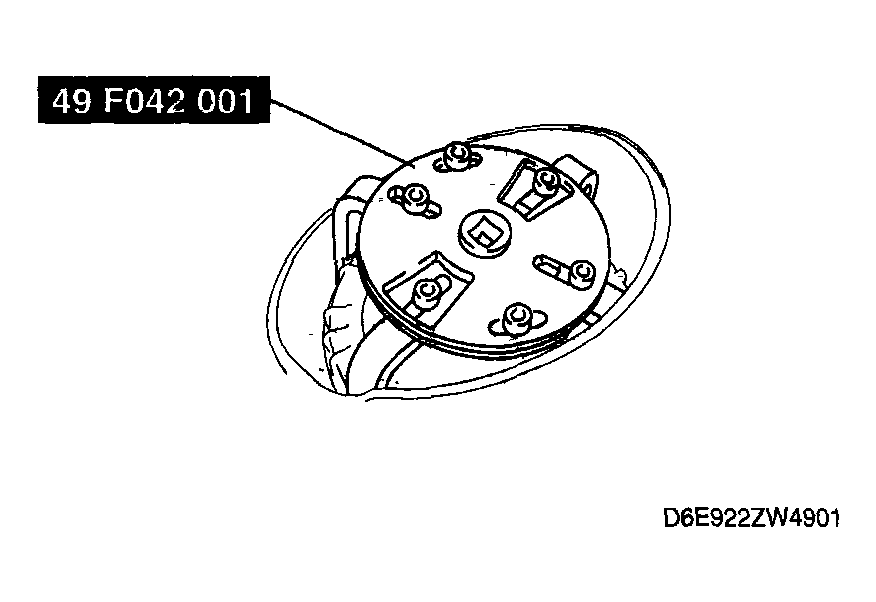

Fig 1: Removing Fuel Gauge Sender Cap Using SST
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
