Fuel Gauge Sender Cap Installation Note

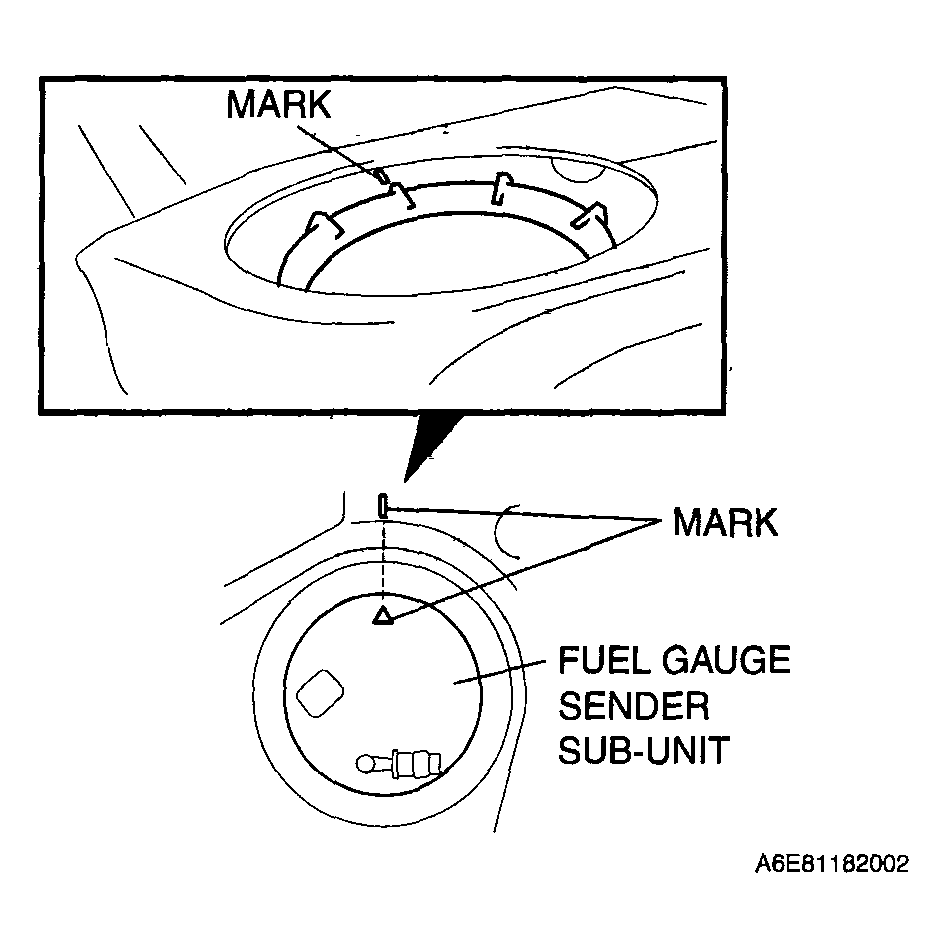

- Verify that the fuel tank mark is aligned with the fuel gauge sender sub-unit mark as shown.
- Using the SST,
tighten the fuel gauge sender cap without shifting the mark.
Tightening torque
80-90 N.m {8.2-9.1 kgf.m, 60-66 ft.lbf}
