Cruise Control Switch Inspection [L3, AJ]

Disconnect the negative battery cable.
Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION ).
Disconnect the cruise control switch connector.
Inspect for resistance and continuity between the cruise control switch terminals using an ohmmeter.
- If not as specified, replace the cruise control switch.

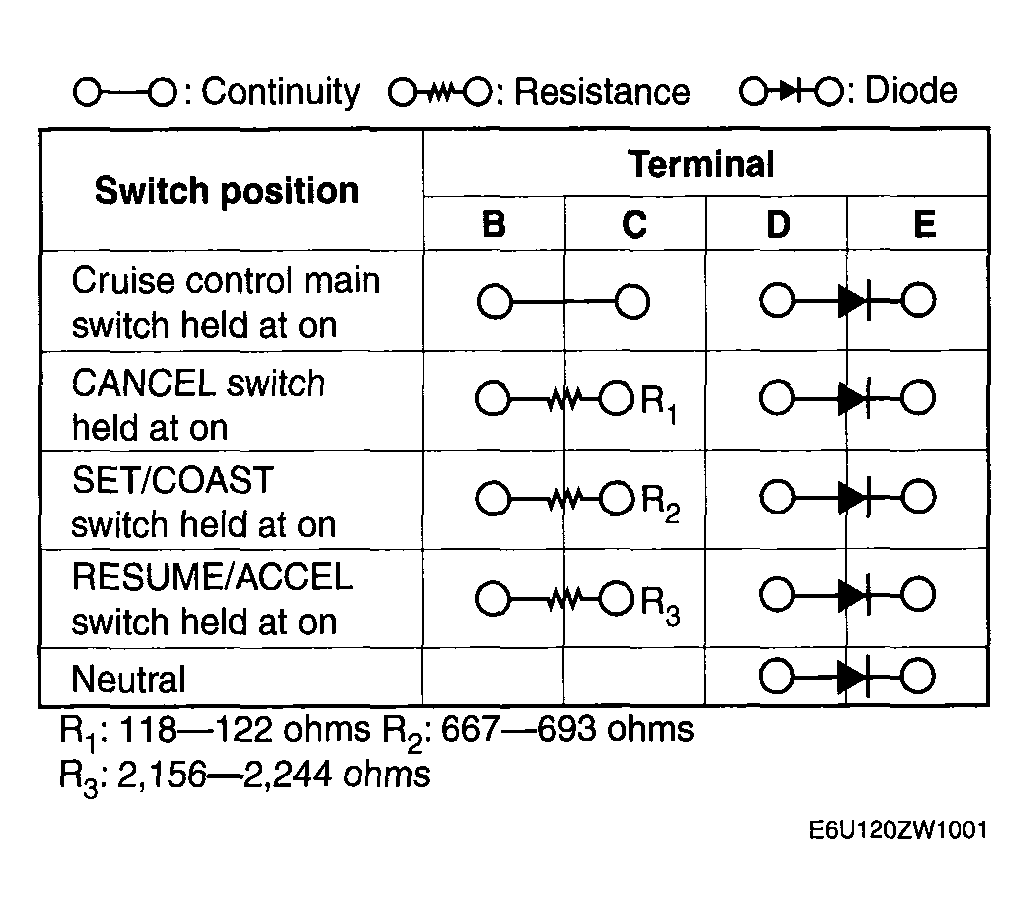

  Fig 1: Checking Cruise Control Switch Continuity
  Courtesy of MAZDA MOTORS CORP.

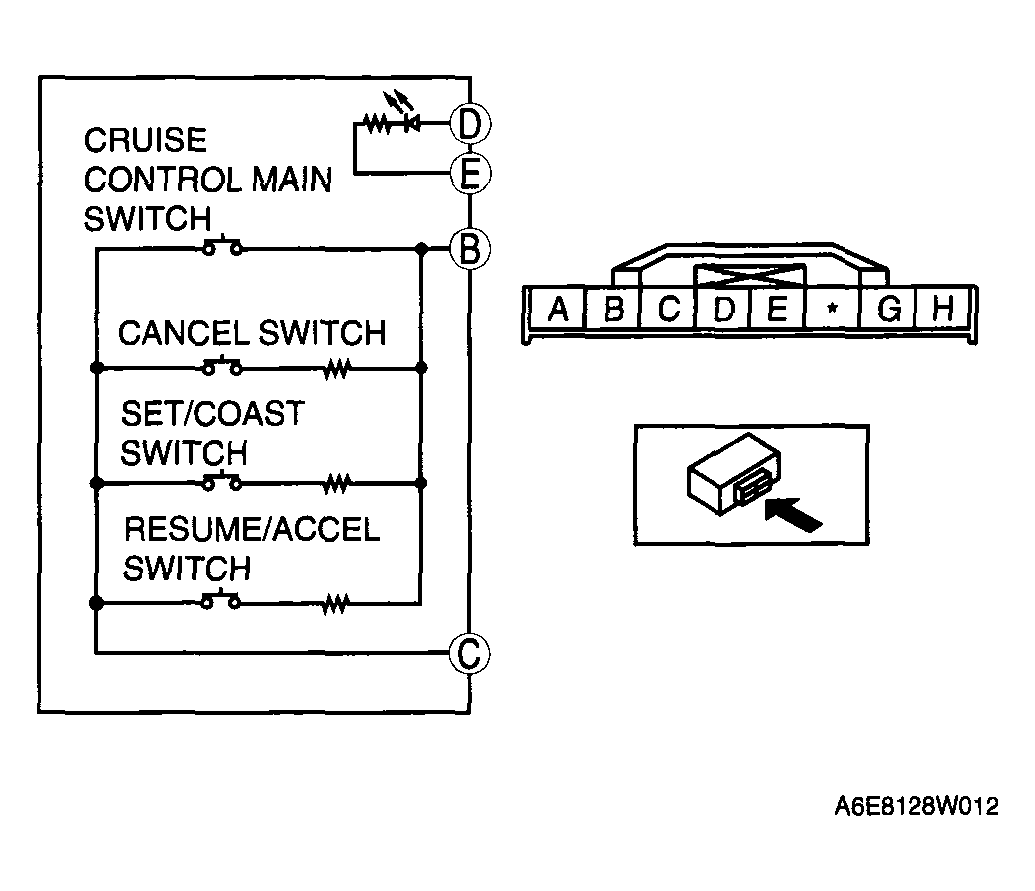

  Fig 2: Identifying Cruise Control Switch Connector Terminals
  Courtesy of MAZDA MOTORS CORP.
