No.16 Judder Upon Torque Converter Clutch (TCC) Operation [FN4A-EL]
No.16 Judder Upon Torque Converter Clutch (TCC) Operation [FN4A-EL]

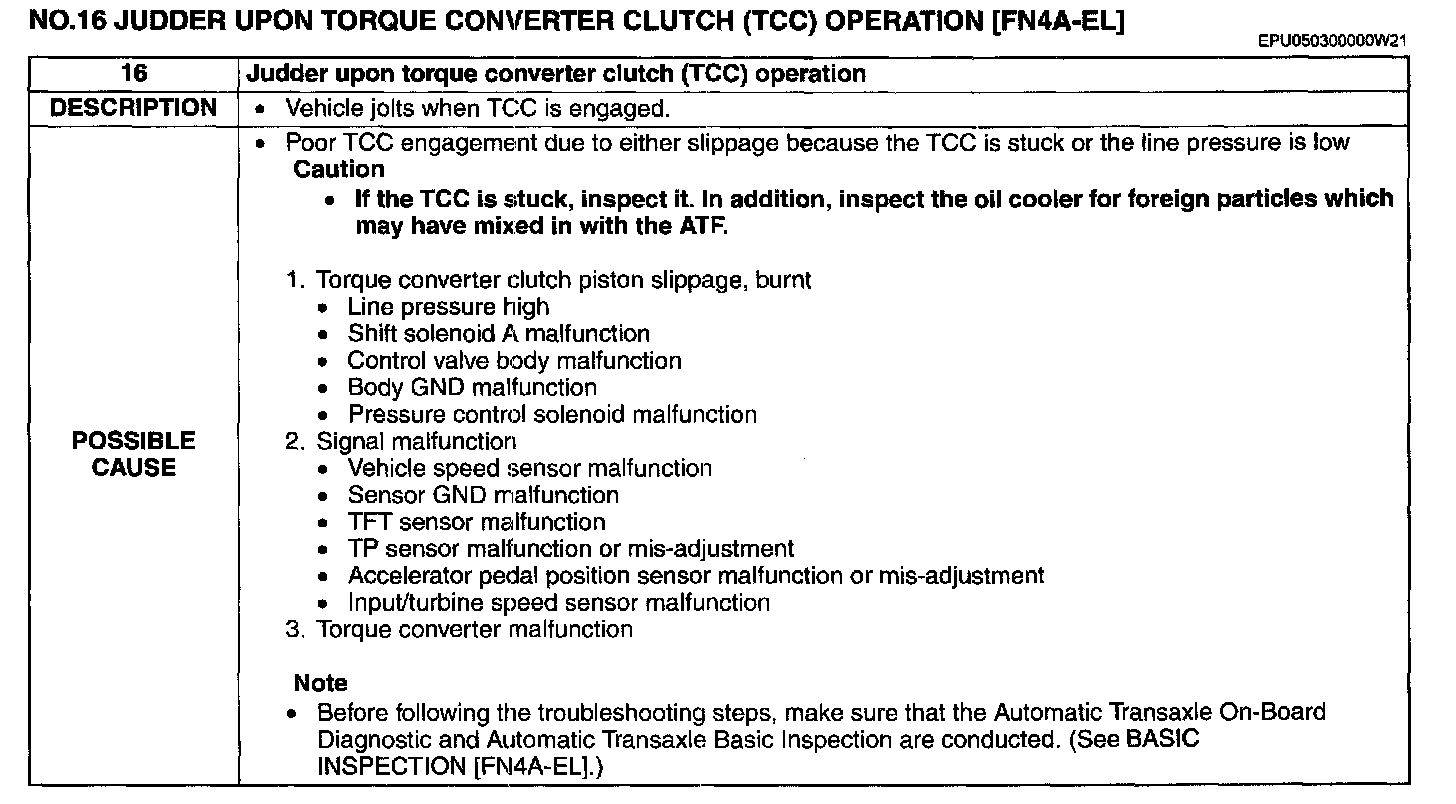

NO.16 JUDDER UPON TORQUE CONVERTER CLUTCH (TCC) OPERATION [FN4A-EL]
NO.16 JUDDER UPON TORQUE CONVERTER CLUTCH (TCC) OPERATION [FN4A-EL]:

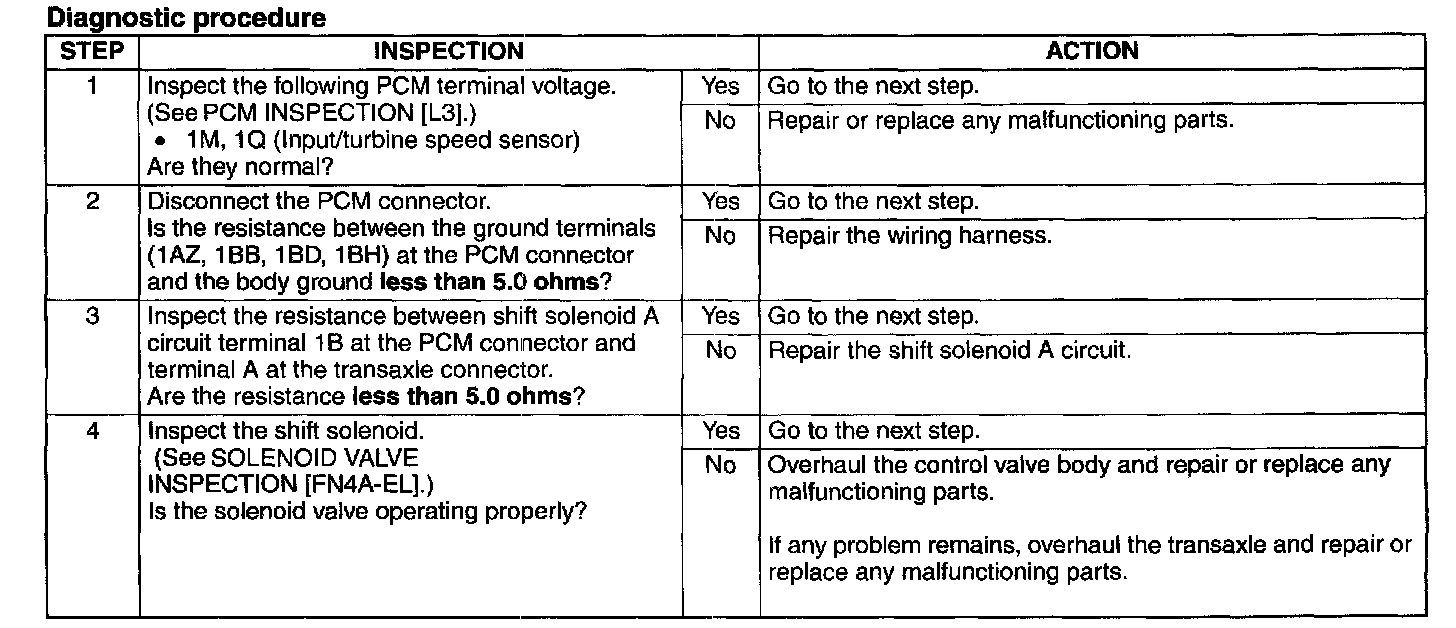

Diagnostic procedure
Step 1-Step 4:

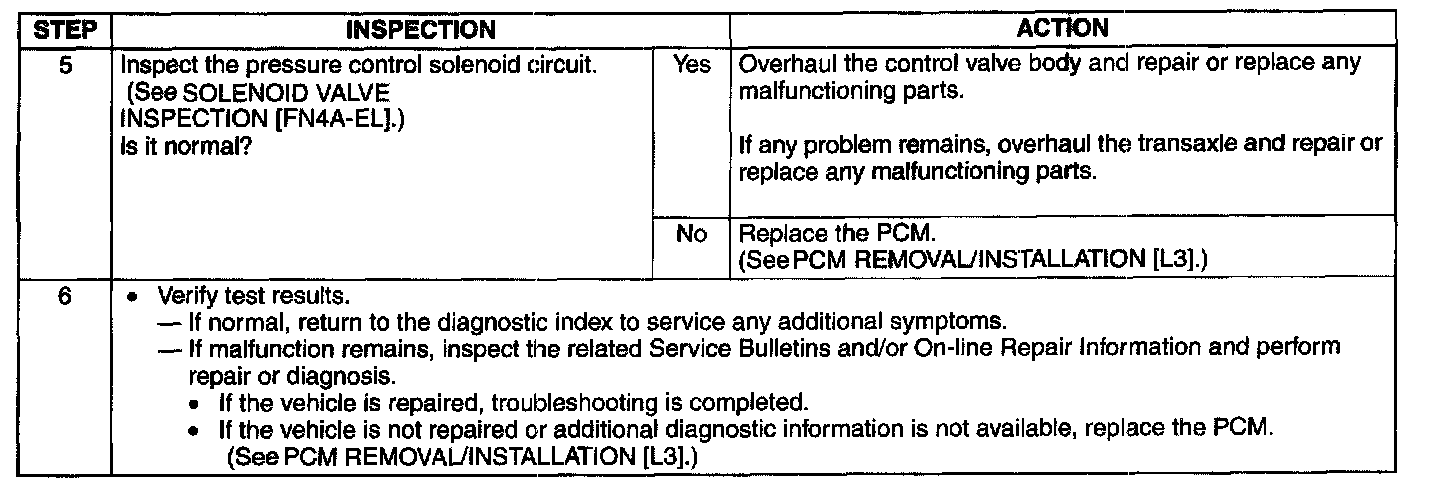

Step 5-Step 6:
