Home >> Mazda >> 2006 >> 3 L4-2.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram 0912-1 (Rear Window Defroster (Includes Heated Outer Mirror Information)

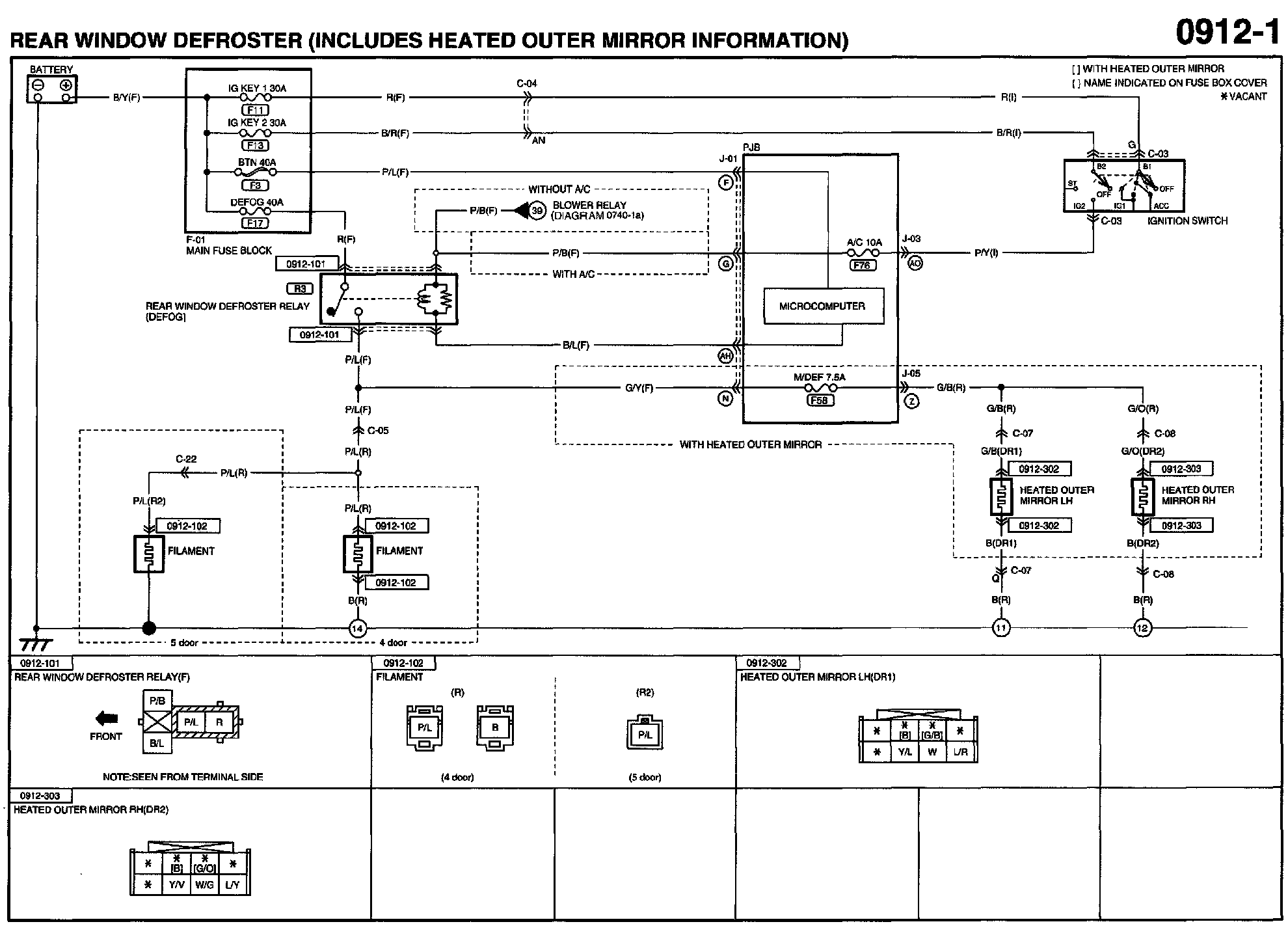

Diagram 0912-1 (Rear Window Defroster (Includes Heated Outer Mirror Information)

Diagram 0912-1:
