Diagram 0810-1b (Air Bag System (Includes Pre-Tensioner Seat Belt Information)
Diagram 0810-1b (Air Bag System (Includes Pre-Tensioner Seat Belt Information)

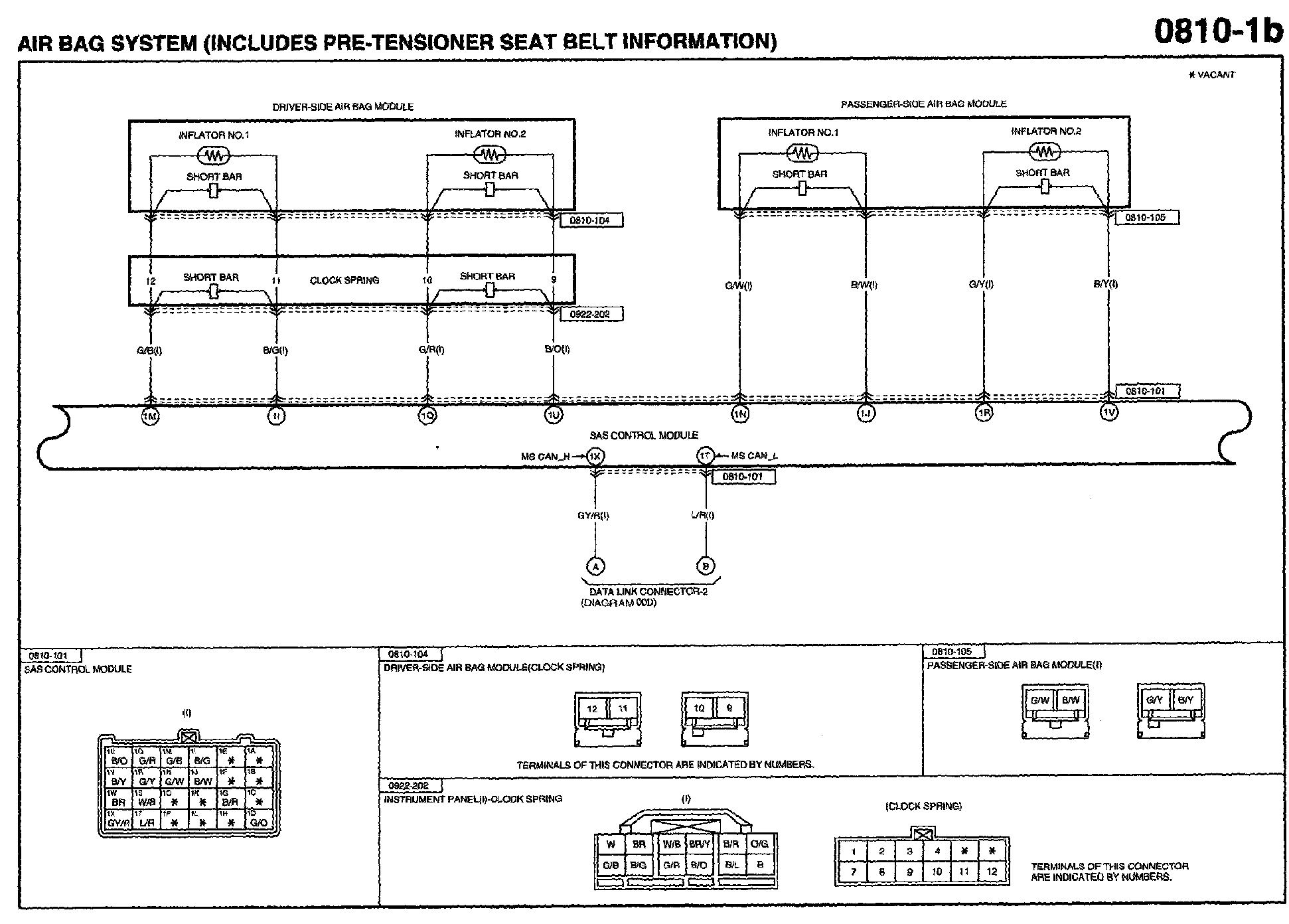

Diagram 0810-1b:
