Height Adjustment

Height Difference Adjustment










1. Turn the stop rubber to adjust the height of the hood.
2. Verify that the height difference between the hood and the body is within the specification.

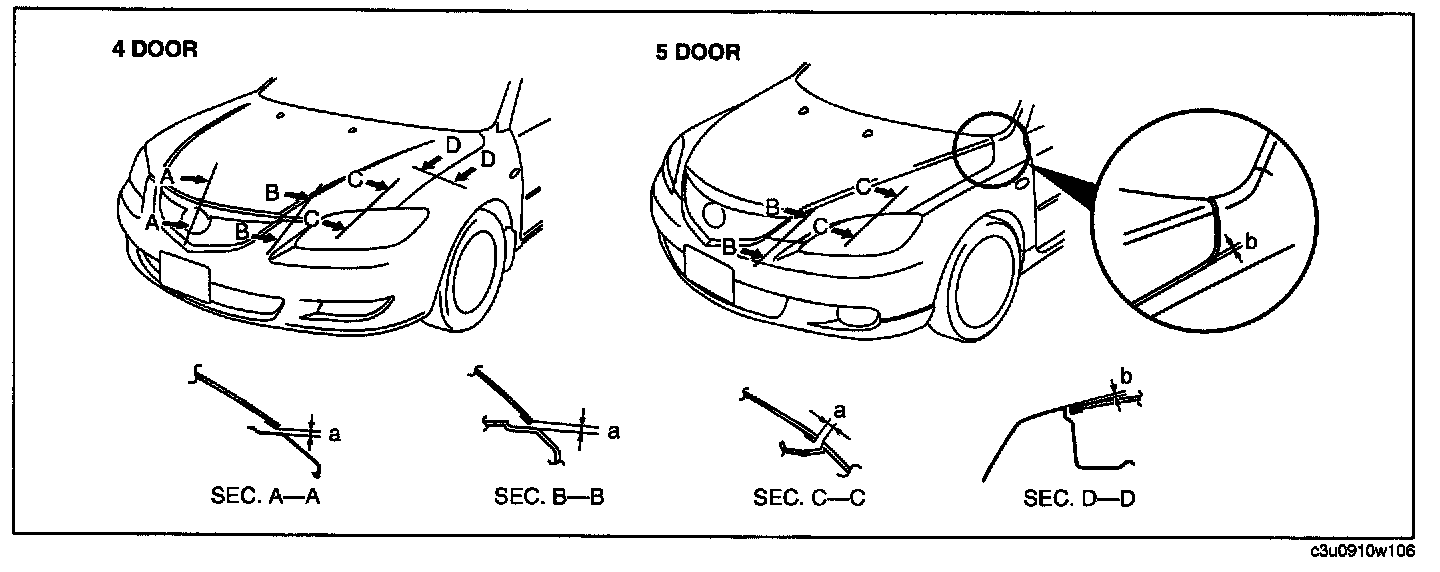

Standard clearance
a: 3.0-6.0 mm {0.12-0.23 in}
b: -1.5-0.5 mm {-0.0590-0.019 in}
