Component Locations

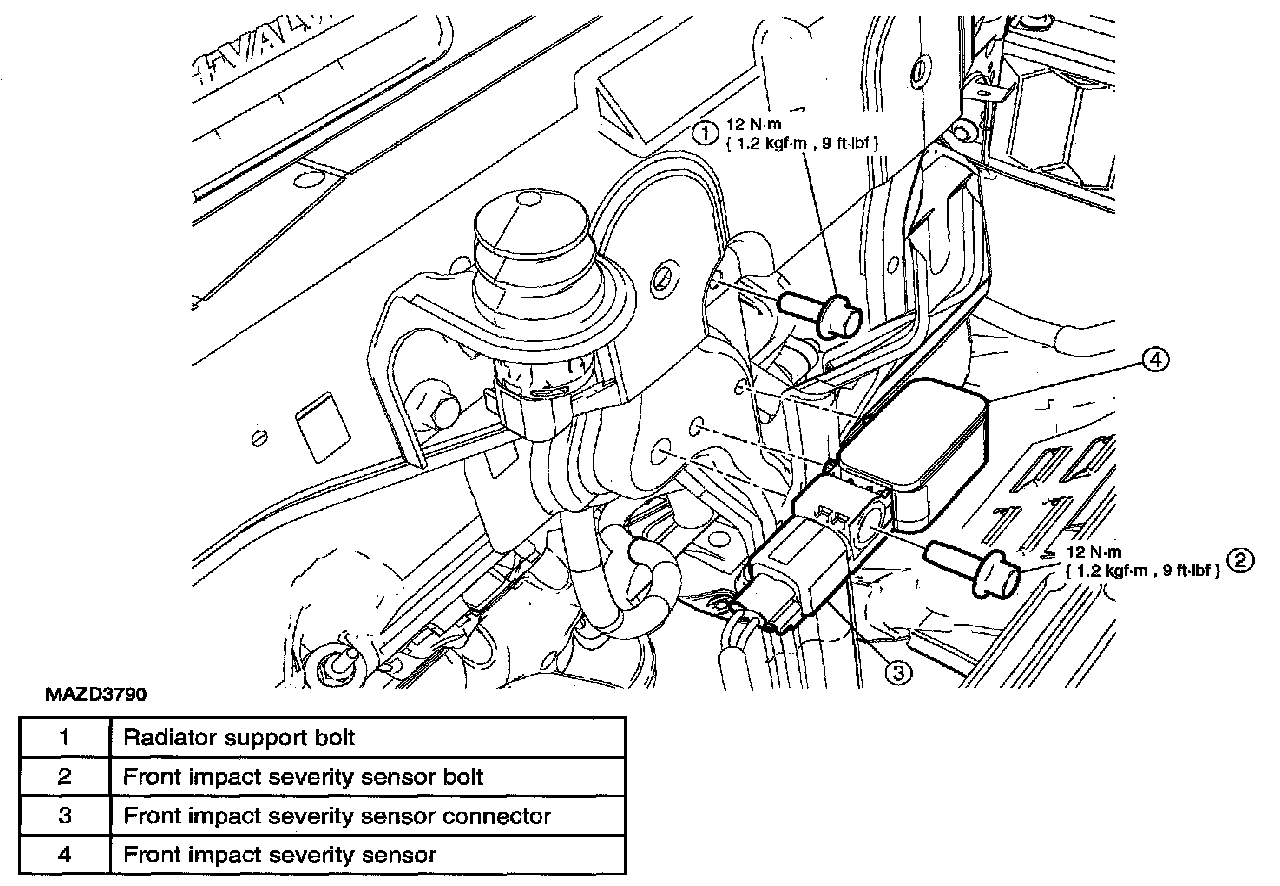

Front Impact Severity Sensor:

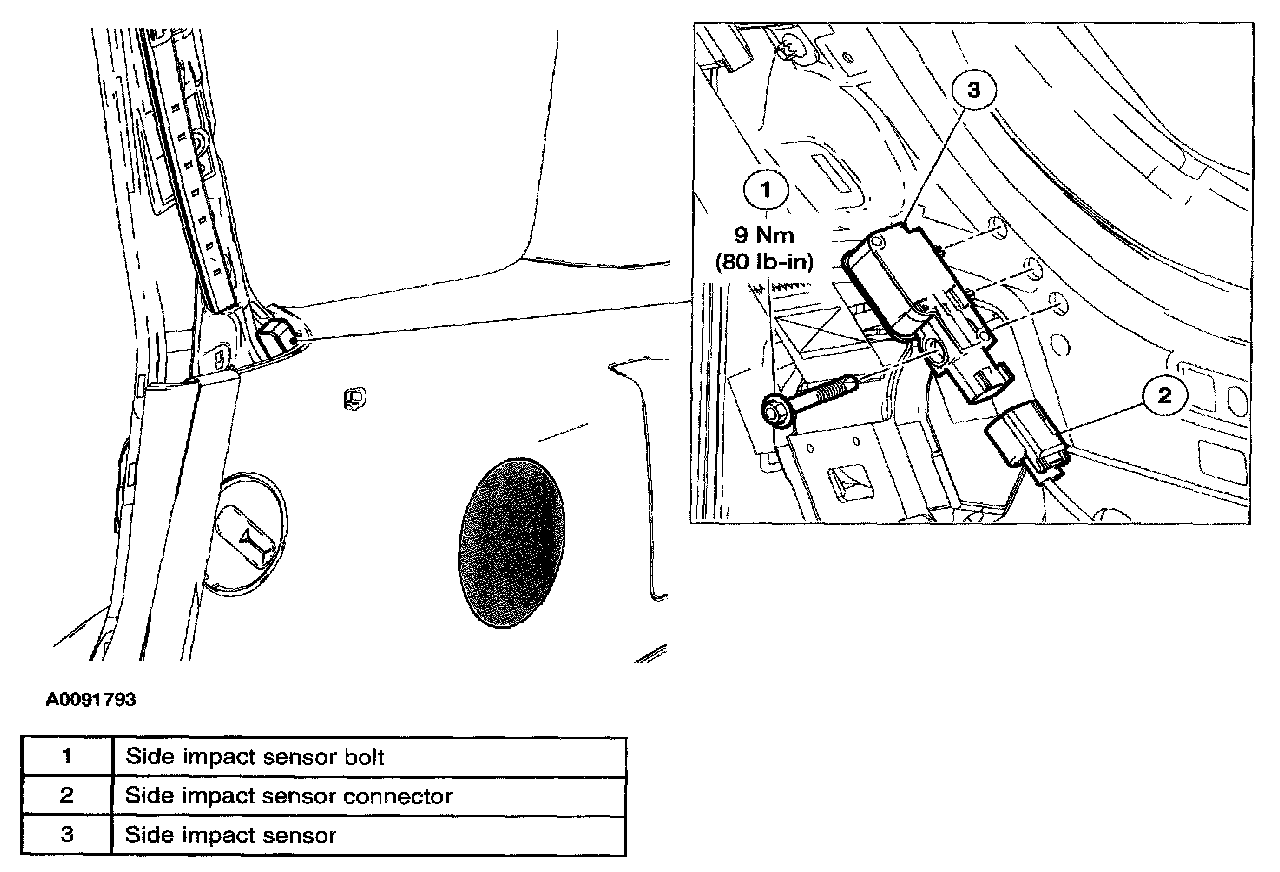

Side Impact Sensor - Driver Side:

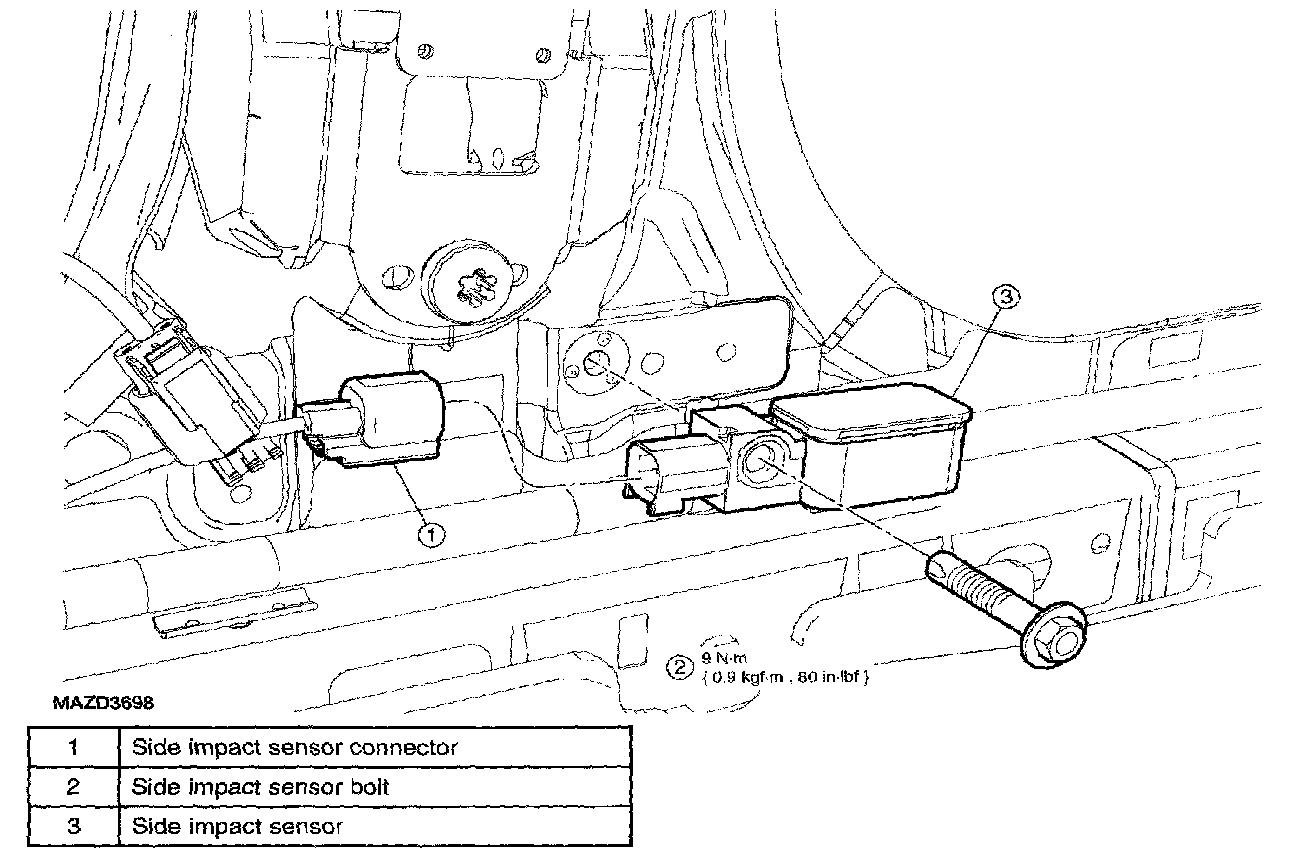

Side Impact Sensor - Passenger Side:
