Home >> Mazda >> 2005 >> Tribute 4WD L4-2.3L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Wheel Speed Sensor >> Locations

Wheel Speed Sensor: Locations

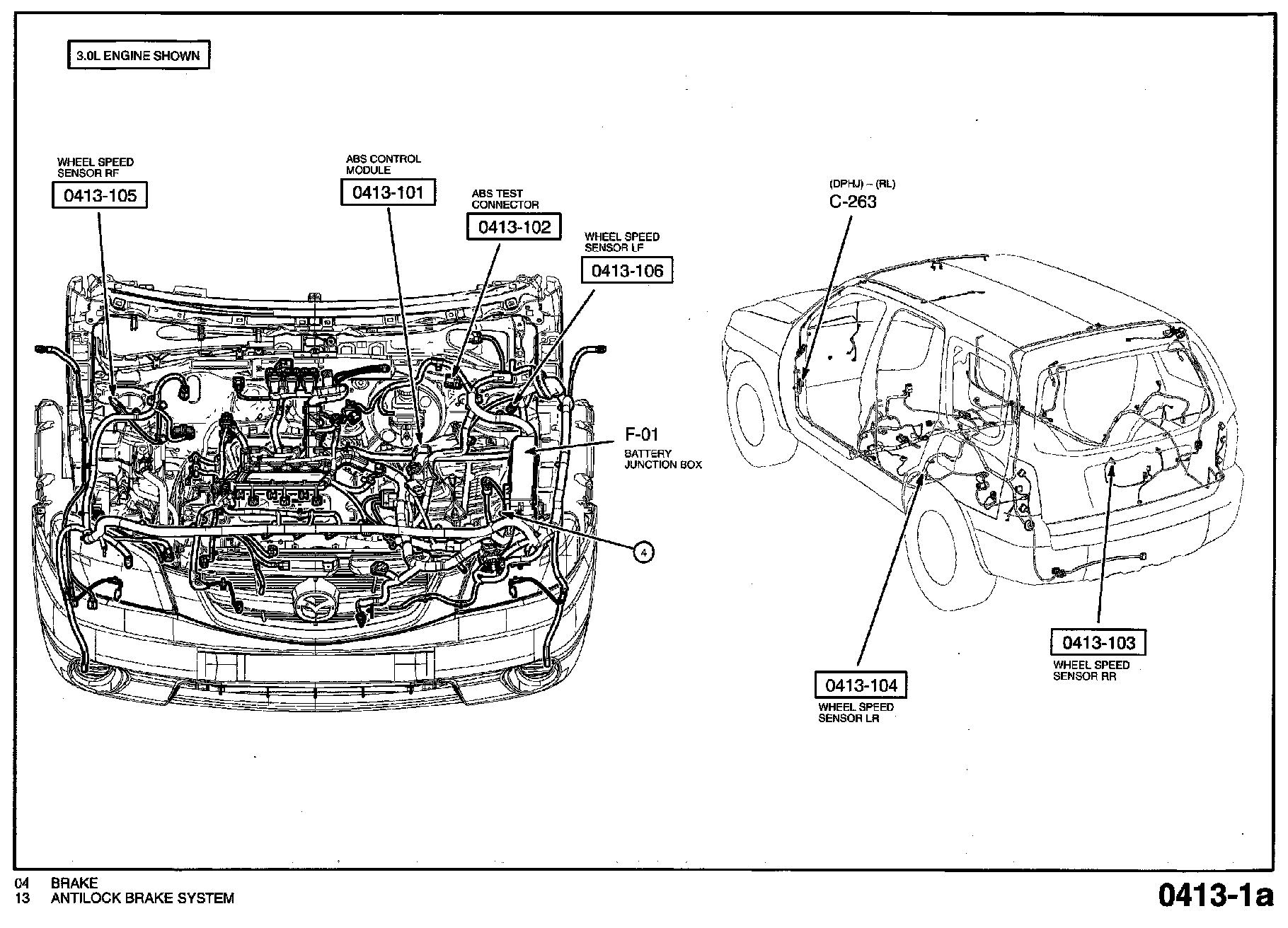

Routing View 0413-1a:
