Home >> Mazda >> 2005 >> Tribute 4WD L4-2.3L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Seat Temperature Switch >> Locations >> Seat Heater Switch, Driver Side

Seat Heater Switch, Driver Side

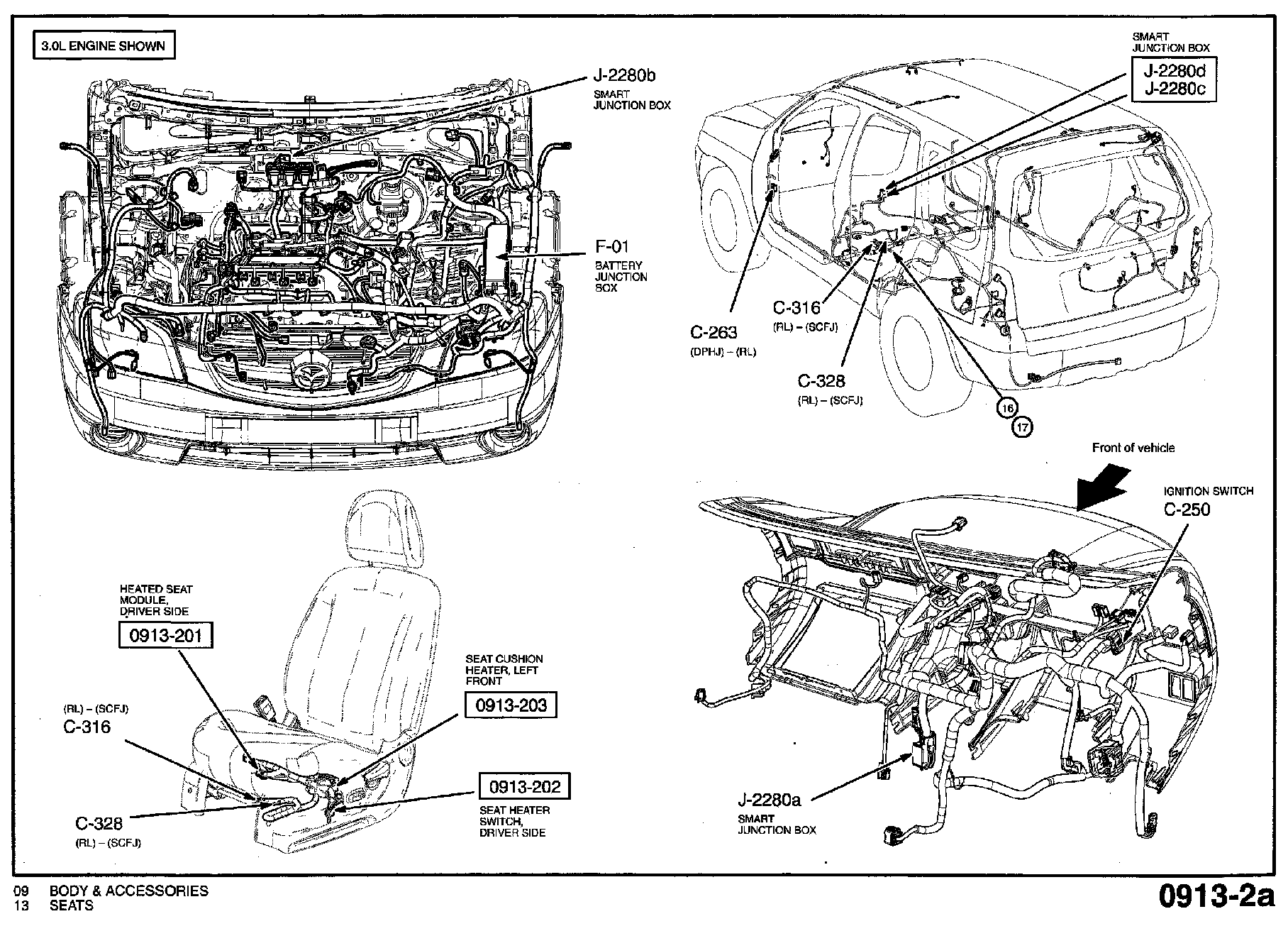

Routing View 0913-2a:
