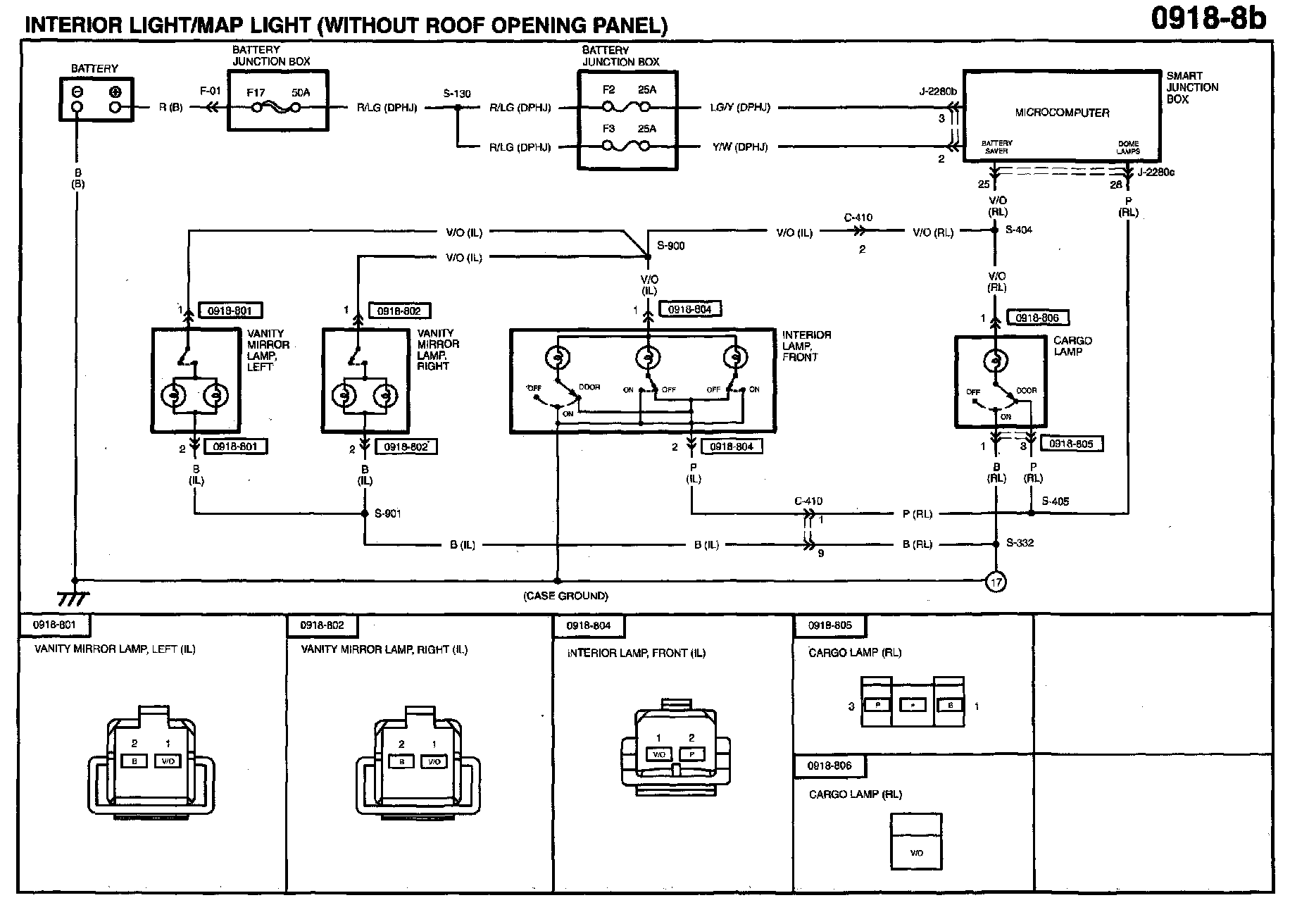

Diagram 0918-8b (Interior Light/MAP Light (Without Roof Opening Panel))
Diagram 0918-8b (Interior Light/MAP Light (Without Roof Opening Panel))
Diagram 0918-8b:
