Home >> Mazda >> 2005 >> Tribute 4WD L4-2.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram 0913-2a (Heated Seats)

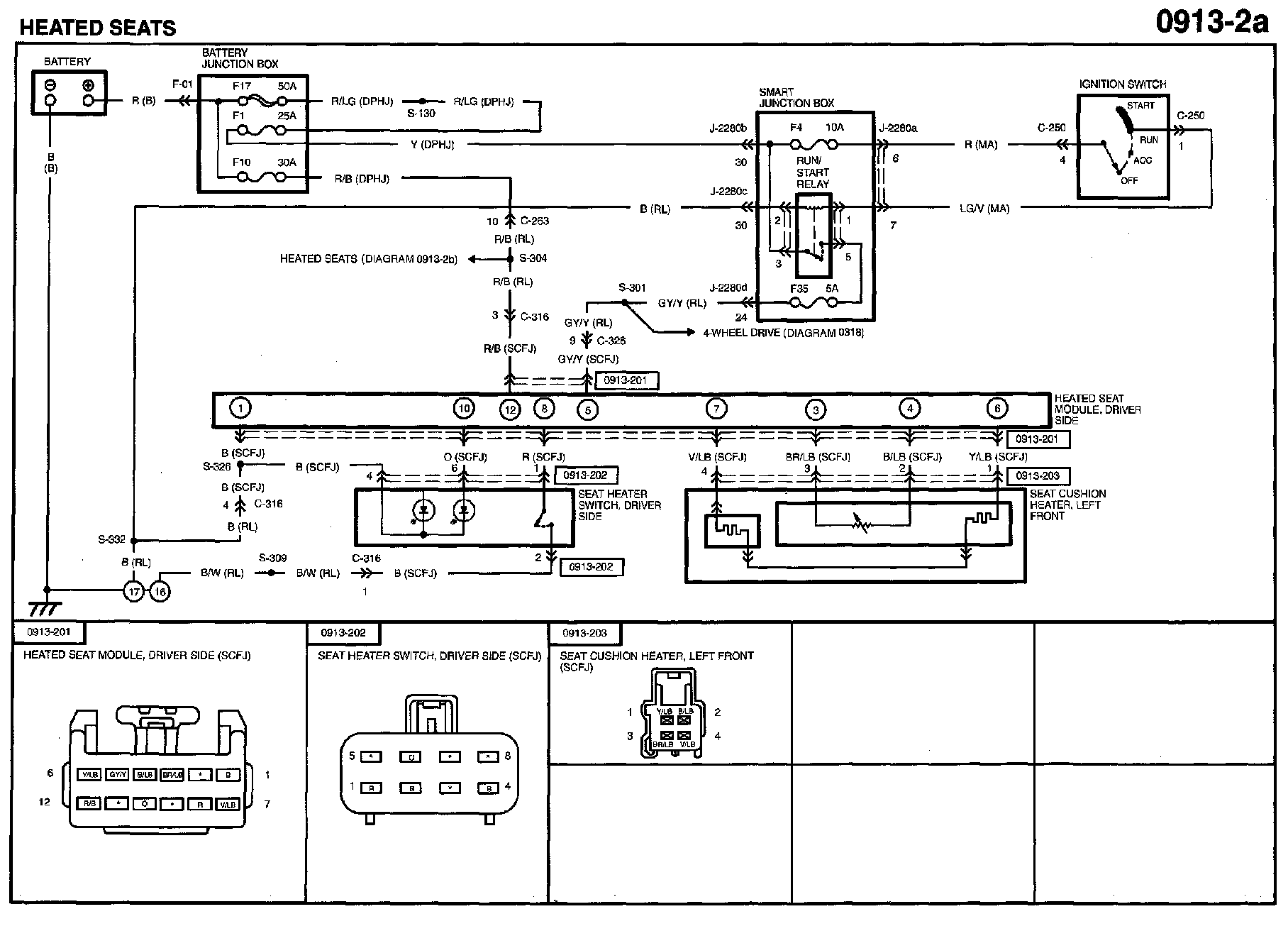

Diagram 0913-2a (Heated Seats)

Diagram 0913-2a:
