B Codes Indexed to AIr Bag Lamp Fault Codes

Diagnostic Trouble Codes (DTCs)

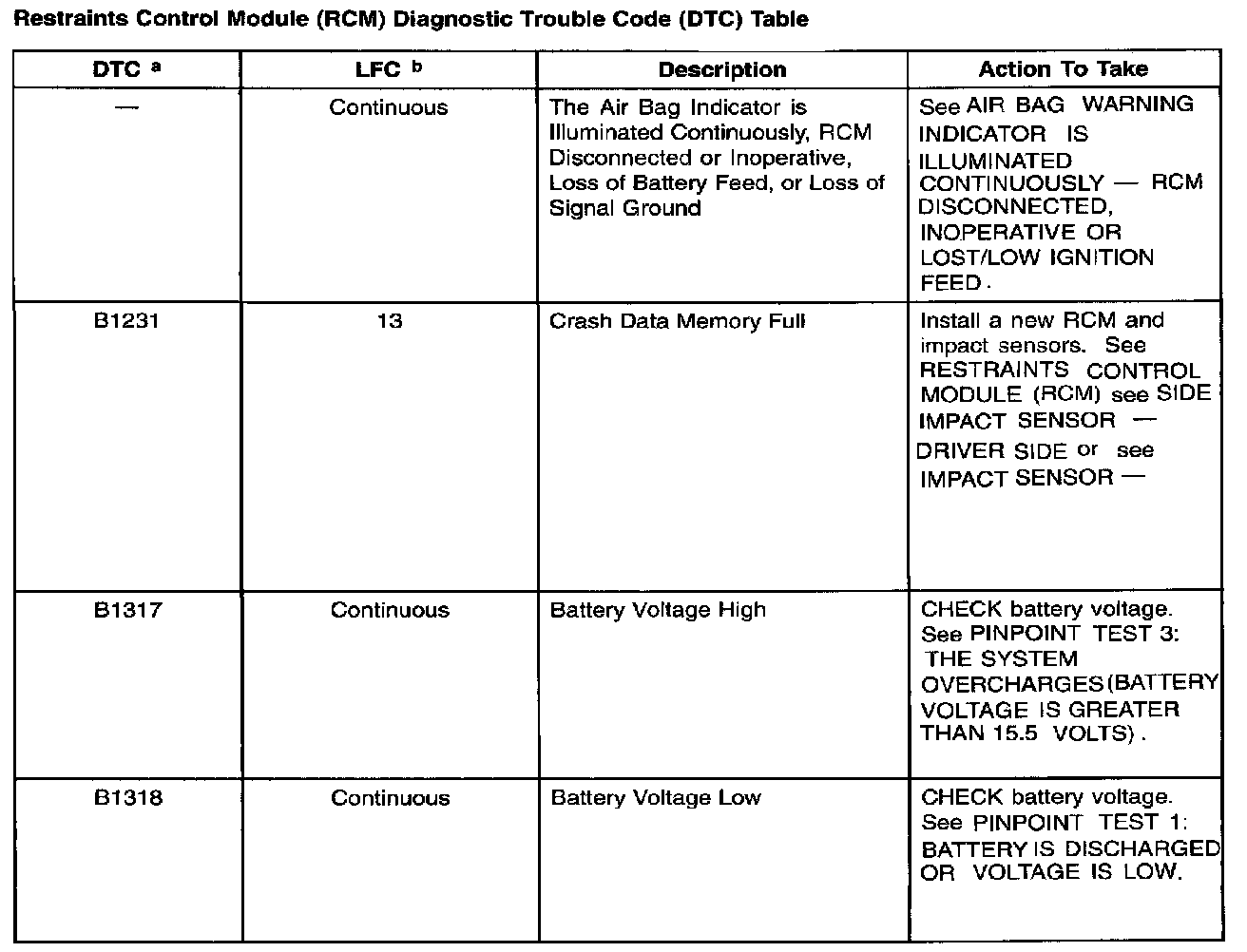

DTC B1231 - B1318:

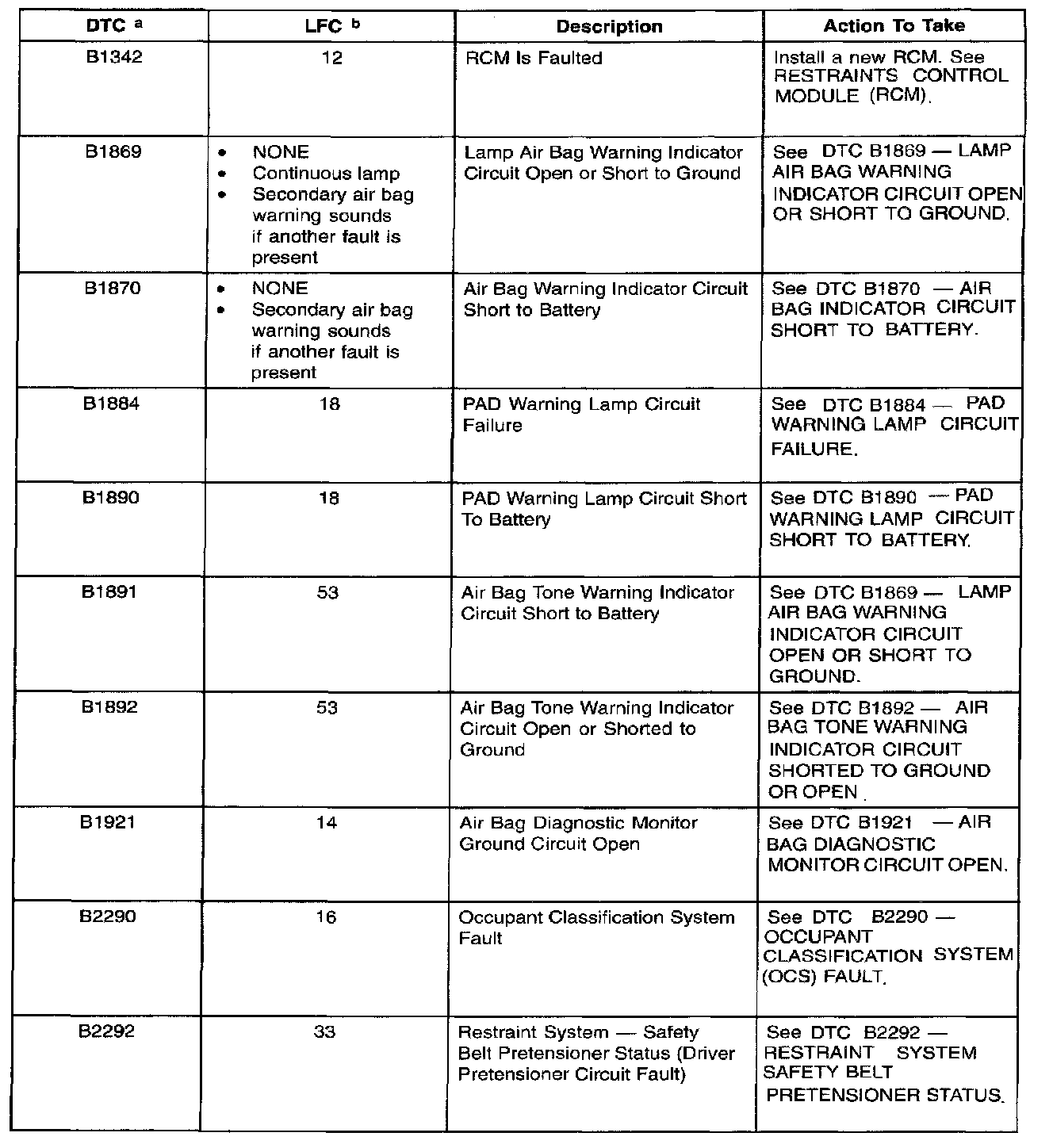

DTC B1342 - B2292:

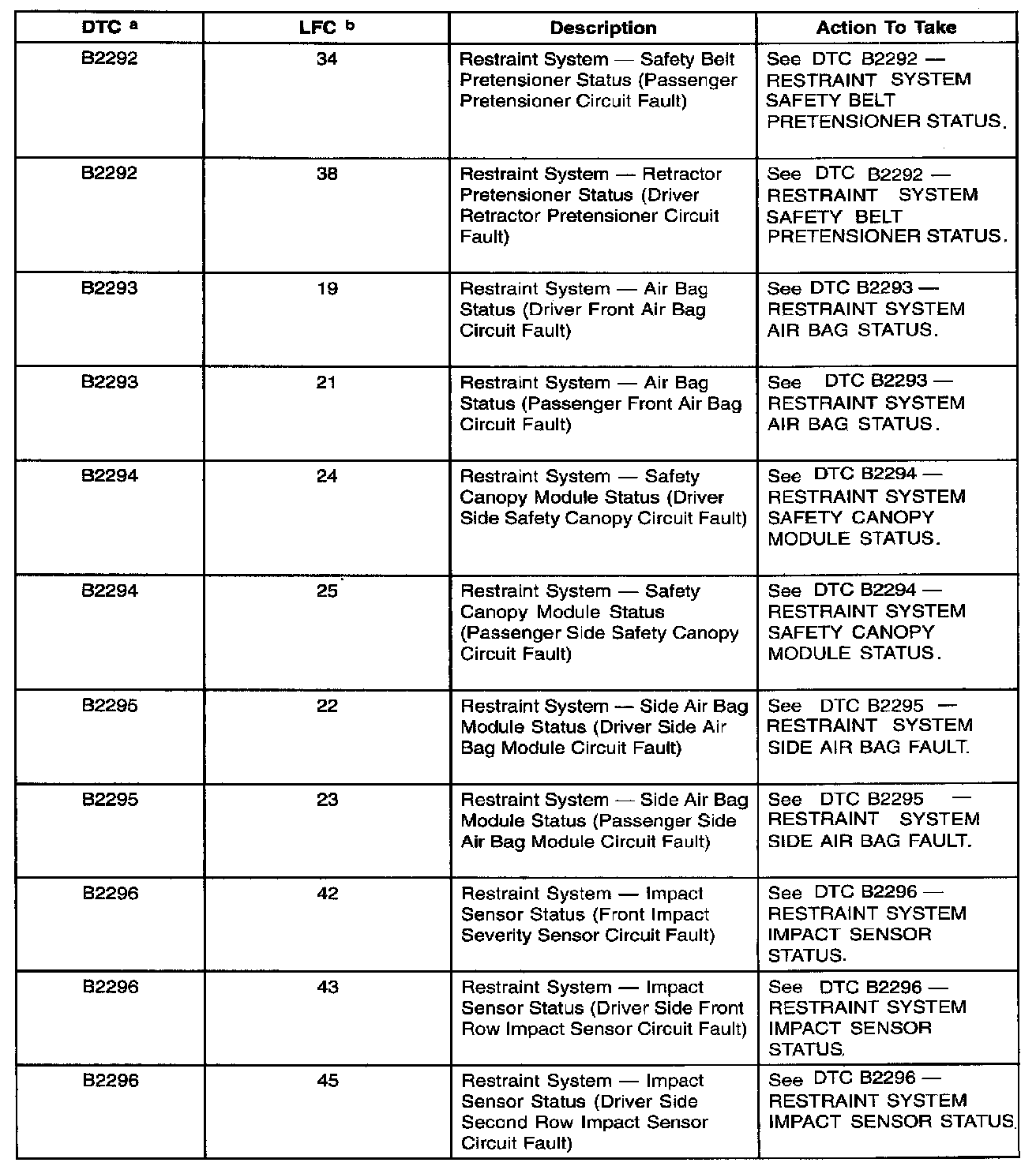

DTC B2292 - B2296:

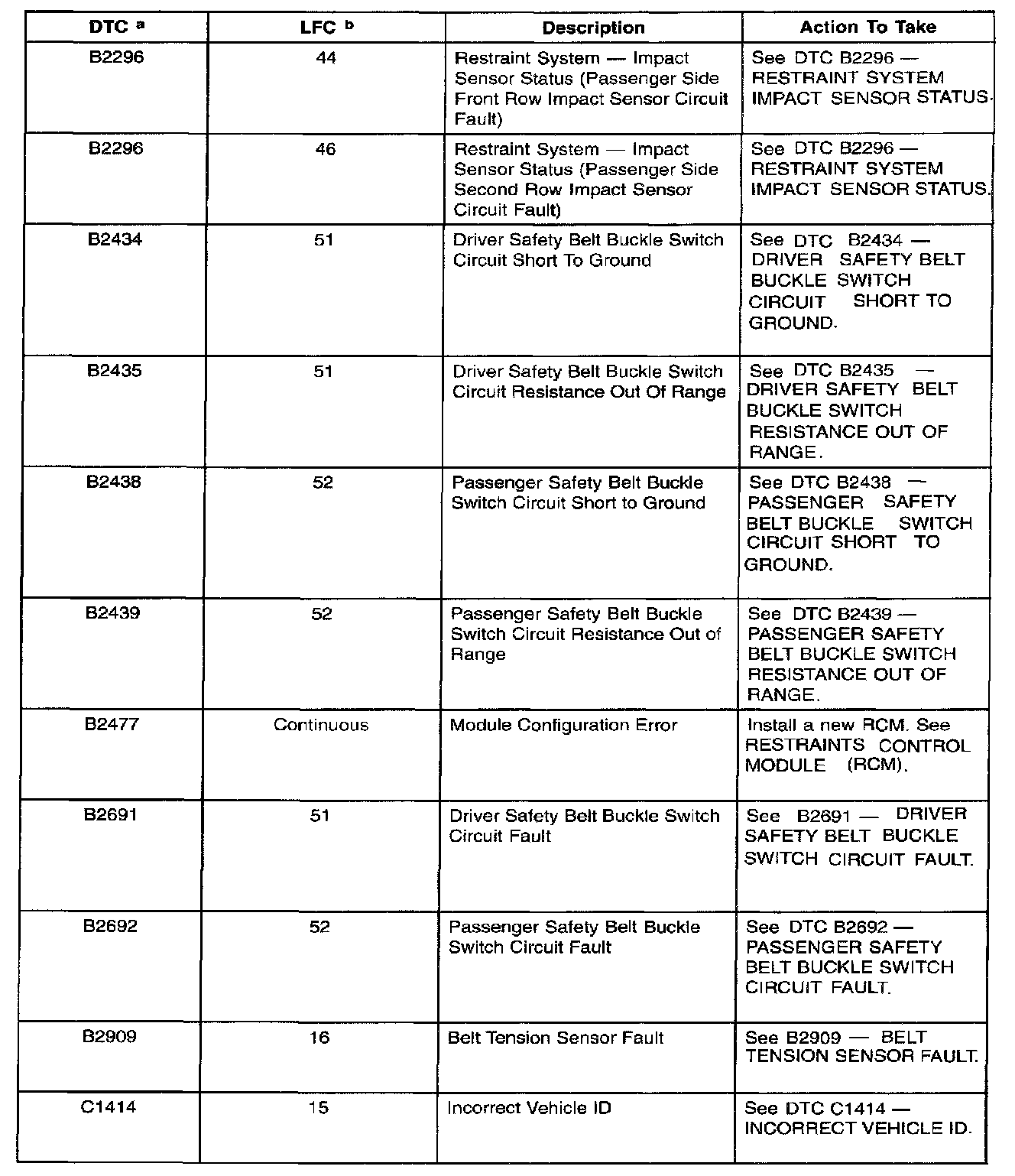

DTC B2296 - C1414:

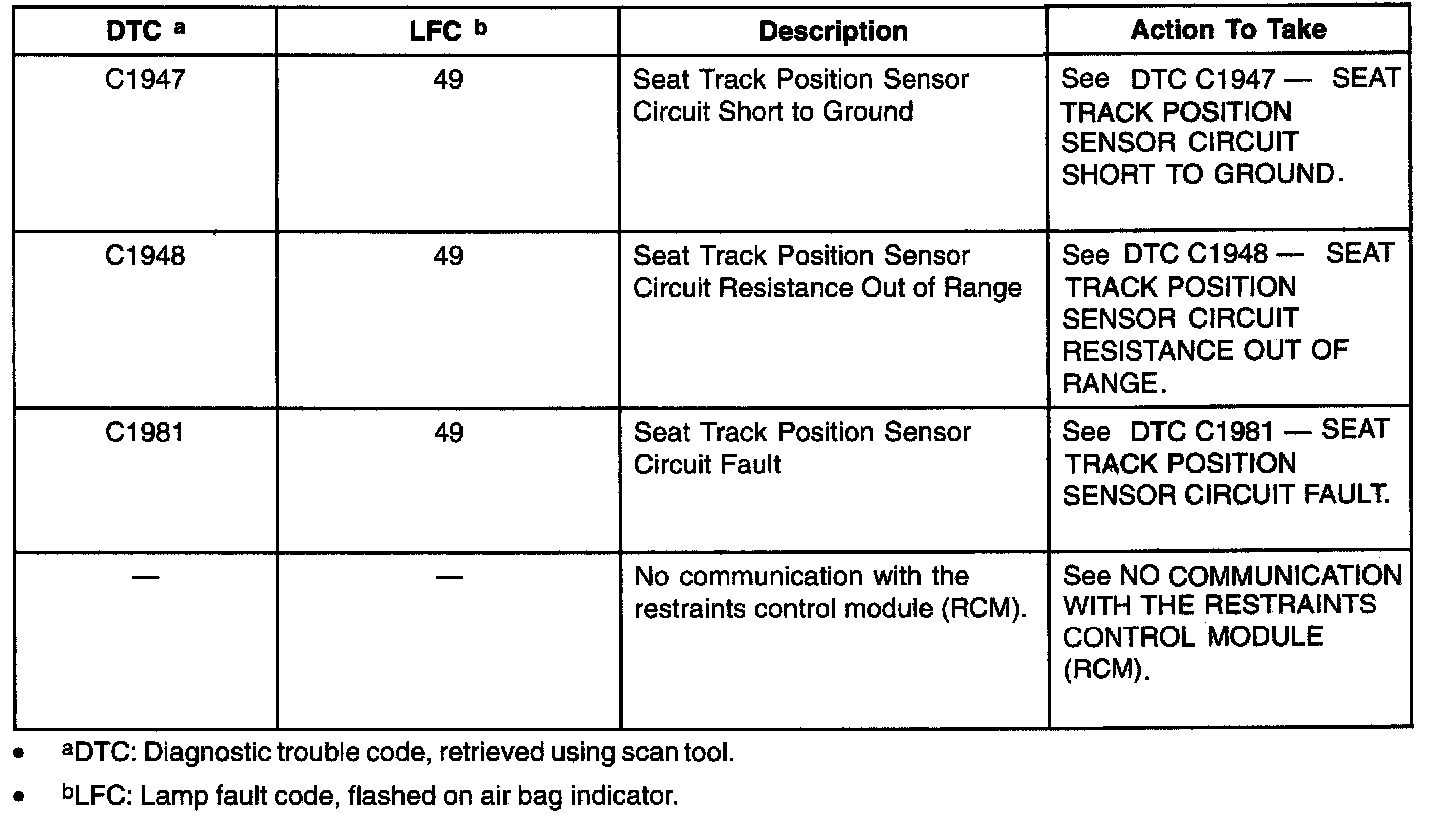

DTC C1947 - C1981:

While the lamp fault codes (LFCs) are an indication of a general concern in the passive restraints system, the diagnostic trouble codes (DTCs) are more specific. The DTCs can be retrieved from the restraints control module (RCM) with a scan tool via the data link connector (DLC).
