B1891

DTC B1891 - AIR BAG TONE WARNING INDICATOR CIRCUIT SHORT TO BATTERY

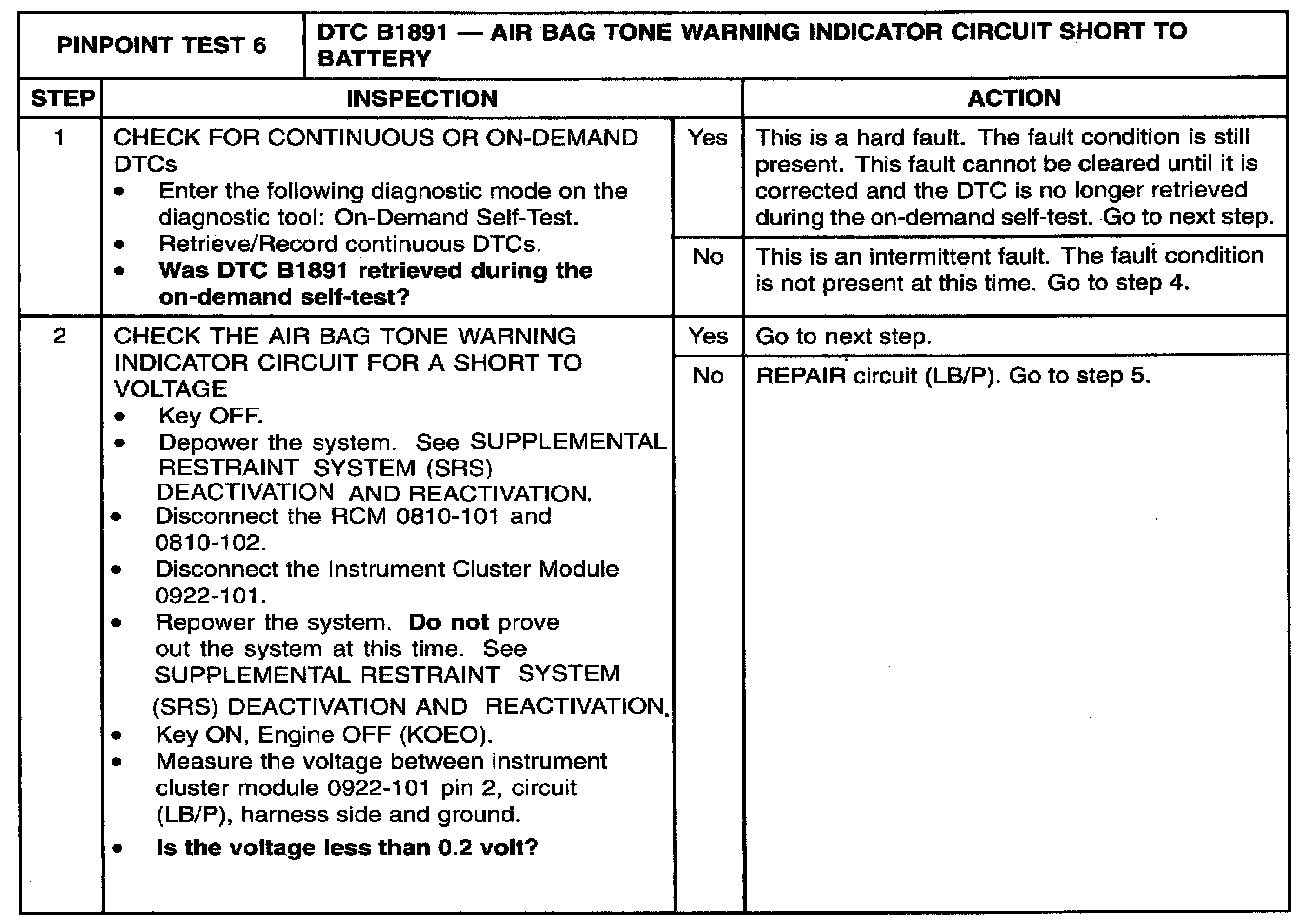

Step 1 - 2:

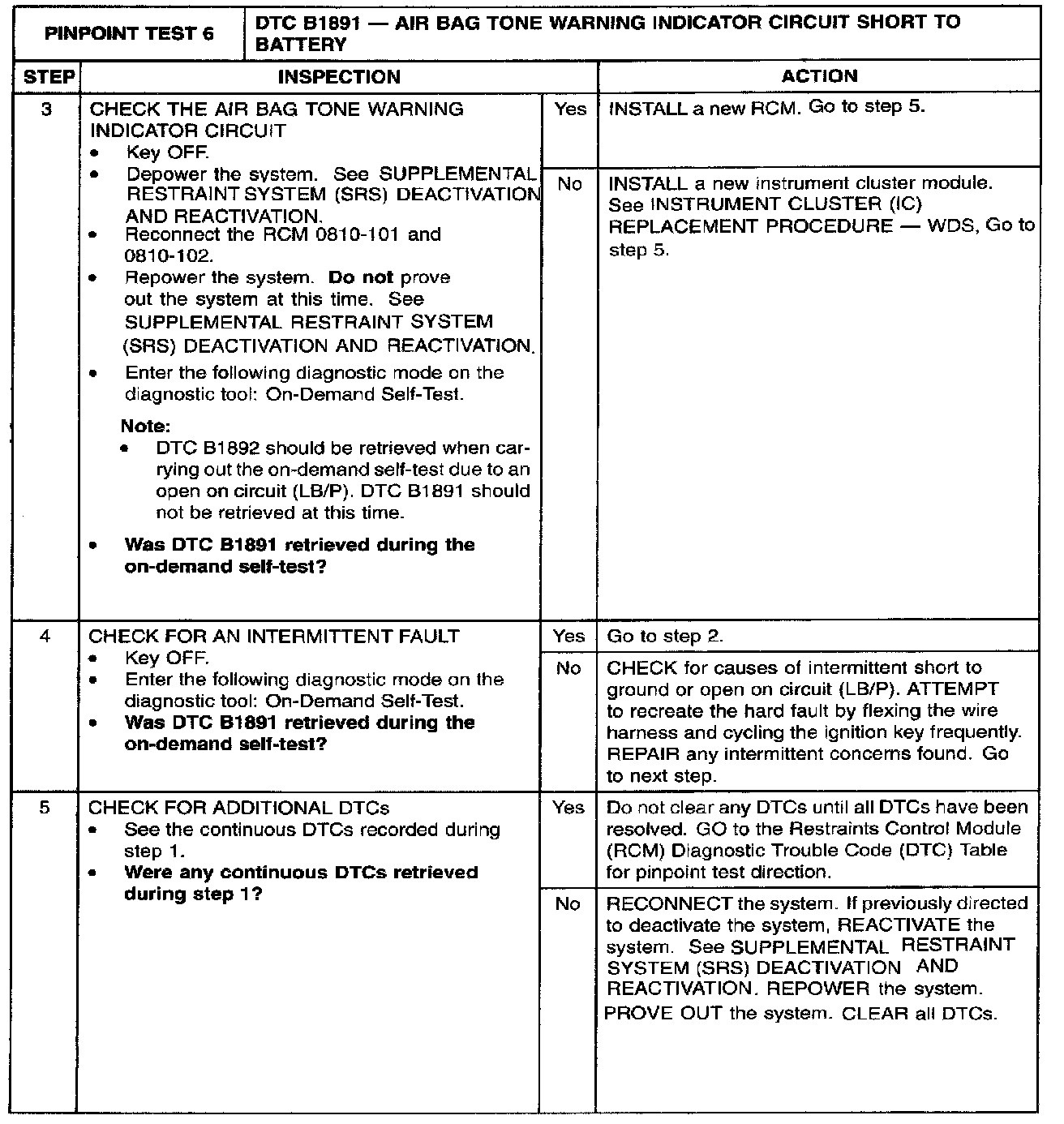

Step 3 - 5:

Normal Operation

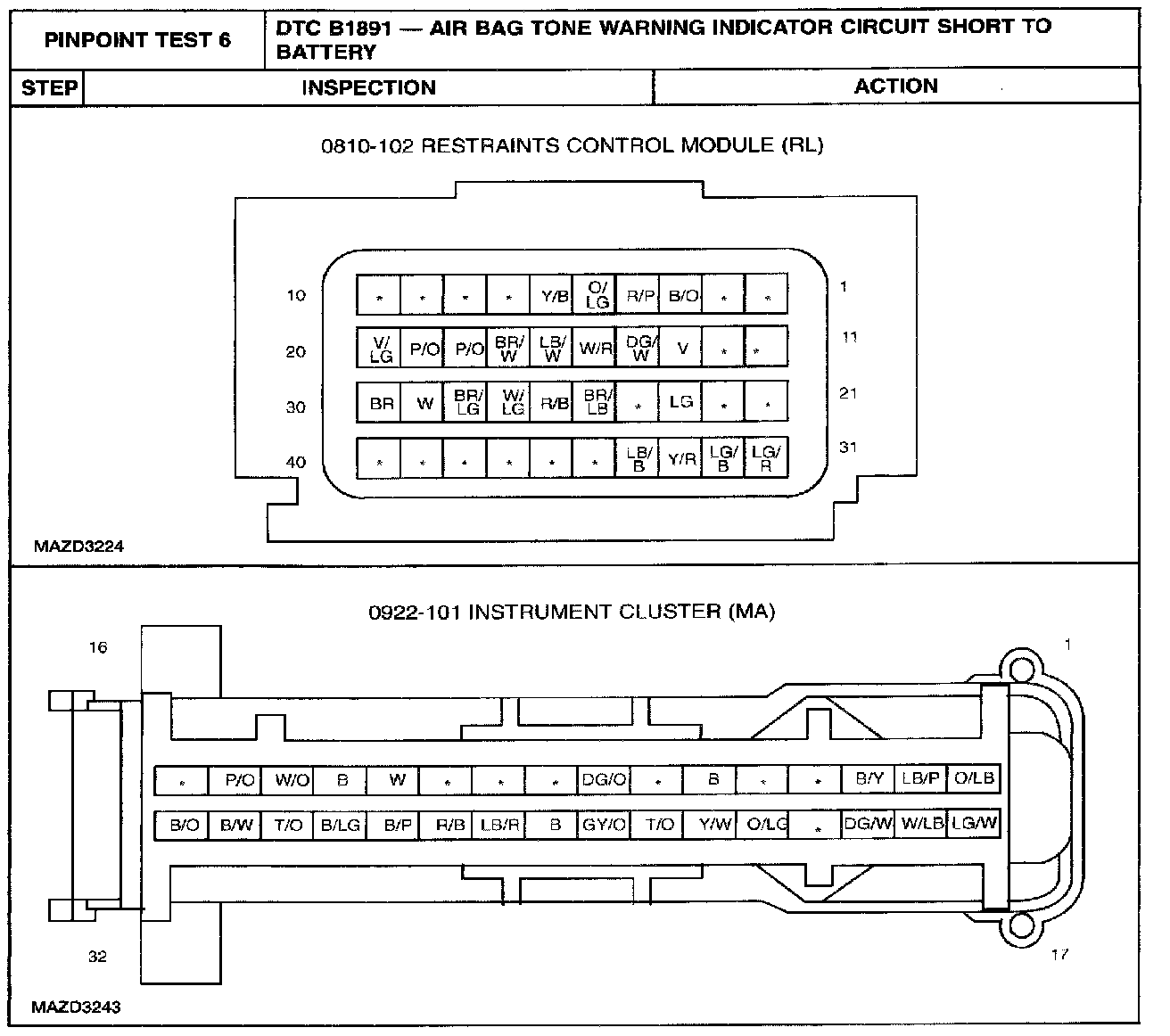

The restraints control module (RCM) monitors its connection to the instrument cluster module at 0810-101 pin 22. This connection is used to signal a chime if the air bag indicator is inoperative and another SRS fault exists. If the RCM detects a short to battery on the connection to the instrument cluster module, it will store diagnostic trouble code (DTC) B1891 in memory.

Possible Causes
An air bag tone warning indicator circuit short to battery or ignition can be caused by:
- damaged wiring, terminals or connectors.
- a damaged or inoperative instrument cluster module.
- RCM is faulted.

WARNING: Restraint system diagnostic tools are for service only. Tools must be removed prior to operating the vehicle over the road. Failure to remove restraint system diagnostic tools could result in injury and possible violation of vehicle safety standards.

WARNING: Do not handle, move or change the original horizontal mounting position of the restraints control module (RCM) while the RCM is connected and the ignition switch is ON. Failure to follow these instructions may result in the inadvertent deployment of the safety canopy and risk of personal injury.

WARNING: Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.

WARNING: The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe a pretensioner electrical connector. Doing so could result in pretensioner or air bag deployment and could result in personal Injury.

WARNING: Never probe the electrical connector on a safety canopy module. Doing so can result in safety canopy deployment and could result in personal injury.

NOTE: After diagnosing or repairing an SRS, the restraint system diagnostic tools must be removed before operating the vehicle over the road.

NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

NOTE: Most faults are due to connector and/or wiring concerns. Carry out a thorough Inspection and Verification before proceeding with the Pinpoint Test.
