Suspension Components Rear
Suspension Components Rear

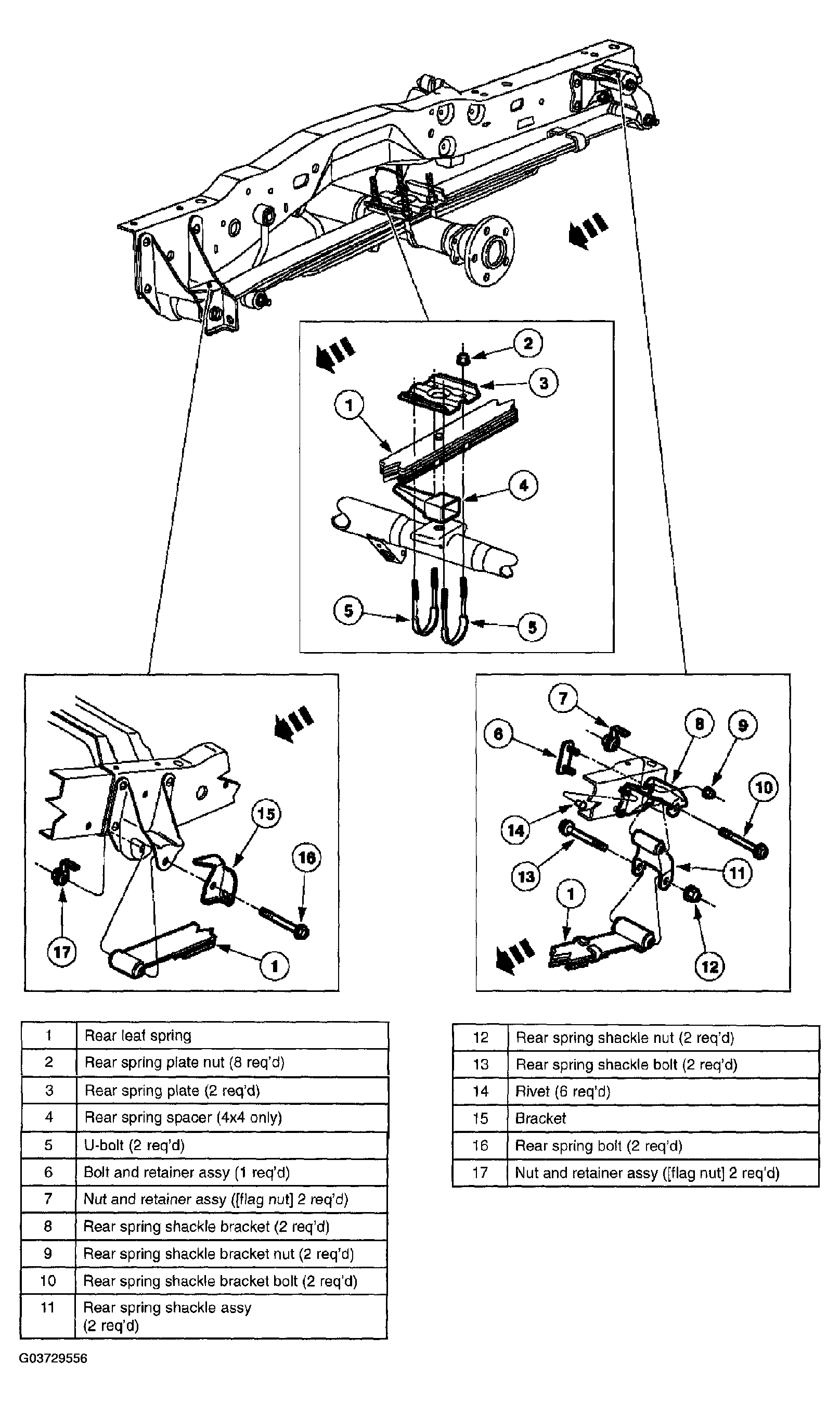

Fig 1: Identifying Suspension Rear Components (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

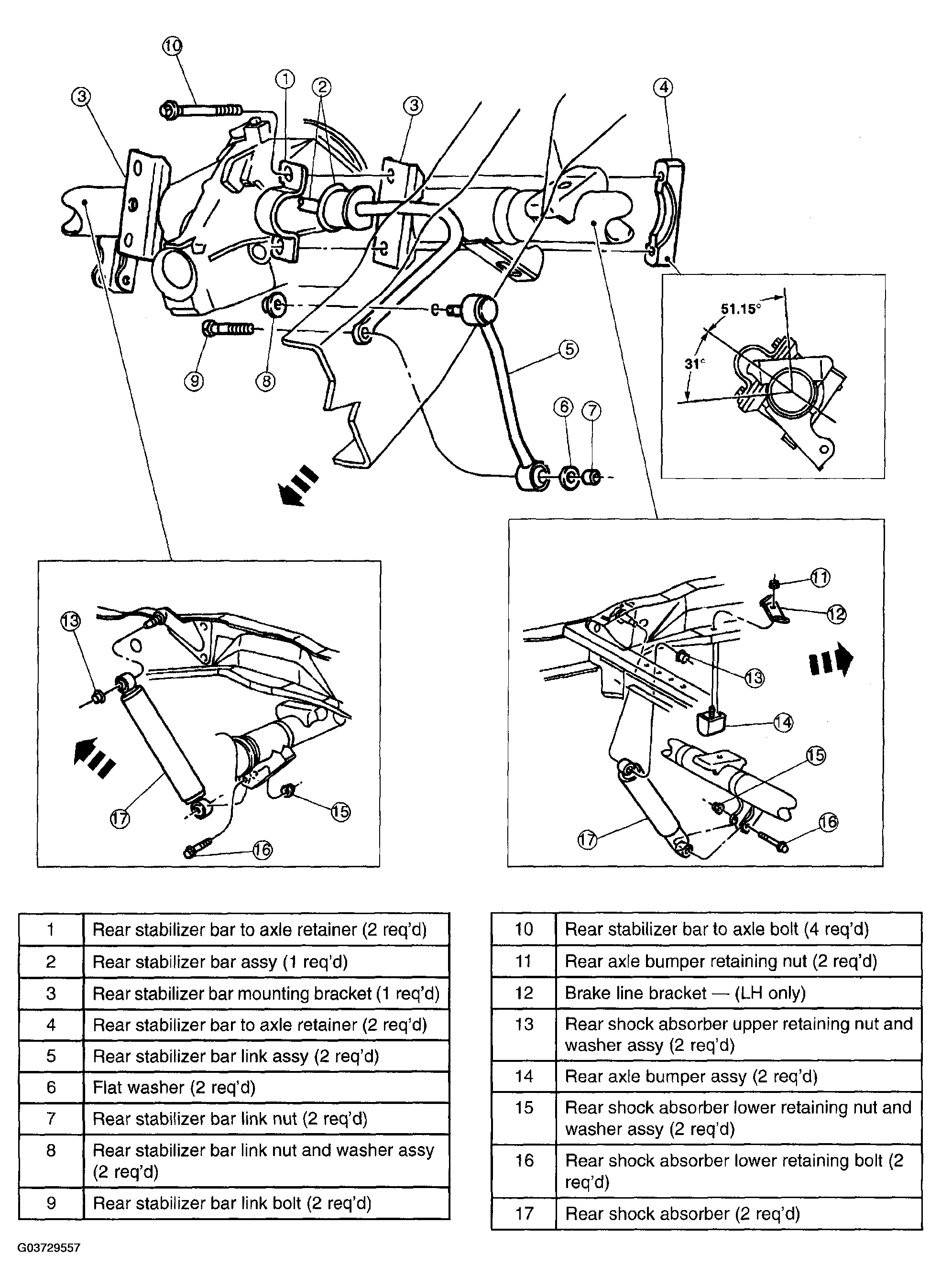

Fig 2: Identifying Suspension Rear Components (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
