Leaf Spring Rear Suspension Removal/Installation

Raise the vehicle and install safety stands; See LIFTING .
Remove the rear wheels; See WHEEL AND TIRE REMOVAL/INSTALLATION .
Use the Hi-Lift Jack to support the rear axle.

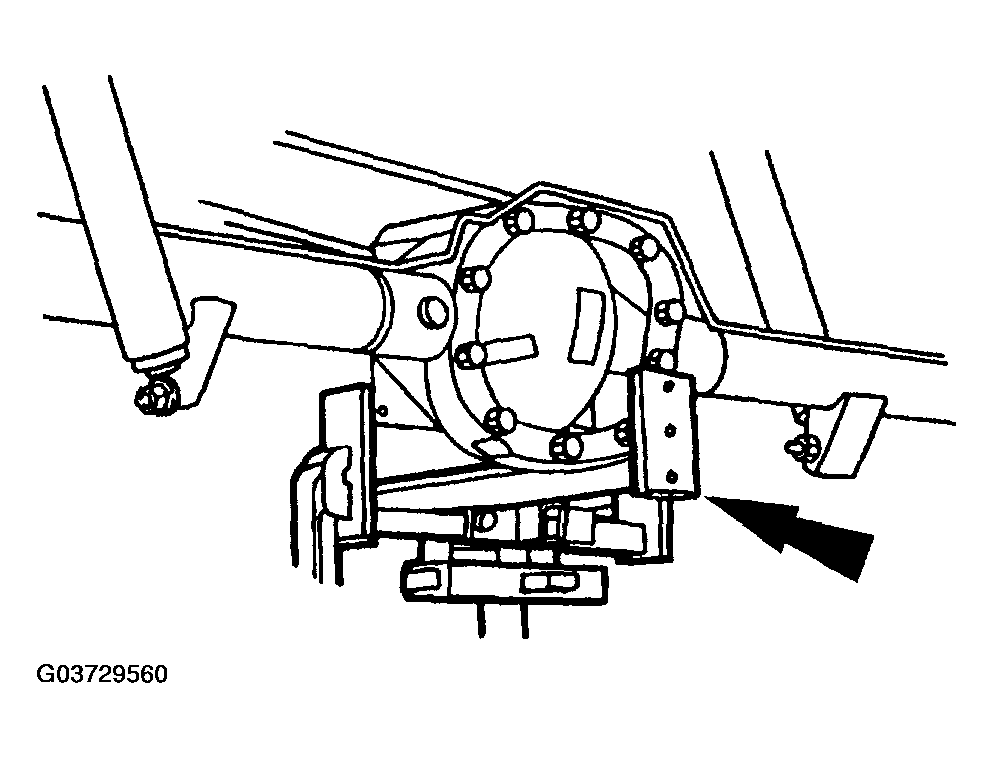

Fig 1: Supporting Rear Axle Using Hi-Lift Jack
Courtesy of MAZDA MOTORS CORP.
Remove the nuts, U-bolts and spring plate.
1. Carefully lower the rear axle and remove the rear spring spacer, if equipped.

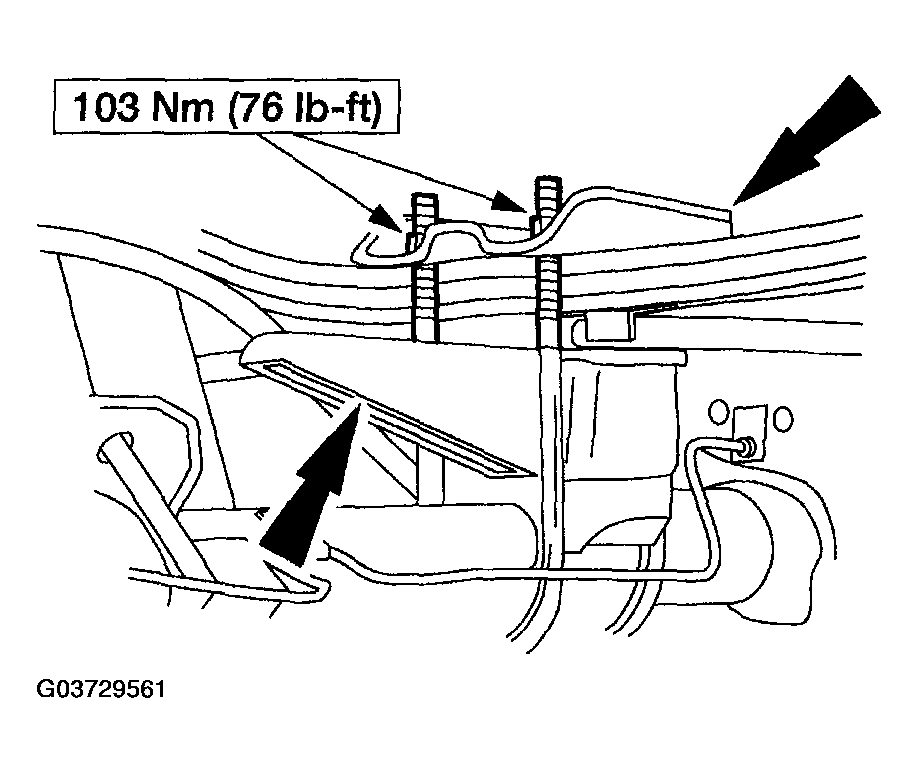

  Fig 2: Removing Nuts, U-Bolts And Spring Plate - With Torque Specification
  Courtesy of MAZDA MOTORS CORP.
Remove the nuts, bolts and the spring.

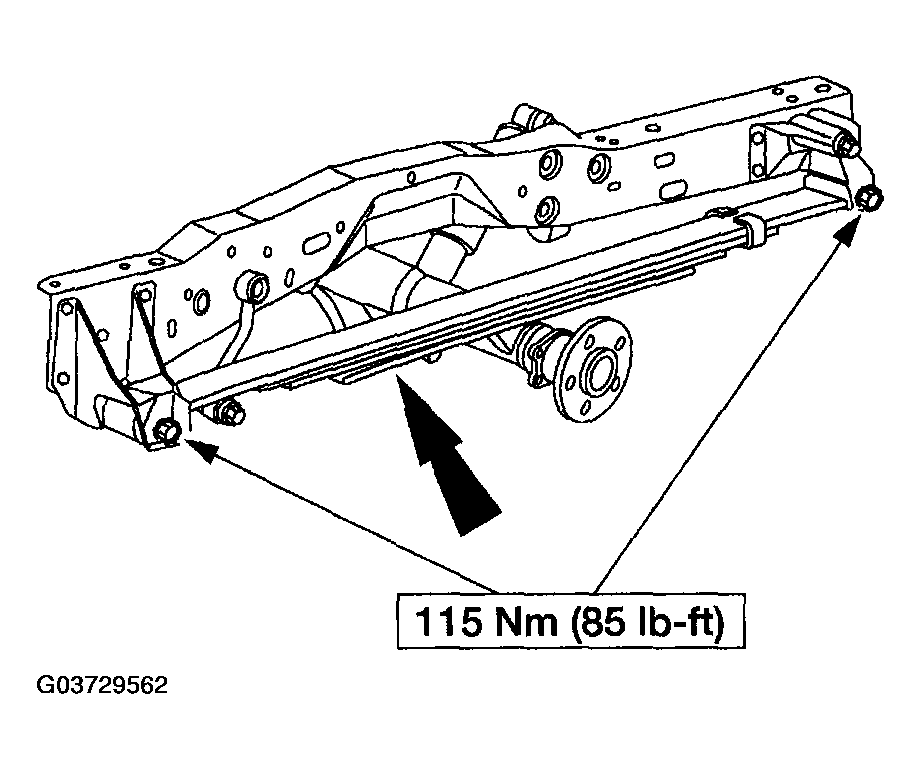

Fig 3: Removing Bolts - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
