A/C Manifold And Tube Assembly Removal/Installation - 3.0L

NOTE:
  • Replacement of the suction accumulator is not required when repairing the air conditioning system except when there is physical evidence of system contamination from a failed A/C compressor or damage to the suction accumulator.
  1. Disconnect the compressor manifold and tube assembly from the receiver/drier. See the Spring Lock Coupling Disconnect and Connect general procedure in A/C SPRING LOCK COUPLING .
    • Discard the O-ring seals.

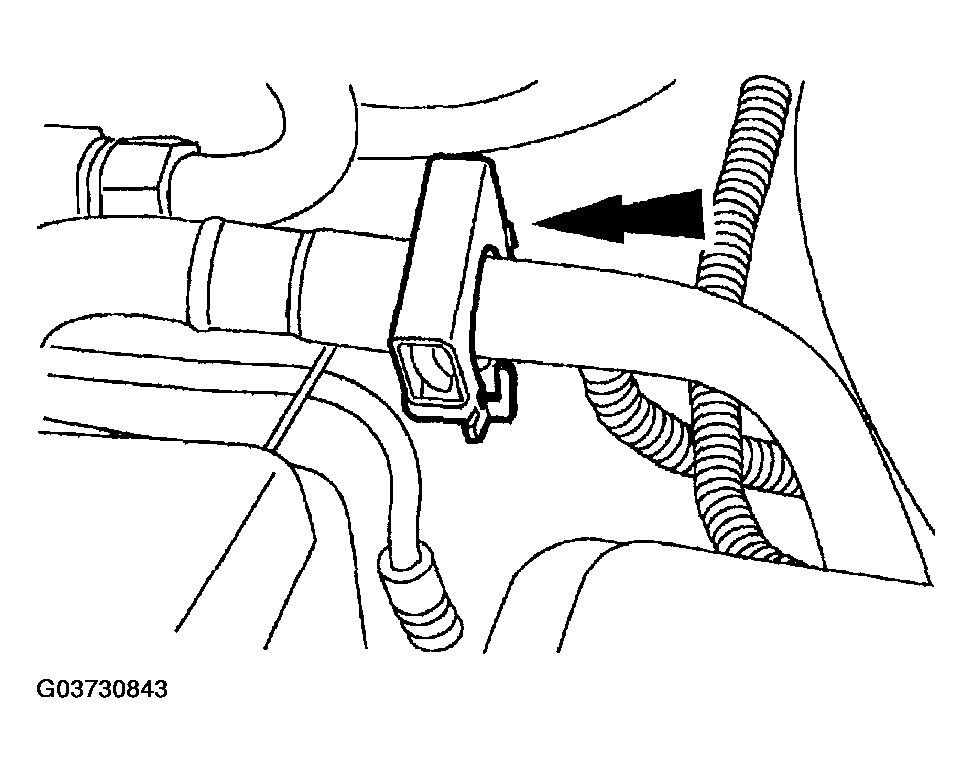

      Fig 1: Disconnecting Compressor Manifold And Tube Assembly From Receiver/Drier
      G03730843Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the compressor manifold and tube assembly from the condenser core.
    • Discard the O-ring seals.

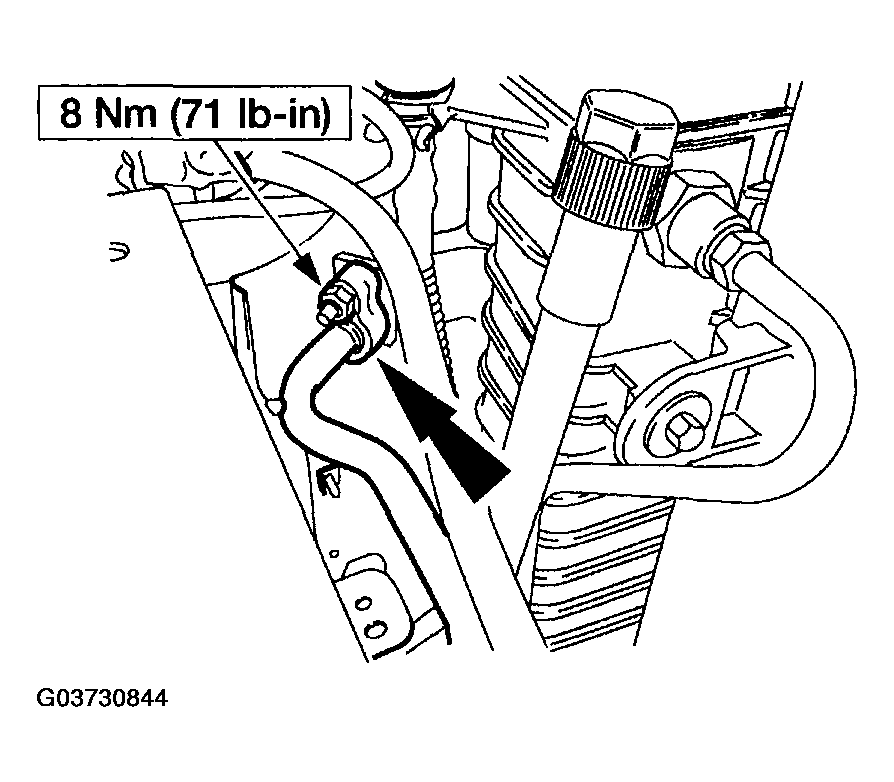

      Fig 2: Disconnecting Compressor Manifold And Tube Assembly From Condenser Core
      G03730844Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the A/C pressure cut-off switch connector.

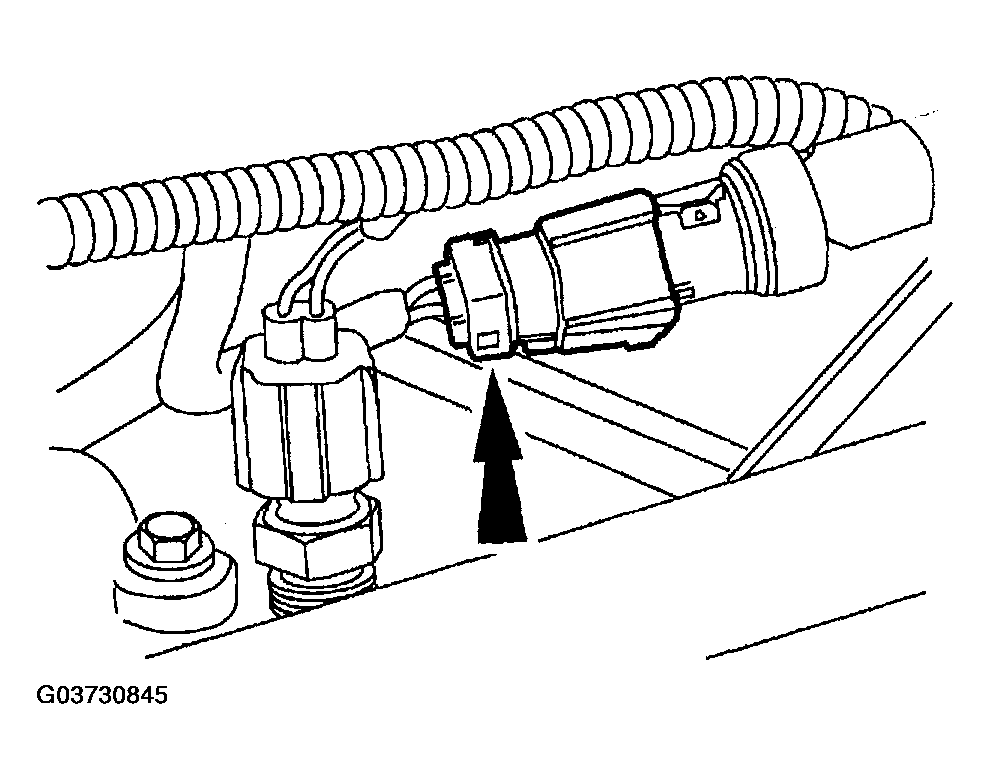

    Fig 3: Disconnecting A/C Pressure Cut-Off Switch Connector
    G03730845Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the fuel line spring lock coupling; see SPRING LOCK COUPLINGS .

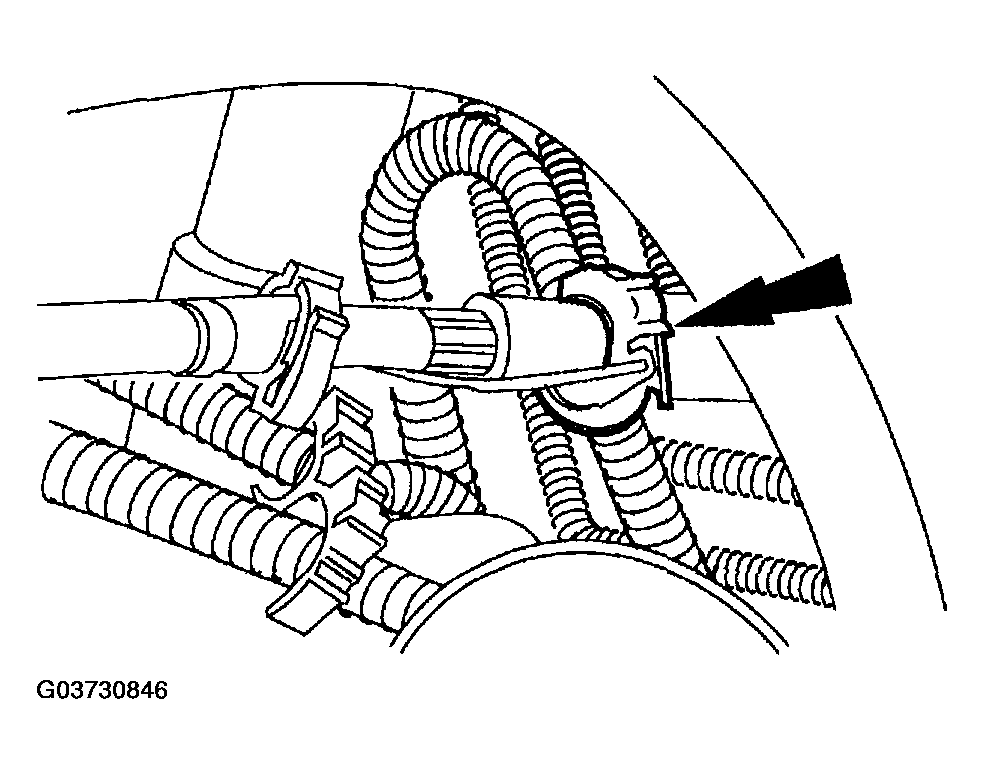

    Fig 4: Disconnecting Fuel Line Spring Lock Coupling
    G03730846Courtesy of MAZDA MOTORS CORP.
  5. Remove the nut and reposition the bracket.

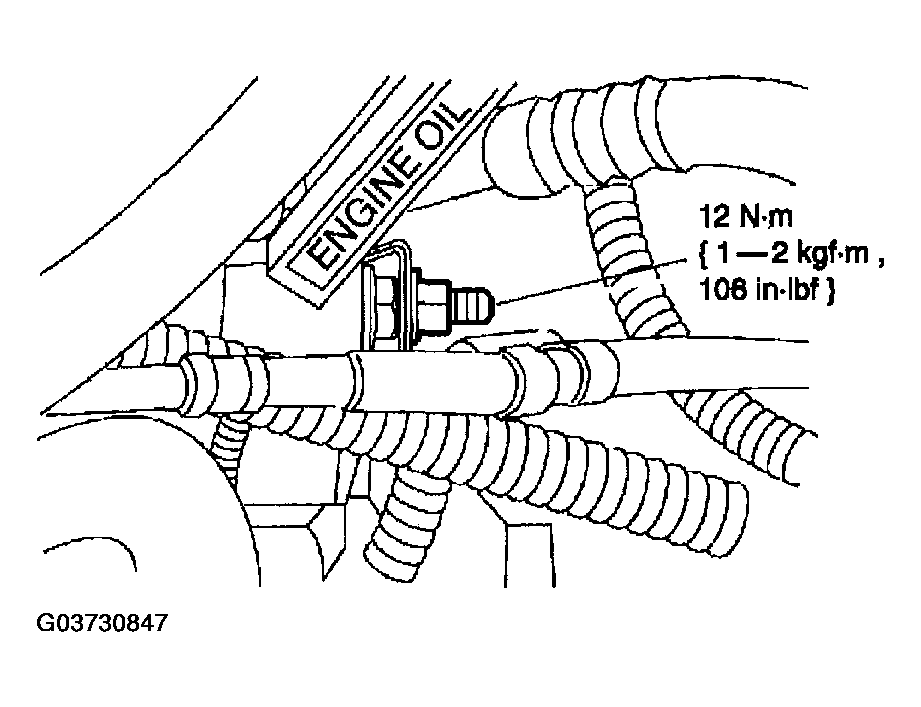

    Fig 5: Removing Nut - With Torque Specification
    G03730847Courtesy of MAZDA MOTORS CORP.
  6. Loosen the bolt and remove the compressor manifold and tube assembly.
    • Discard the O-ring seals

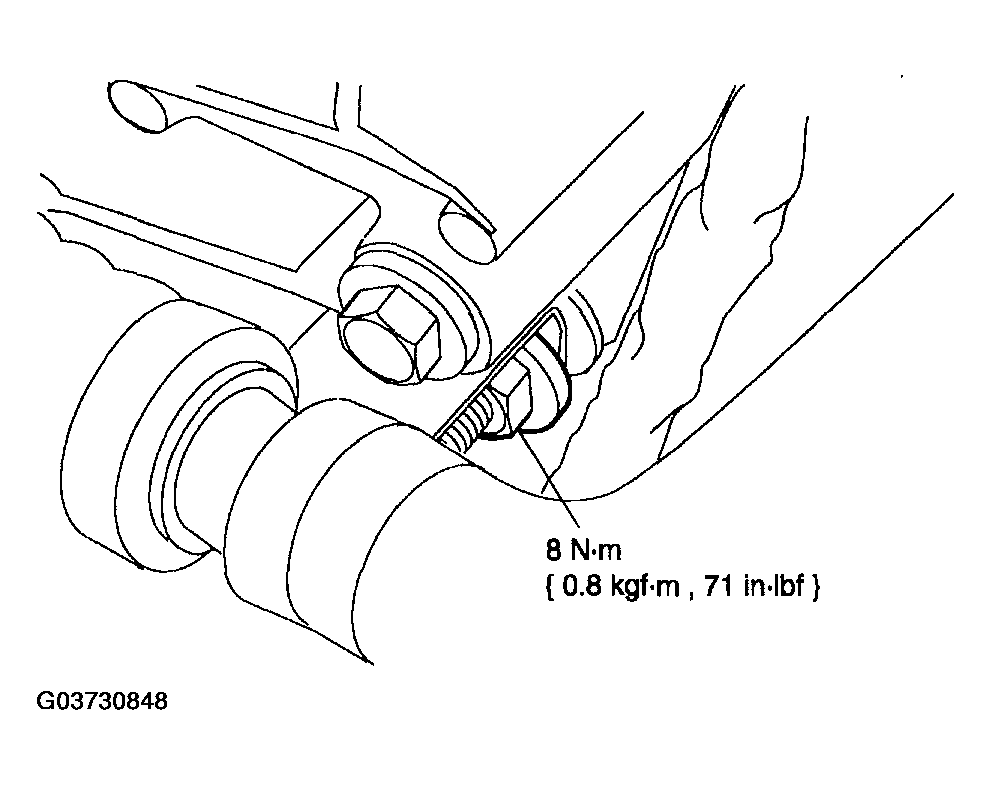

      Fig 6: Loosening Bolt - With Torque Specification
      G03730848Courtesy of MAZDA MOTORS CORP.
  7. To install, reverse the removal procedure.
    • If a new compressor manifold and tube assembly is to be installed, transfer the pressure cutoff switch to the new compressor manifold and tube assembly.
    • Lubricate the refrigerant system with the correct amount of clean refrigerant oil. See A/C REFRIGERANT OIL ADDITION .
  8. Evacuate, leak test, and charge the refrigerant system. See A/C REFRIGERANT SYSTEM TESTS .
