Manual Transmission Shift Lever And Boot Removal/Installation

WARNING: This page is about a different variant/trim than selected.

Raise the outer gearshift lever boot and console assembly to access the nut and eccentric stud that retains the upper gearshift lever to the lower gearshift lever.

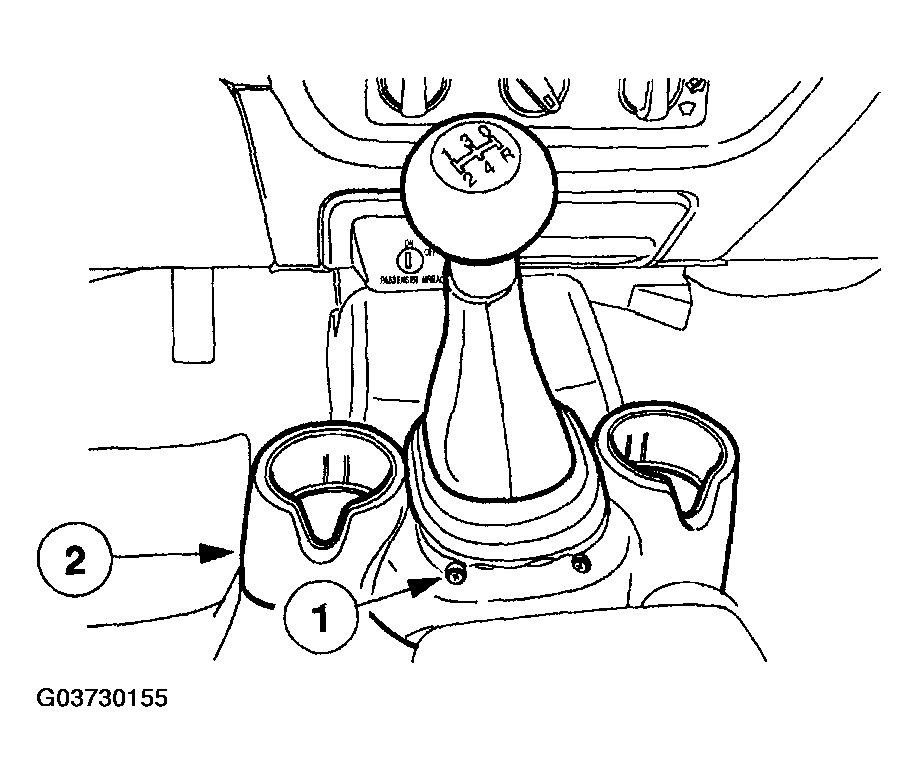

1. Remove the two screws retaining the console to the floor.
2. Raise the outer gearshift lever boot and console assembly to access the nut and eccentric stud.

  Fig 1: Removing Screws, Outer Gearshift Lever Boot And Console Assembly
  Courtesy of MAZDA MOTORS CORP.

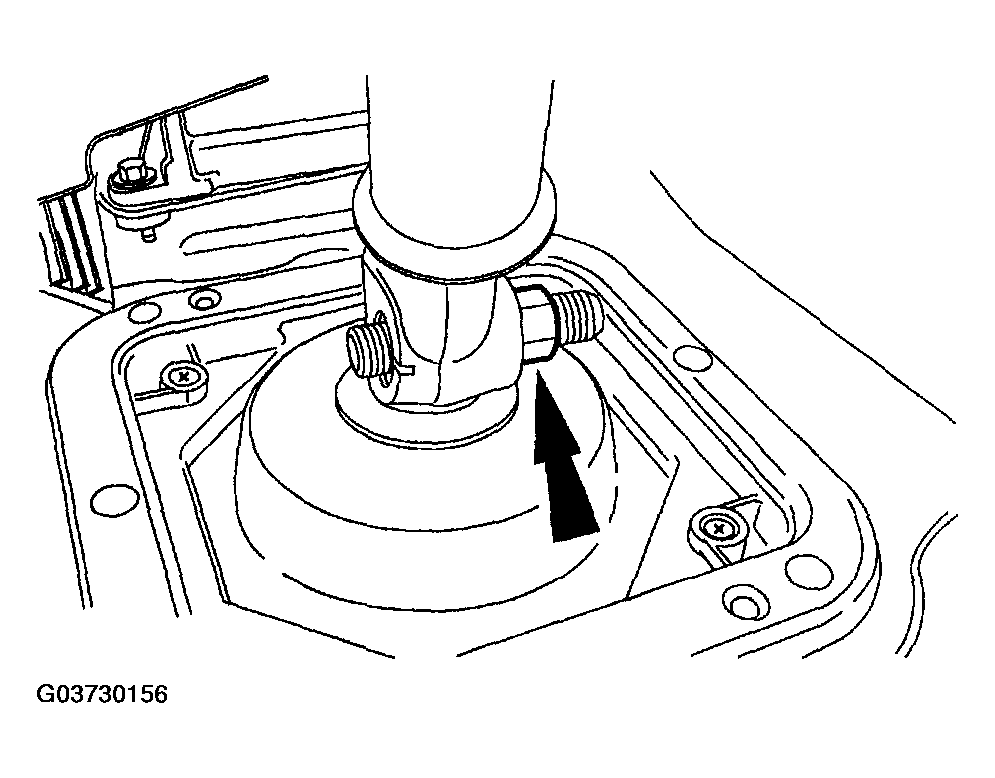

Remove the nut.

Fig 2: Locating Gear Shift Lever Nut
Courtesy of MAZDA MOTORS CORP.

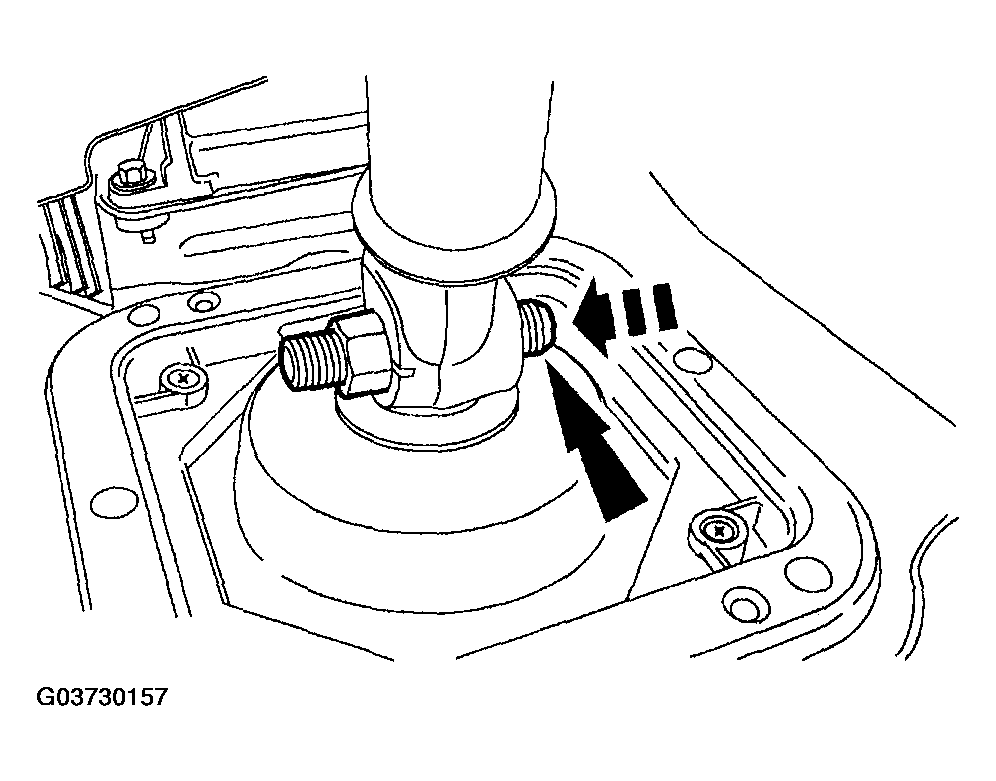

Install the nut on the LH side of the lever, then tighten the nut to remove the eccentric stud out of the gearshift lever.

Fig 3: Removing Eccentric Stud
Courtesy of MAZDA MOTORS CORP.

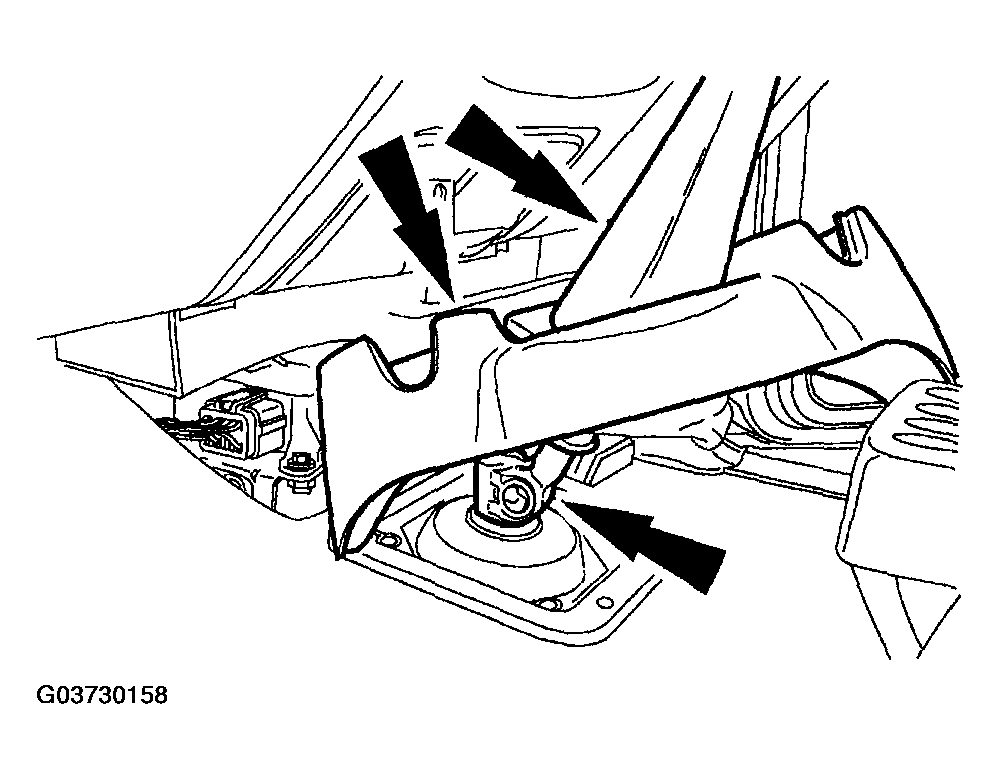

Remove the upper gearshift lever and the outer gearshift lever boot and console assembly as an assembly.

Fig 4: Removing Upper Gearshift Lever And Outer Gearshift Lever Boot And Console Assembly As Assembly
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Note the position of the vehicle identification tags on the top of the inner gearshift lever boot for correct installation.

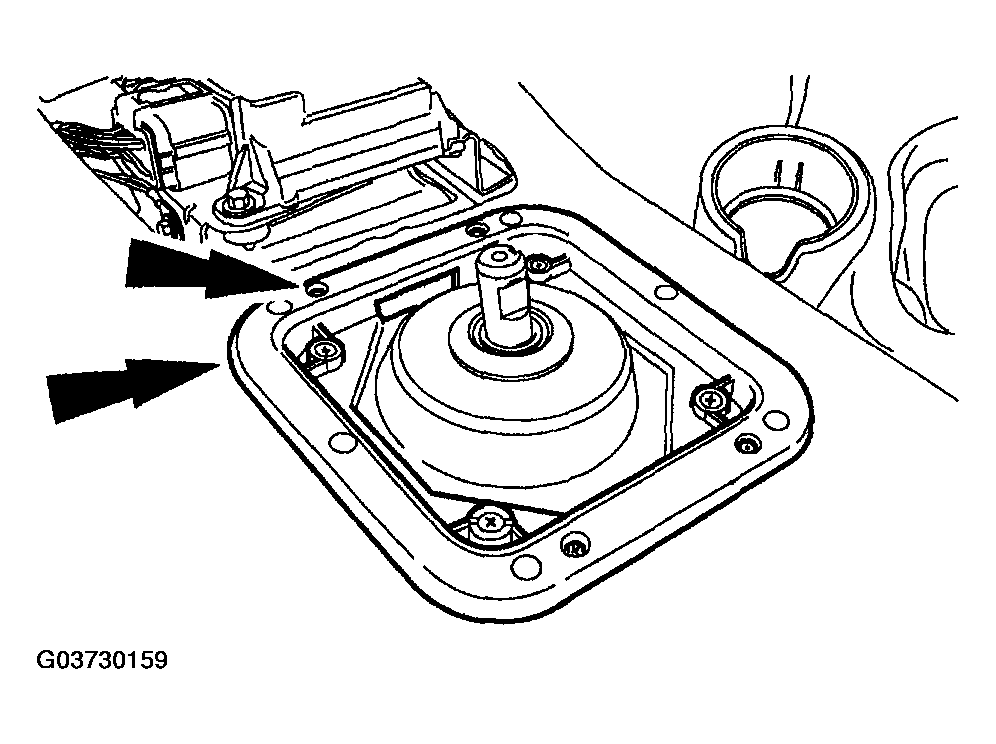

If necessary, remove the four screws and the inner gearshift lever boot.

Fig 5: Removing Inner Gearshift Lever Boot
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
