Manual Transmission Shift Control Housing And Assembly

WARNING: This page is about a different variant/trim than selected.

Check the contact surface of the (A) shift fork and (B) synchronizer sleeve for wear or damage.

Fig 1: Checking Contact Surface Of Shift Fork And Synchronizer Sleeve
Courtesy of MAZDA MOTORS CORP.
Install the gear selector interlock sleeve.
1. Position the gear selector interlock sleeve.
2. Install the bolts.
  Tightening torque

  8-10 Nm { 8.2-10.2 kgf-cm, 71-89 in-lbf}
Install the interlock pins into their original shift rails.
NOTE:
- Improper installation of the interlock pins will prevent activation of the backup lamp switch.

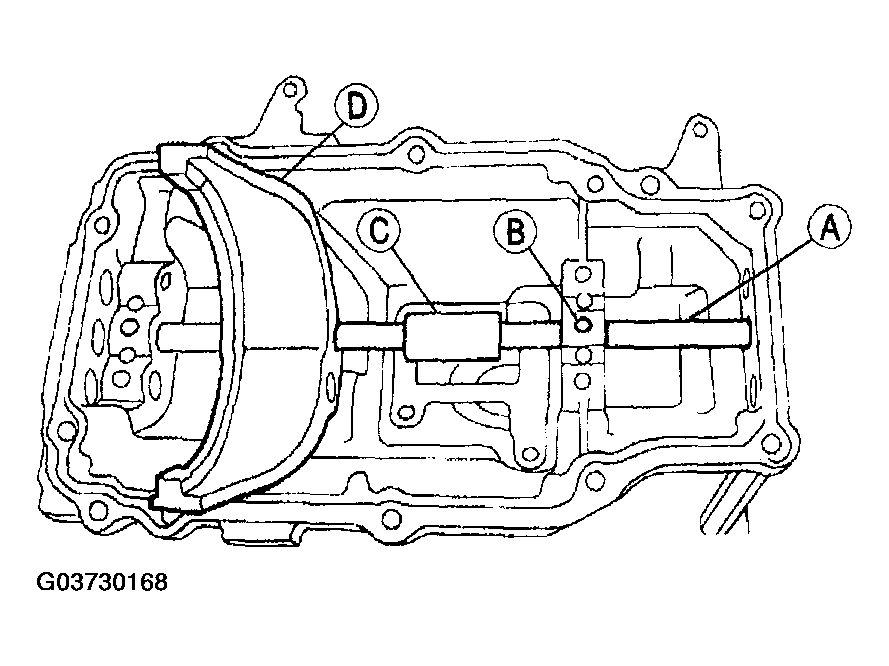

Position the (B) detent ball and spring, the (C) shift gate, the (D) shift fork and spring and install the (A) third/fourth shift rail.

Fig 2: Identifying Detent Ball And Spring, Shift Gate, Shift Fork And Spring, And Third/Fourth Shift Rail
Courtesy of MAZDA MOTORS CORP.

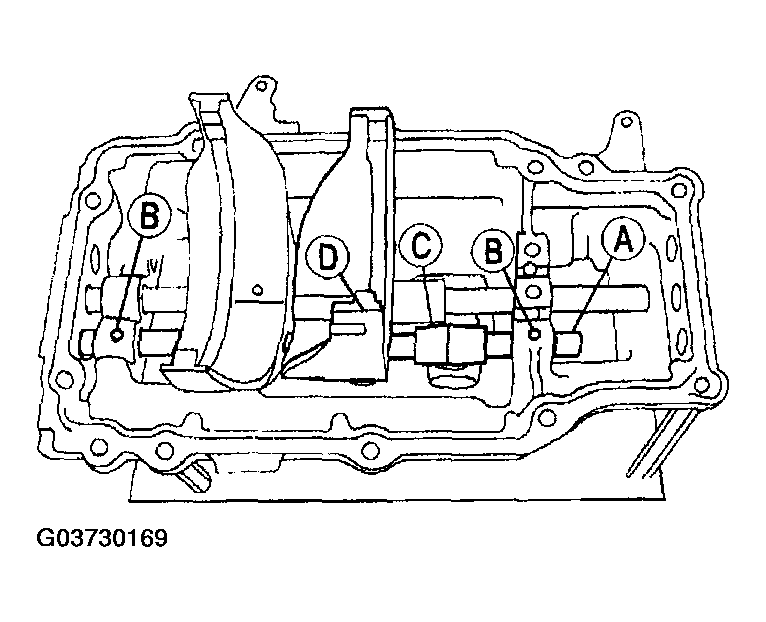

Position the (B) detent ball and spring, the (C) shift gate, the (D) shift fork and spring and install the (A) first/second shift rail.

Fig 3: Identifying Detent Ball And Spring, Shift Gate, Shift Fork And Spring, And First/Second Shift Rail
Courtesy of MAZDA MOTORS CORP.

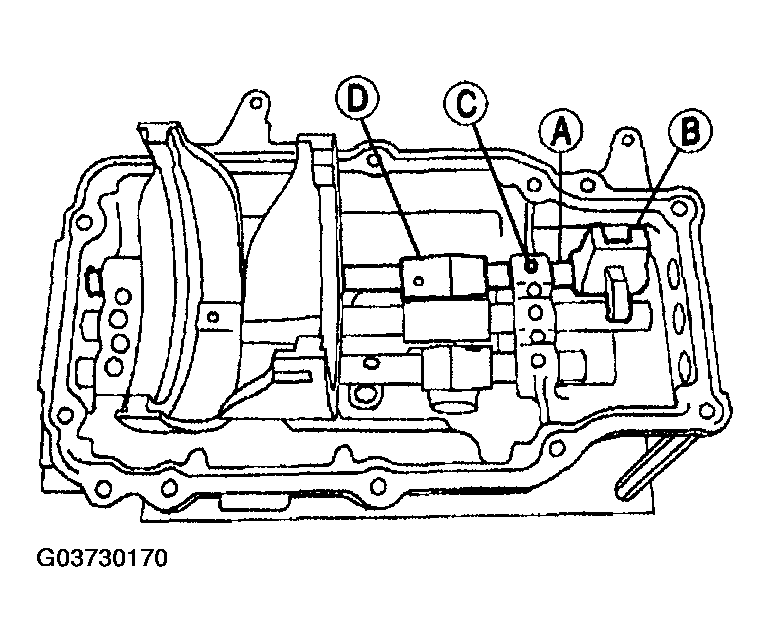

Position the (B) fifth/reverse shift control, the (C) detent ball and spring and the (D) shift gate and install the (A) fifth/reverse shift rail.

Fig 4: Identifying Fifth/Reverse Shift Control, Detent Ball And Spring, Shift Gate And Fifth/Reverse Shift Rail
Courtesy of MAZDA MOTORS CORP.
Install the three rubber service bore plugs.
Install the new shift gate spring pins.
Install the backup lamp switch.
1. Install the backup lamp switch pin.
2. Install the backup lamp switch.
Install the lower gearshift lever.
1. Position the gearshift lever.
2. Position the dust cover.
3. Install the bolts.
  Tightening torque

  8-11 Nm { 8.2-11.2 kgf-cm, 71-97 in.lbf }
