Manual Transmission Oil Replacement

WARNING: This page is about a different variant/trim than selected.

Remove the drain plug and washer.

Fig 1: Removing Drain Plug And Checking Oil Level
Courtesy of MAZDA MOTORS CORP.
Drain the oil into a suitable container.
Install a new washer and the drain plug.
Tightening torque

48 Nm { 4.894 kgfm, 35 ft.lbf}

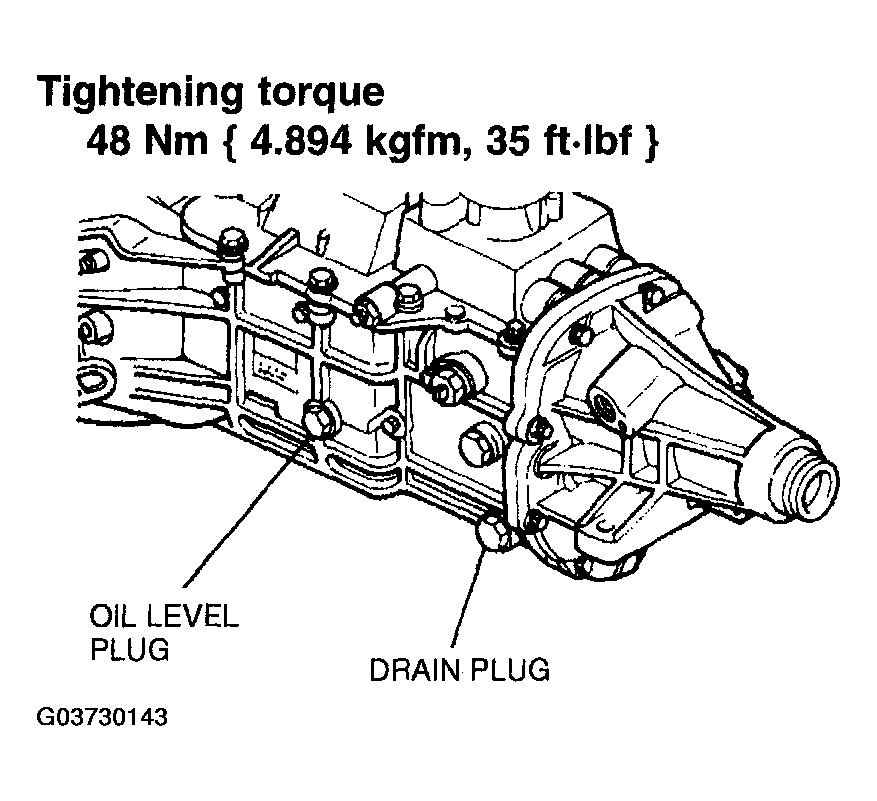

Fig 2: Locating Oil Level And Drain Plugs - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the oil level plug with washer and add the specified amount and type of oil through the oil level plug hole until the level reaches the bottom of the oil level plug hole.

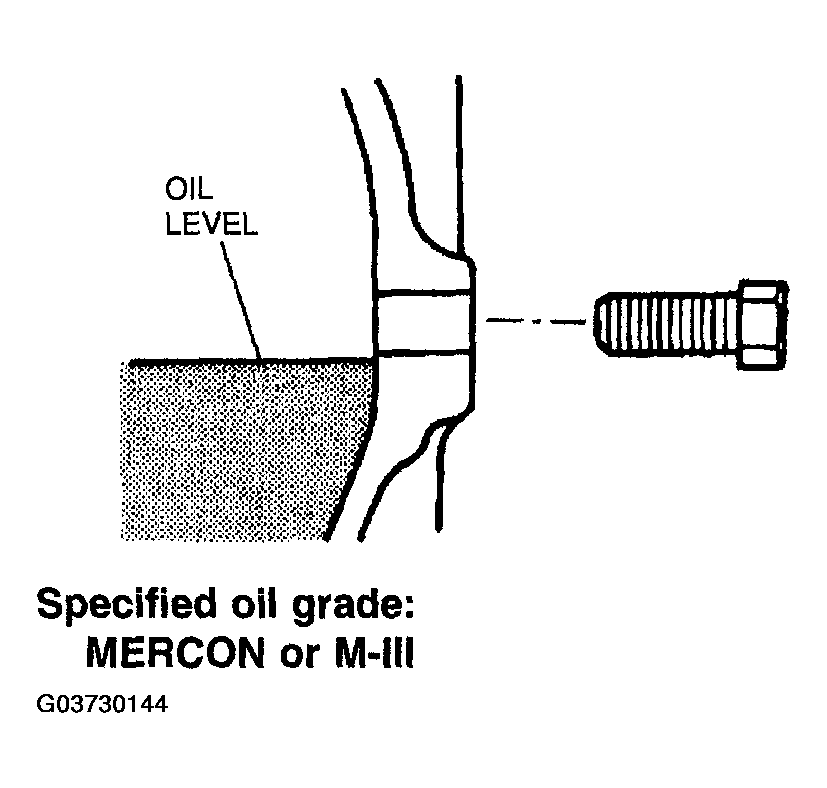

Fig 3: Removing Oil Level Plug
Courtesy of MAZDA MOTORS CORP.

Specified oil grade:

MERCON or M-III

Capacity:

2.65 liters { 5.6 US pt, 4.7 Imp pt}
Install a new washer and the oil level plug.
Tightening torque

48 Nm {4.894 kgfm, 35 ft.lbf}
