Flywheel RUNOUT Check Inspection
WARNING: This page is about a different variant/trim than selected.

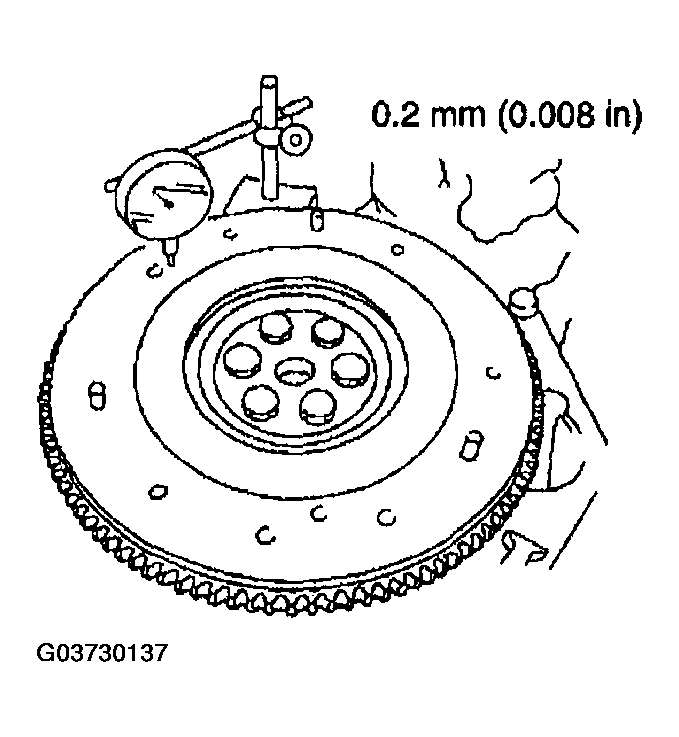

- Mount a dial indicator so the indicator contact point rides on the clutch disc contact surface.
- Turn the flywheel; if the runout exceeds the maximum allowance, replace the flywheel.
Courtesy of MAZDA MOTORS CORP.
