Clutch Cover Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Check the clutch cover surface for scoring, cracks or discoloration. Minor scratches or discoloration should be removed with a fine emery cloth.
  2. Measure the flatness of the clutch cover surface with a straightedge and a feeler gauge.
    Fig 1: Measuring Flatness Of Clutch Cover Surface
    G03730132Courtesy of MAZDA MOTORS CORP.
  3. Check the diaphragm spring fingers for discoloration, scoring, bent or broken segments and spring ends that are higher or lower than the rest.
  4. Measure the wear of the diaphragm spring fingers.

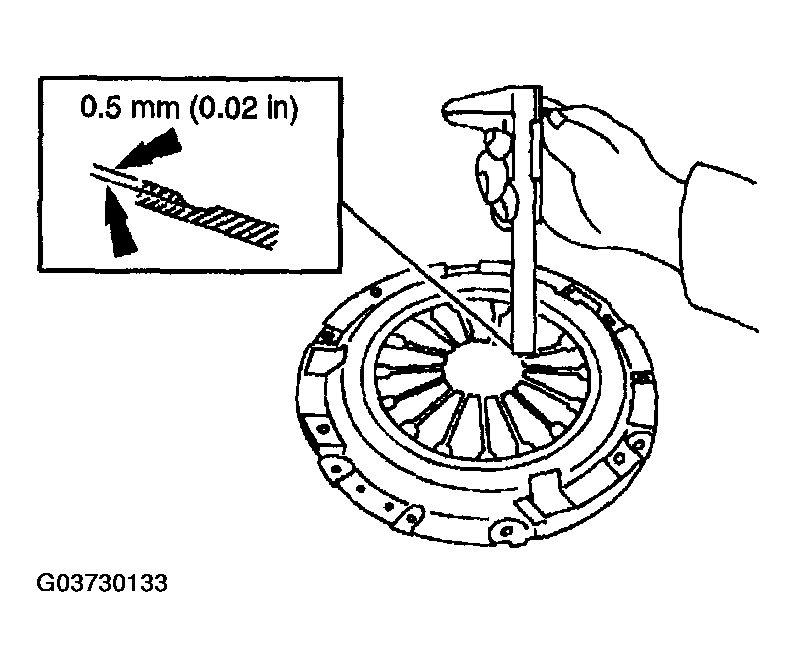

    Fig 2: Measuring Wear Of Diaphragm Spring Fingers
    G03730133Courtesy of MAZDA MOTORS CORP.
