Throttle Body Removal/Installation - 3.0L

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. See BATTERY DISCONNECT .
Disconnect the breather tube and the air inlet tube.

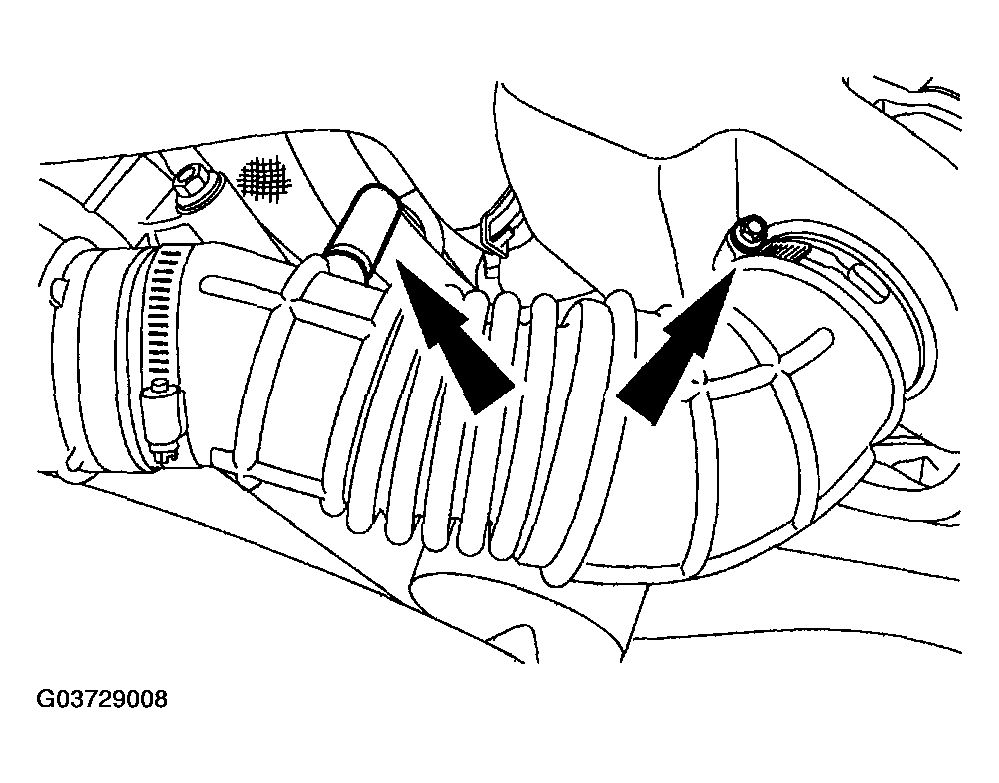

Fig 1: Disconnecting Breather Tube And Air Inlet Tube
Courtesy of MAZDA MOTORS CORP.
Remove the bolt and the splash shield.

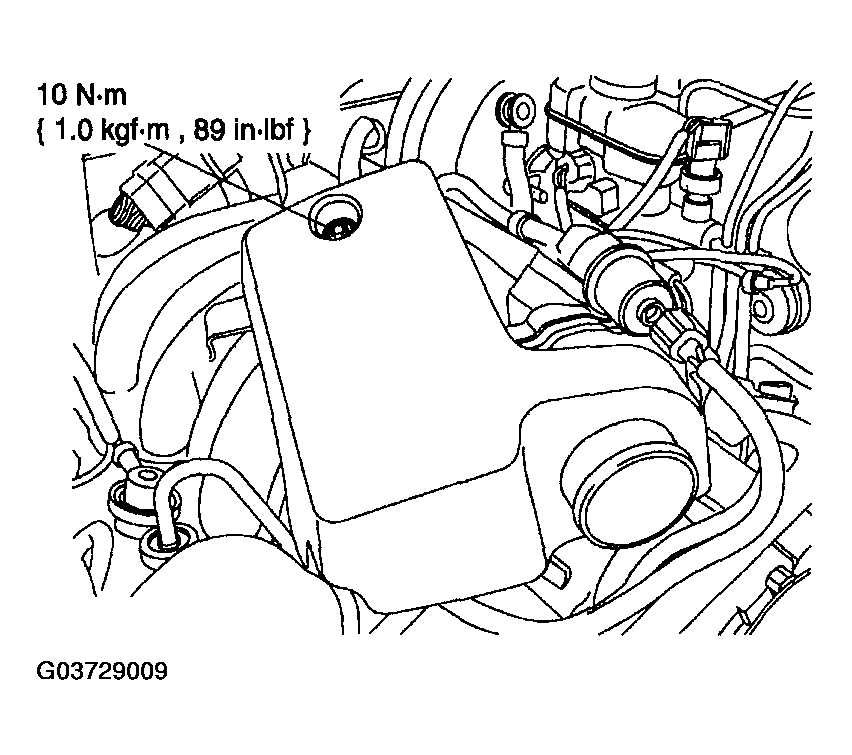

Fig 2: Removing Splash Shield
Courtesy of MAZDA MOTORS CORP.
Disconnect the throttle position (TP) sensor electrical connector.

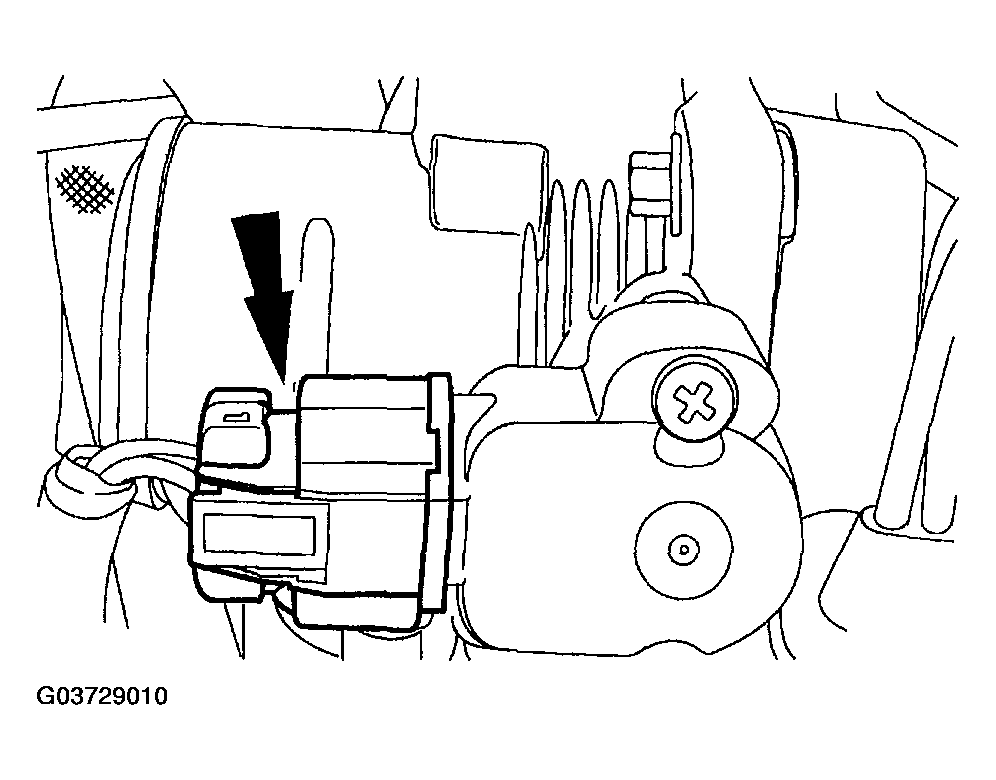

Fig 3: Disconnecting Throttle Position (TP) Sensor Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the accelerator cable, cruise control actuator cable and return spring.

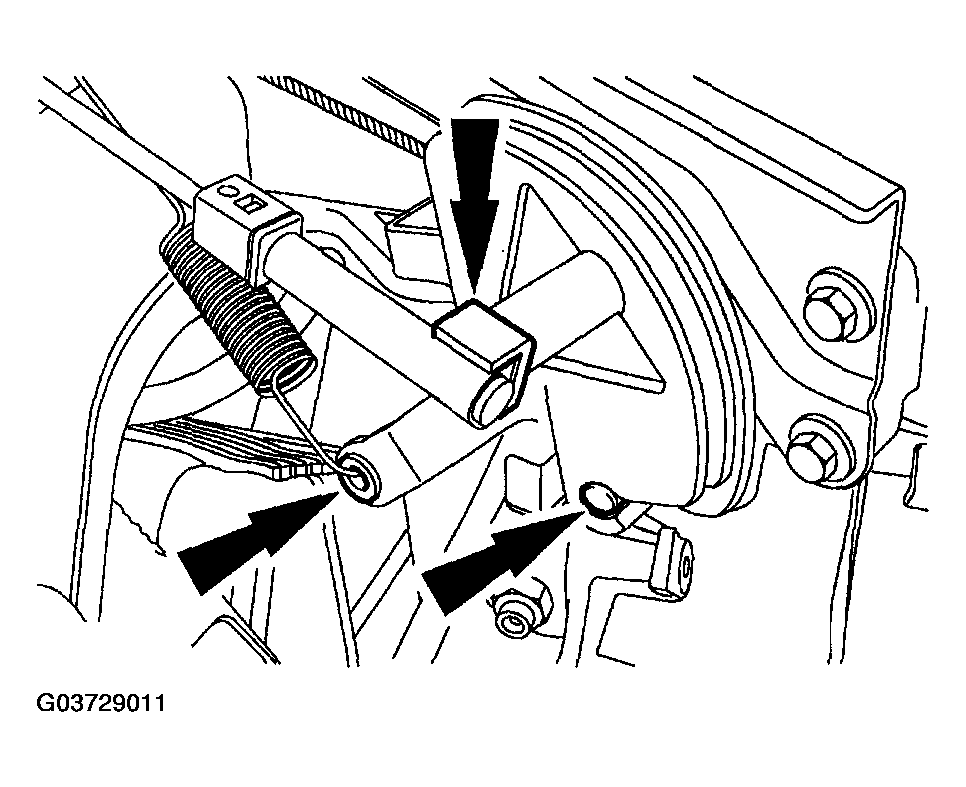

Fig 4: Disconnecting Accelerator Cable, Cruise Control Actuator Cable And Return Spring
Courtesy of MAZDA MOTORS CORP.
Remove the bolts and the throttle body.

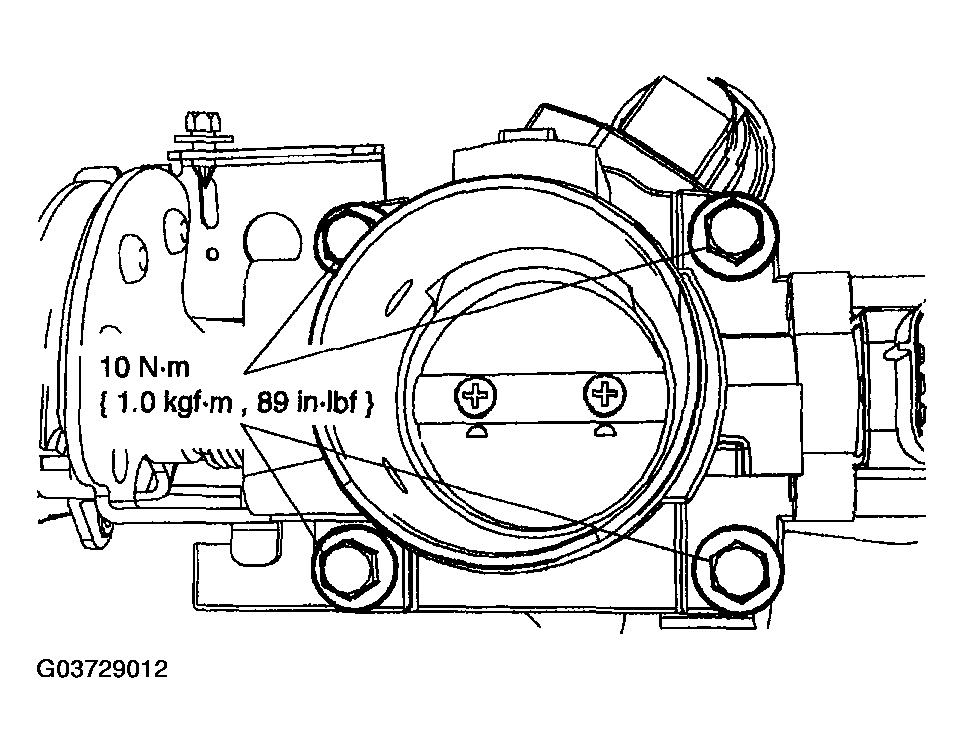

Fig 5: Removing Throttle Body
Courtesy of MAZDA MOTORS CORP.
If required, remove the throttle body gasket.
If required, remove the TP sensor. See THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION - 3.0L .
To install, reverse the removal procedure.
