Intake Manifold Lower Removal/Installation - 3.0L: Removal

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine cooling system. See ENGINE COOLANT REPLACEMENT - 3.0L .
  2. Remove both valve covers. See VALVE COVER -- (RH) REMOVAL/INSTALLATION - 3.0L and VALVE COVER -- (LH) REMOVAL/INSTALLATION - 3.0L .
  3. Disconnect the upper radiator hose, heater hose and coolant bypass hose.

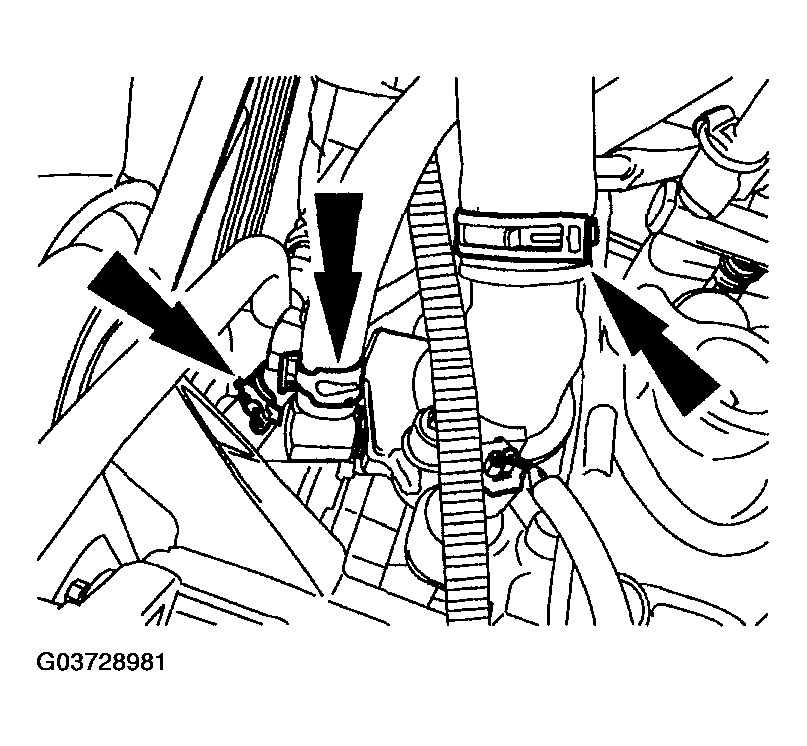

    Fig 1: Disconnecting Upper Radiator Hose, Heater Hose And Coolant Bypass Hose
    G03728981Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the engine coolant temperature (ECT) sensor and coolant temperature sender electrical connectors.

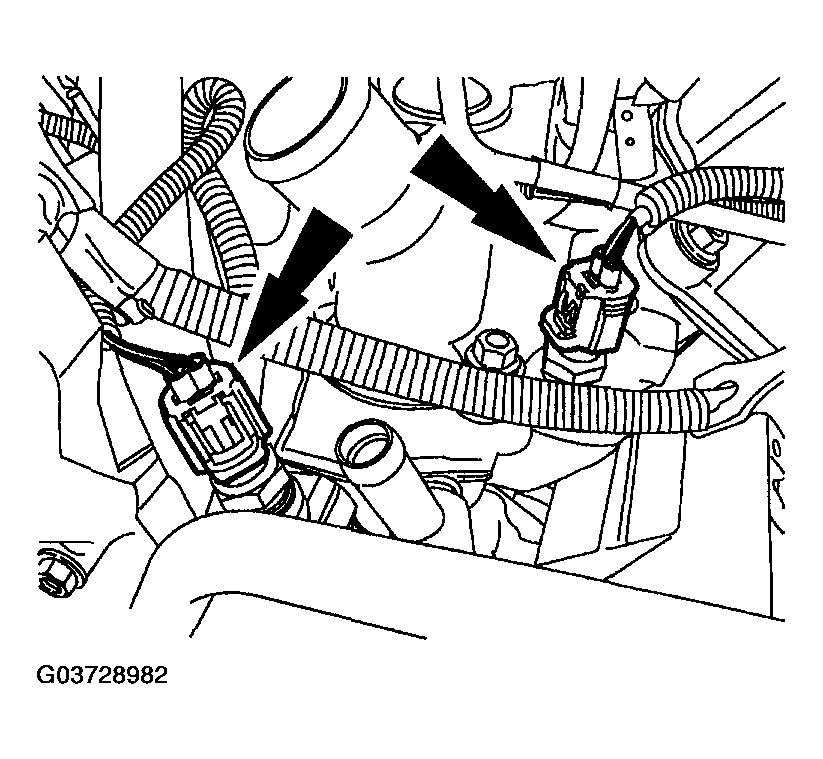

    Fig 2: Disconnecting Engine Coolant Temperature (ECT) Sensor And Coolant Temperature Sender Electrical Connectors
    G03728982Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the crankshaft position (CKP) sensor and detach the wiring from the stud bolt.

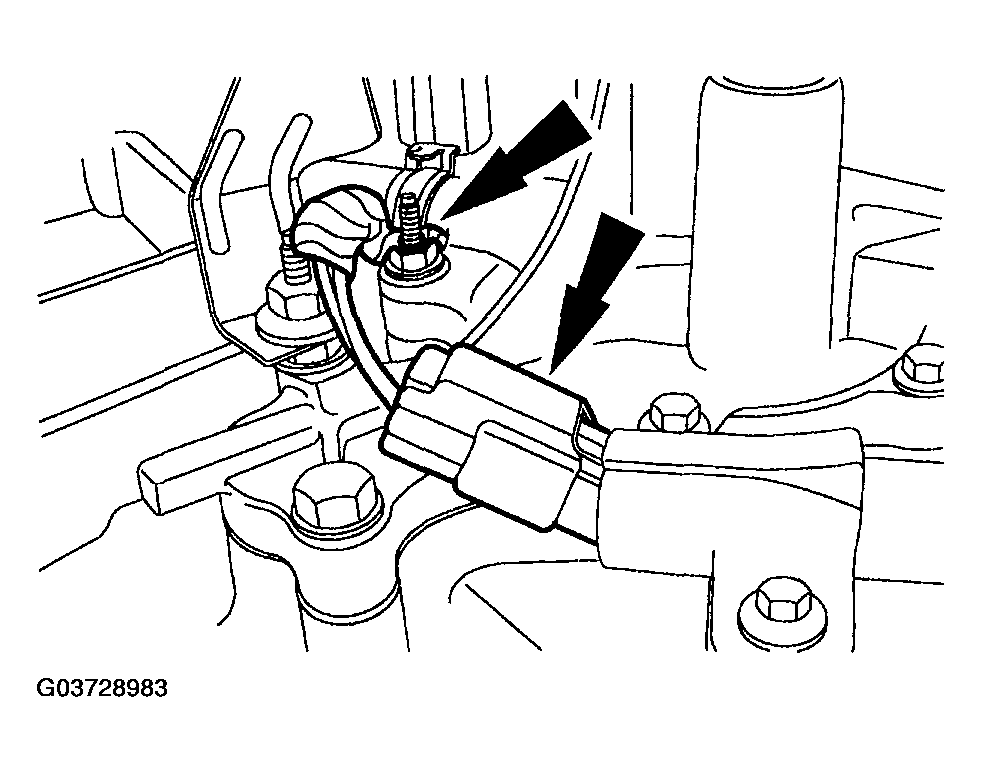

    Fig 3: Disconnecting Crankshaft Position (CKP) Sensor
    G03728983Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the fuel injector electrical connectors and position the engine control wiring aside.
  7. Relieve the fuel system pressure and disconnect the fuel line. See FUEL LINE AND VAPOR LINE QUICK DISCONNECT FITTINGS .
  8. Remove the four bolts and the fuel injection supply manifold and fuel injectors as an assembly.

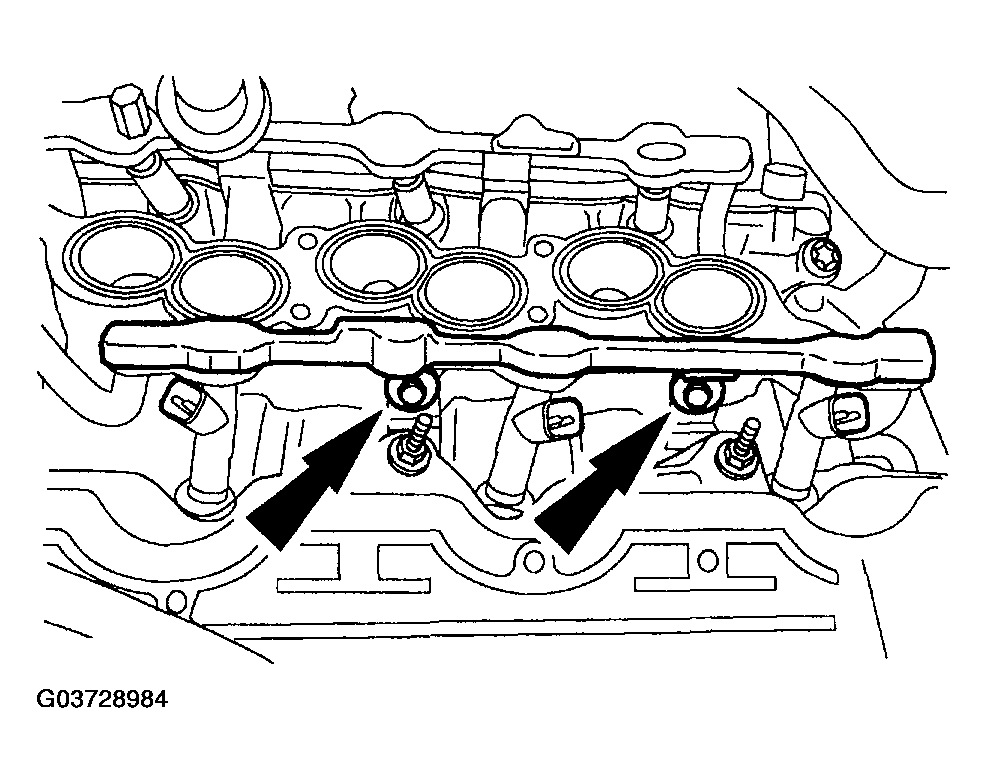

    Fig 4: Removing Fuel Injection Supply Manifold And Fuel Injectors Assembly
    G03728984Courtesy of MAZDA MOTORS CORP.
  9. Remove the fuel injectors from the fuel supply manifold.
    • Remove and discard the fuel injector O-ring seals.
  10. Loosen the bolt for the rocker arm at the number three cylinder intake valve.

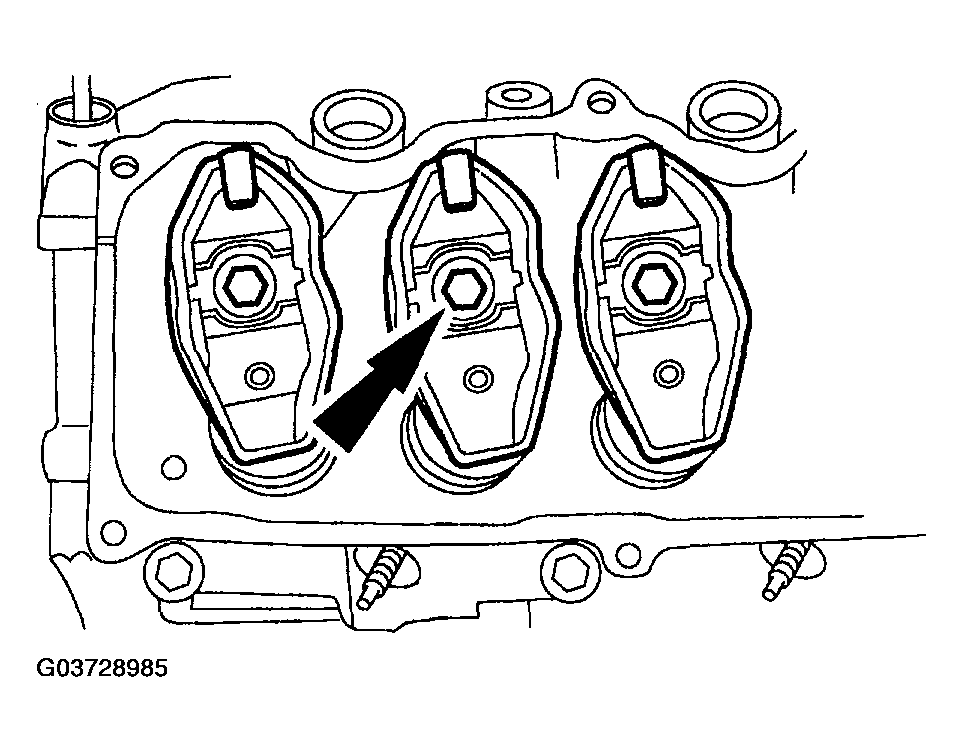

    Fig 5: Loosening Rocker Arm Bolts
    G03728985Courtesy of MAZDA MOTORS CORP.
  11. Remove the push rod for the number three cylinder intake valve.
  12. Remove the bolts from the lower intake manifold.

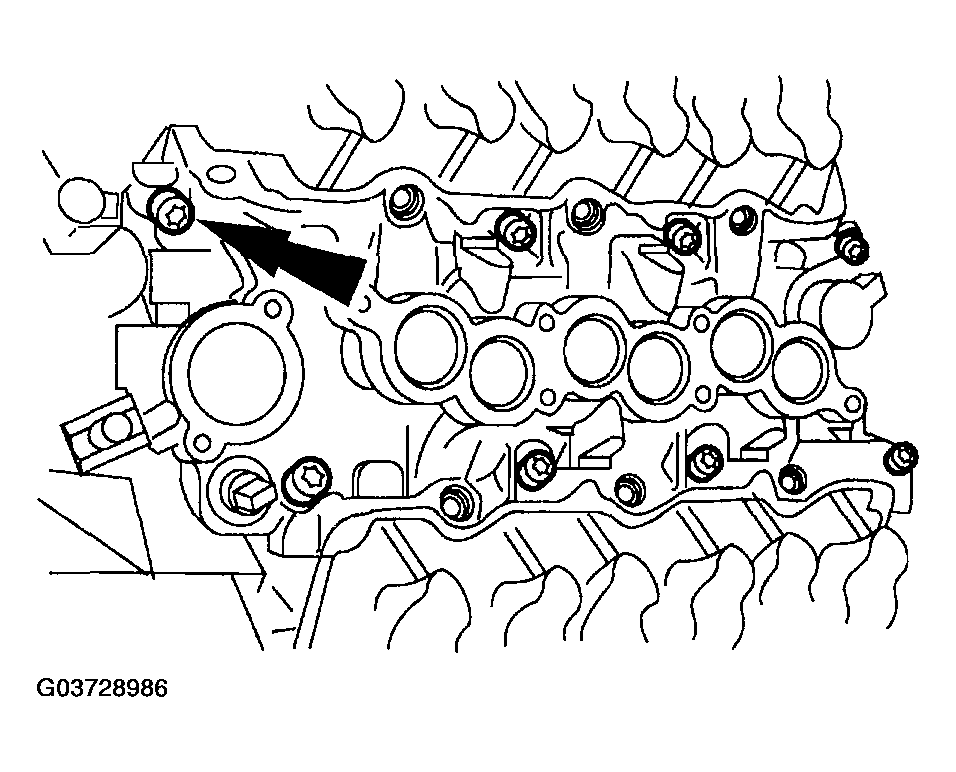

    Fig 6: Removing Lower Intake Manifold Bolts
    G03728986Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Gently loosen the intake manifold to separate the silicone sealant from the cylinder block.
  13. Remove the lower intake manifold.

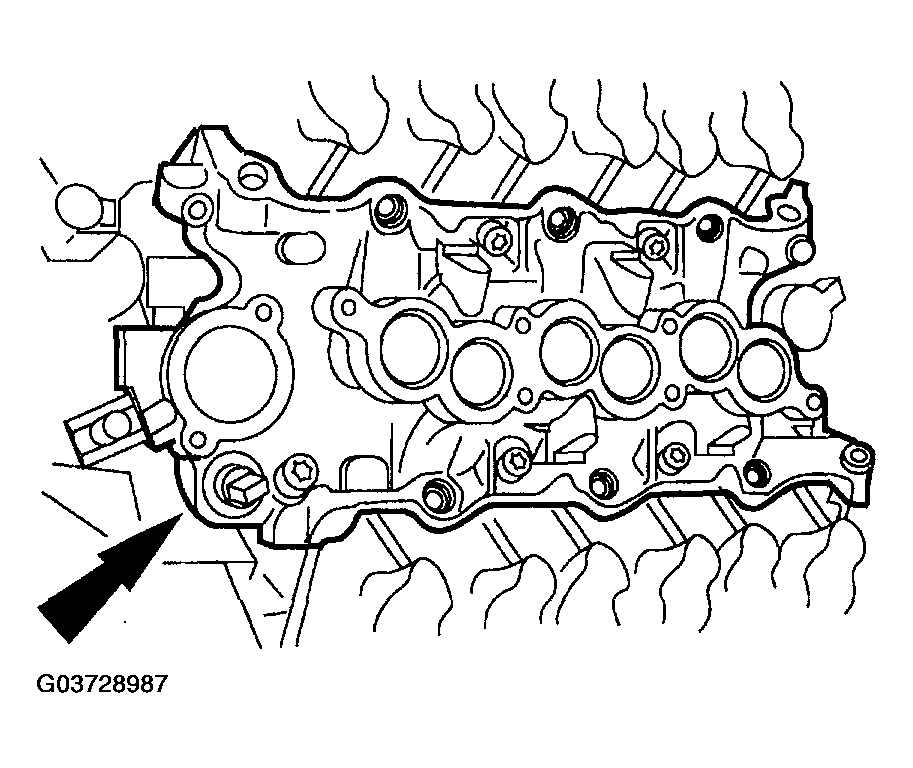

    Fig 7: Removing Lower Intake Manifold
    G03728987Courtesy of MAZDA MOTORS CORP.
  14. Remove and discard the intake manifold gaskets and end seals.

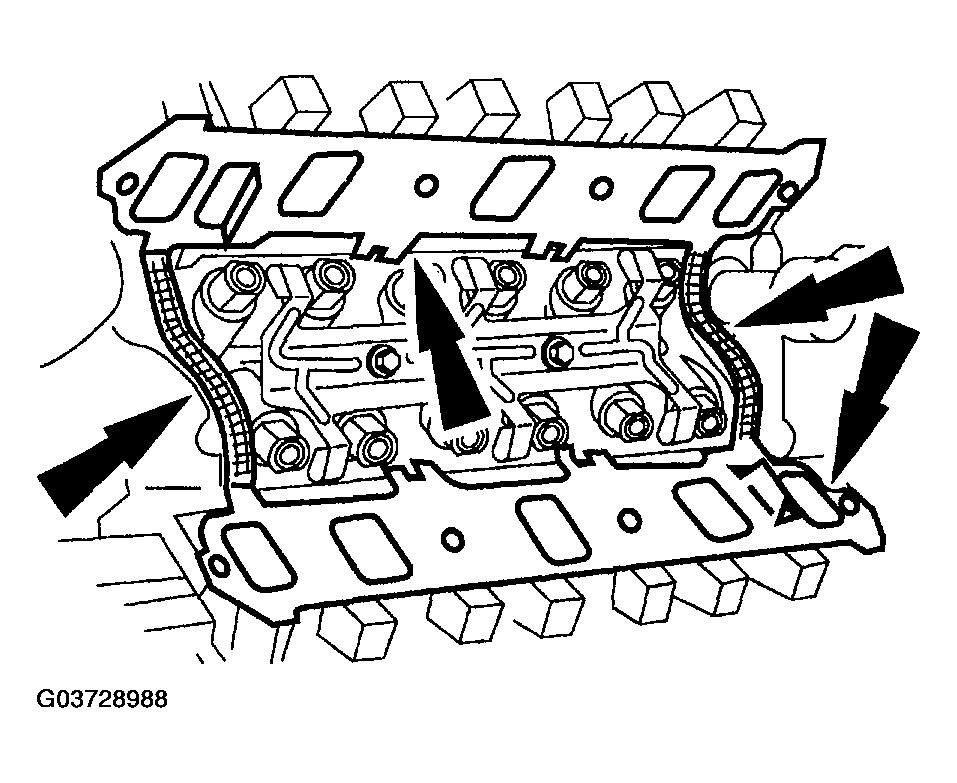

    Fig 8: Removing Intake Manifold Gaskets And End Seals
    G03728988Courtesy of MAZDA MOTORS CORP.
