Intake Manifold Lower Removal/Installation - 3.0L: Installation

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Clean and inspect all mating surfaces.
NOTE:
  • If the lower intake manifold is not installed within four minutes, remove the sealant and reapply.
  1. Install the intake manifold gaskets and seals.
    1. Apply a drop of silicone gasket and sealant at the four cylinder block-to-cylinder head seams.
    2. Position the intake manifold gaskets.
    3. Position the intake manifold front and rear seals.

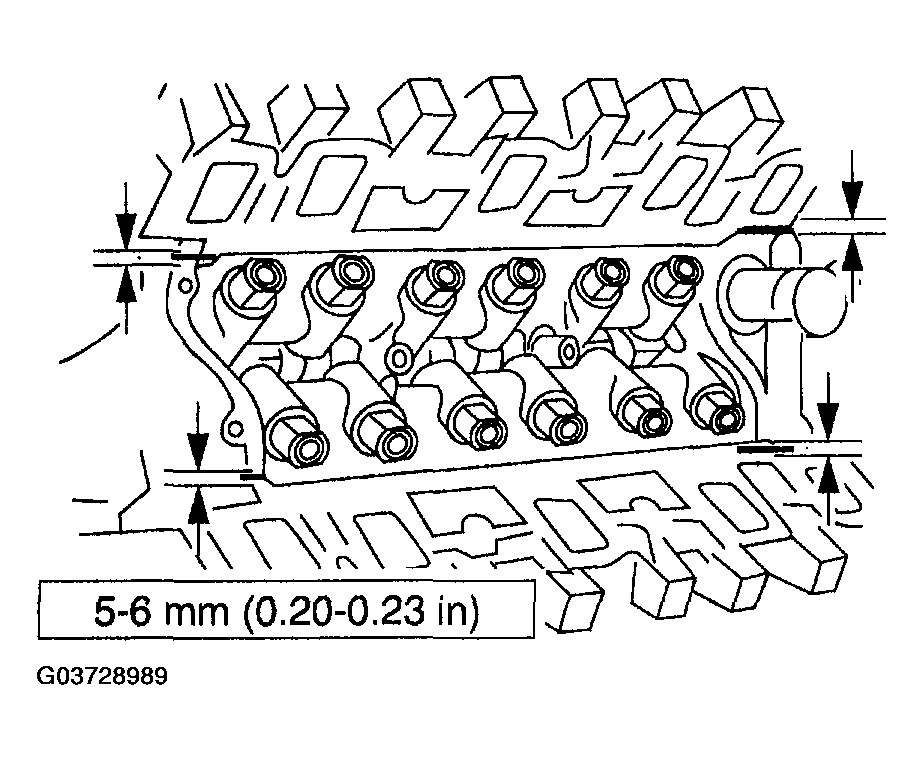

      Fig 1: Installing Intake Manifold Gaskets And Seals
      G03728989Courtesy of MAZDA MOTORS CORP.
  2. Position the lower intake manifold.

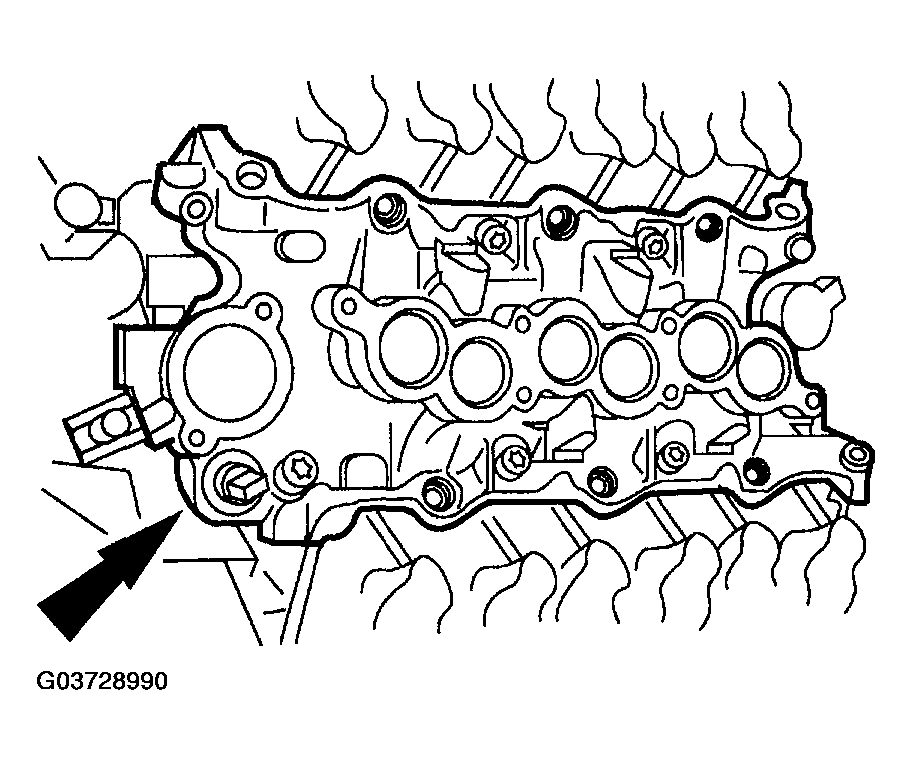

    Fig 2: Positioning Lower Intake Manifold
    G03728990Courtesy of MAZDA MOTORS CORP.
  3. Install the lower intake manifold bolts and tighten in the sequence shown.

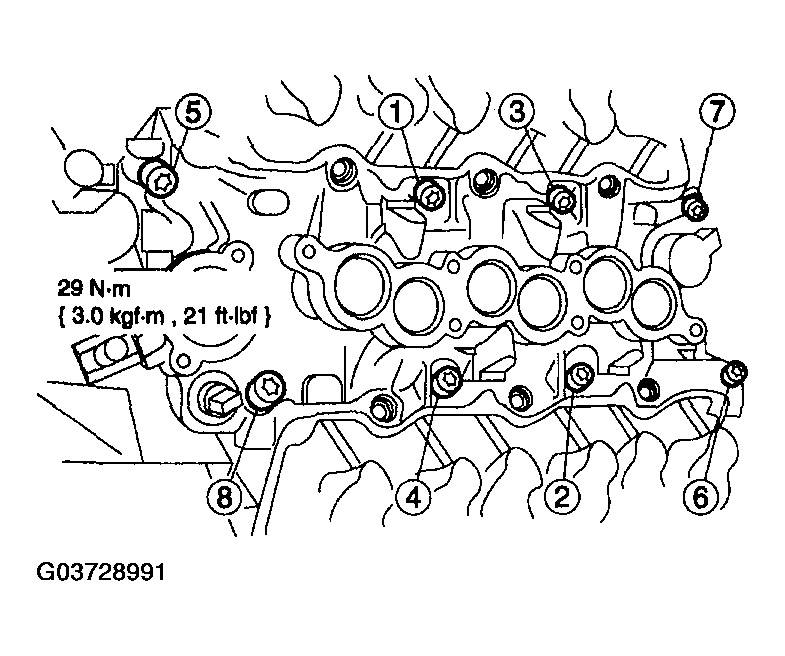

    Fig 3: Sequence Of Lower Intake Manifold Bolts -- With Torque Specifications
    G03728991Courtesy of MAZDA MOTORS CORP.
  4. Install the push rod for the number three cylinder intake valve.
  5. Tighten the rocker arm.

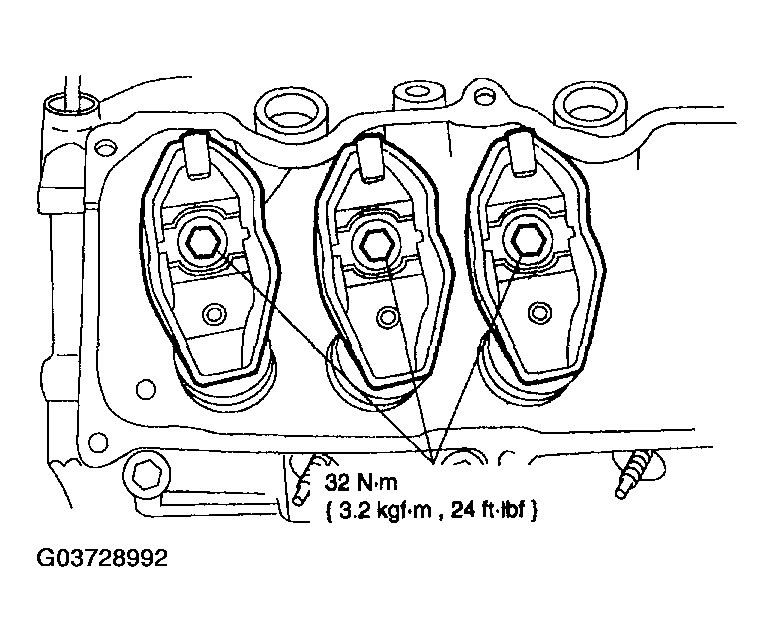

    Fig 4: Tightening Rocker Arm - With Torque Specifications
    G03728992Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Lubricate the new O-ring seals with clean engine oil.
  6. Install new O-ring seals on the fuel injectors and install the fuel injectors.
    Fig 5: Installing New O-Ring Seals On Fuel Injectors And Fuel Injectors
    G03728993Courtesy of MAZDA MOTORS CORP.
  7. Install the fuel injection supply manifold and the fuel injectors as an assembly.
    • Position the injectors and the fuel injection supply manifold.
    • Install the four bolts.

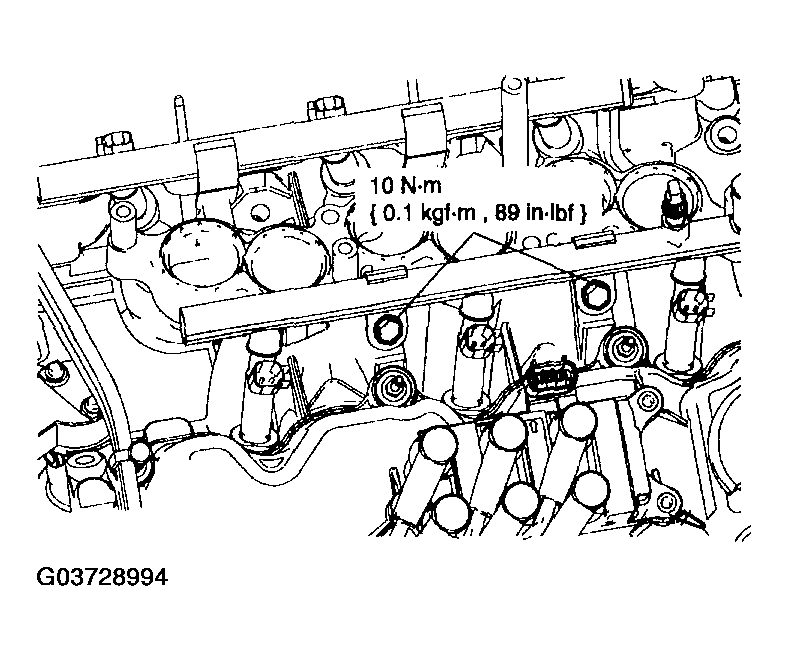

      Fig 6: Installing Bolts - With Torque Specifications
      G03728994Courtesy of MAZDA MOTORS CORP.
  8. Connect the fuel line. See FUEL LINE AND VAPOR LINE QUICK DISCONNECT FITTINGS .
  9. Connect the fuel injector electrical connectors

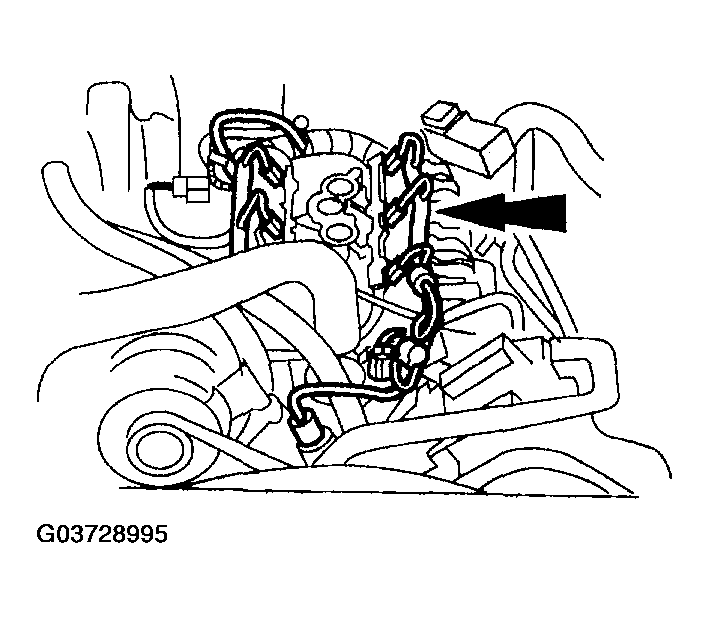

    Fig 7: Connecting Fuel Injector Electrical Connectors
    G03728995Courtesy of MAZDA MOTORS CORP.
  10. Connect the crankshaft position (CKP) sensor and attach the wiring from the stud bolt.

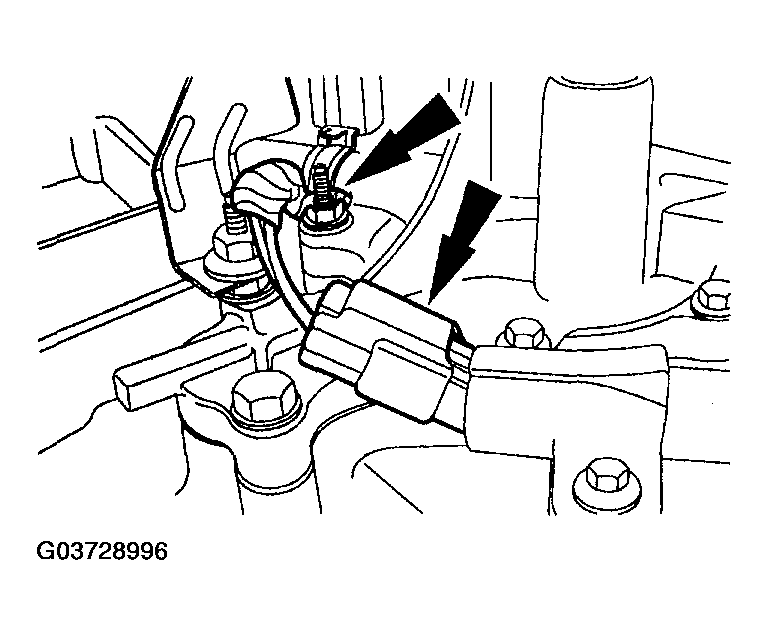

    Fig 8: Connecting Crankshaft Position (CKP) Sensor
    G03728996Courtesy of MAZDA MOTORS CORP.
  11. Connect the engine coolant temperature (ECT) sensor and coolant temperature sender electrical connectors.

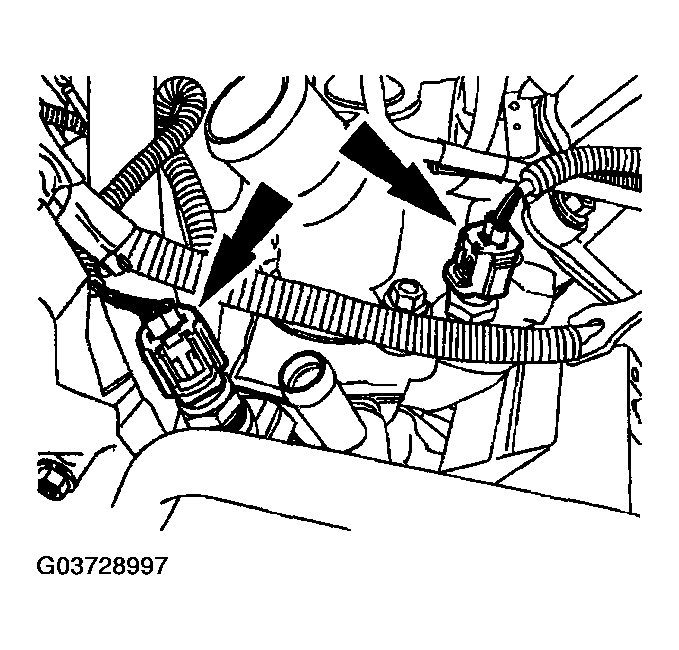

    Fig 9: Connecting Engine Coolant Temperature (ECT) Sensor And Coolant Temperature Sender Electrical Connectors
    G03728997Courtesy of MAZDA MOTORS CORP.
  12. Connect the upper radiator hose, heater hose and coolant bypass hose.

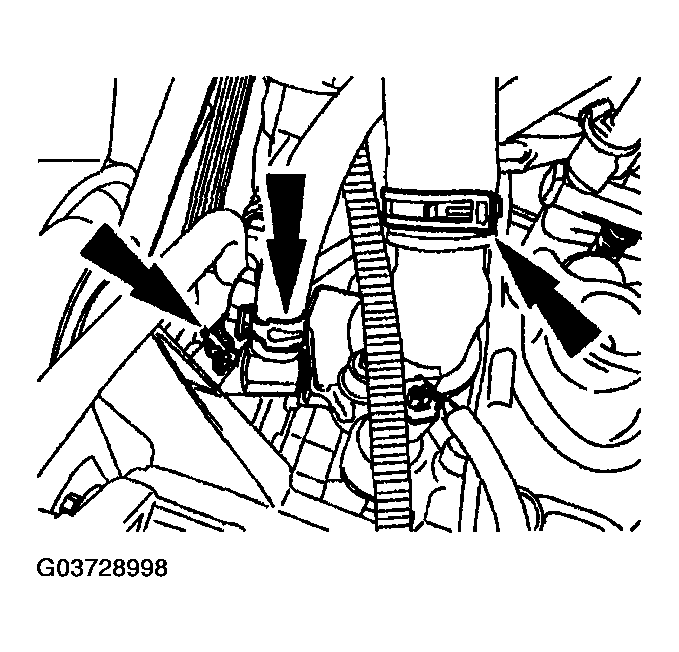

    Fig 10: Connecting Upper Radiator Hose, Heater Hose And Coolant Bypass Hose
    G03728998Courtesy of MAZDA MOTORS CORP.
  13. Install both valve covers. See VALVE COVER -- (RH) REMOVAL/INSTALLATION - 3.0L and VALVE COVER -- (LH) REMOVAL/INSTALLATION - 3.0L .
  14. Fill and bleed the engine cooling system. See ENGINE COOLANT REPLACEMENT - 3.0L .
