Engine Air Cleaner Removal/Installation - 3.0L

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

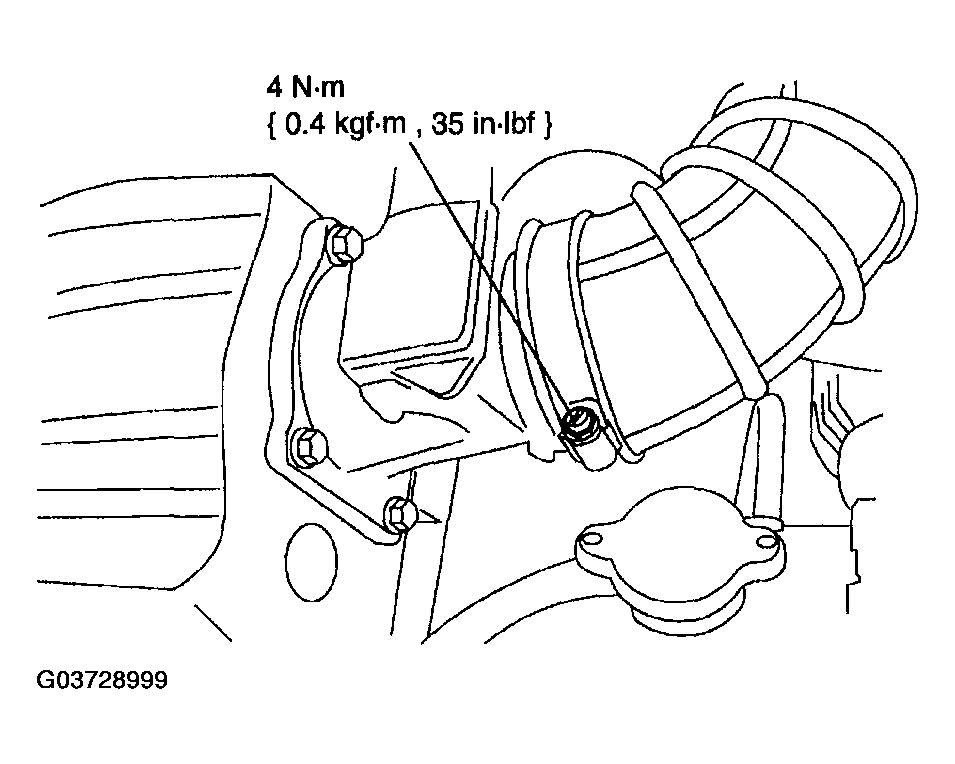

Fig 1: Removing Air Cleaner Outlet Tube From Mass Air Flow (MAF) Sensor - With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

Loosen the clamp and remove the air cleaner outlet tube from the mass air flow (MAF) sensor.

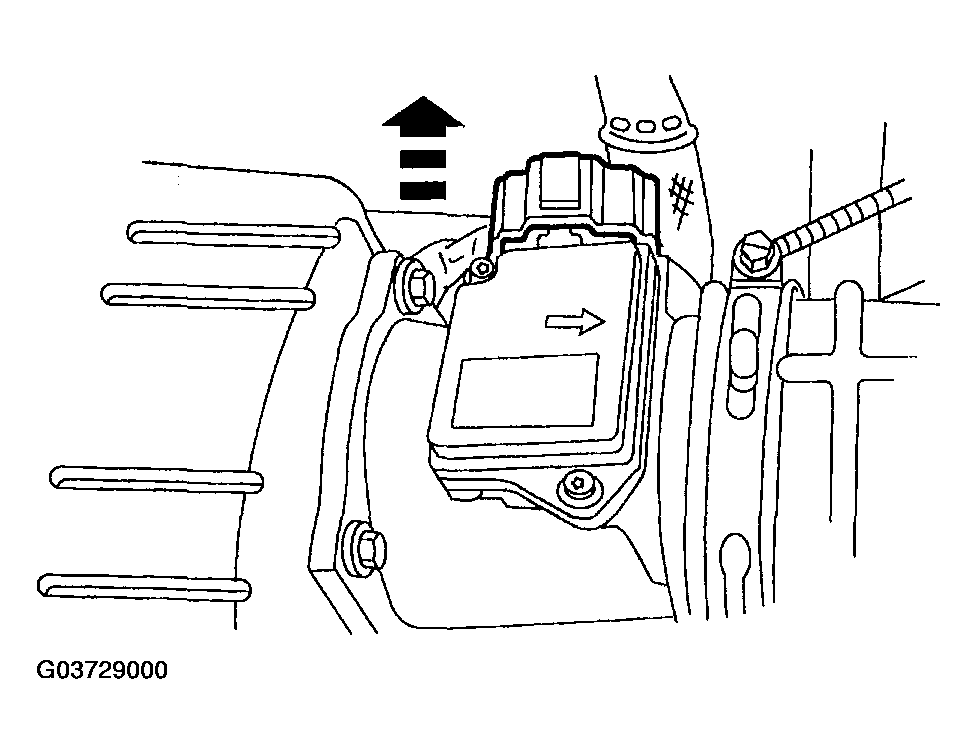

Fig 2: Disconnecting MAF Sensor Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the MAF sensor electrical connector.

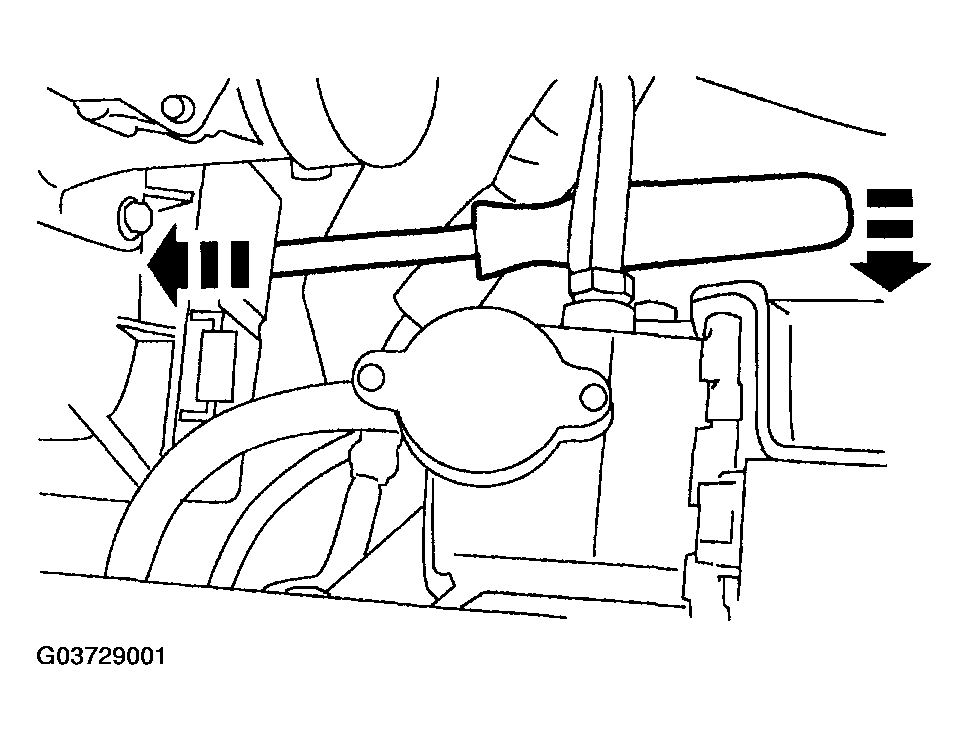

Fig 3: Prying Engine Air Cleaner From Base
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Pry the engine air cleaner from the base.
Remove the engine air cleaner assembly.
NOTE:
- Clean the engine air cleaner with a dry, clean cloth.
To install, reverse the removal procedure.
