Accelerator Pedal Removal/Installation - 3.0L

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the accelerator cable from the accelerator pedal and shaft.

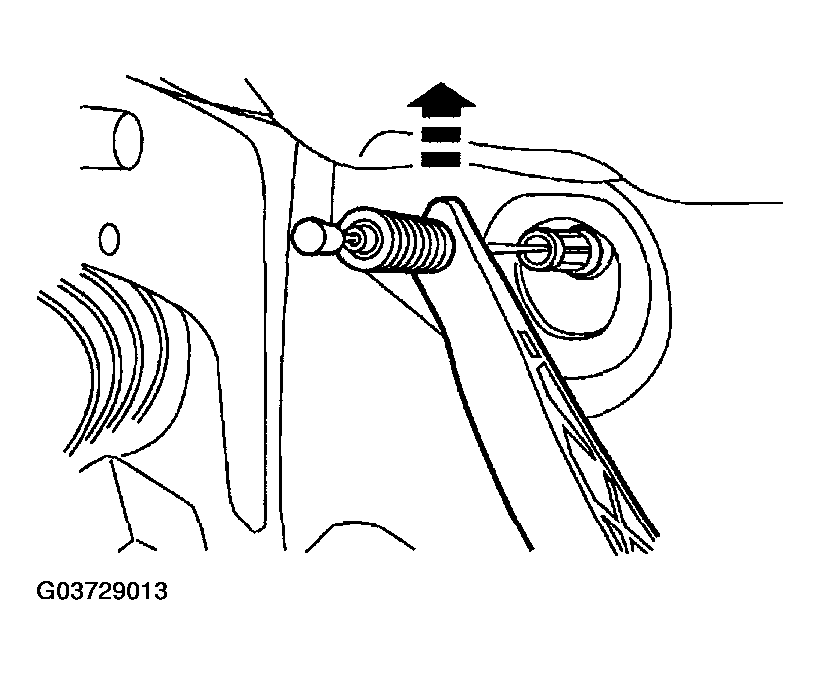

    Fig 1: Disconnecting Accelerator Cable From Accelerator Pedal And Shaft
    G03729013Courtesy of MAZDA MOTORS CORP.
  2. Remove the bolt and remove the accelerator pedal and shaft.
  3. Install in reverse order of removal.
    Fig 2: Removing Accelerator Pedal And Shaft - With Torque Specifications
    G03729014Courtesy of MAZDA MOTORS CORP.
