Accelerator Cable Removal/Installation - 3.0L

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner outlet tube.

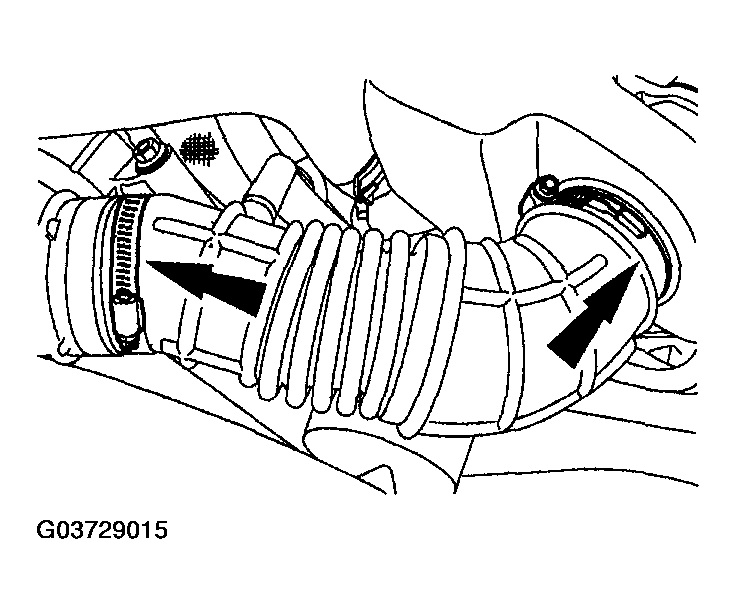

Fig 1: Removing Air Cleaner Outlet Tube
Courtesy of MAZDA MOTORS CORP.
Remove the screws and remove the accelerator control splash shield.

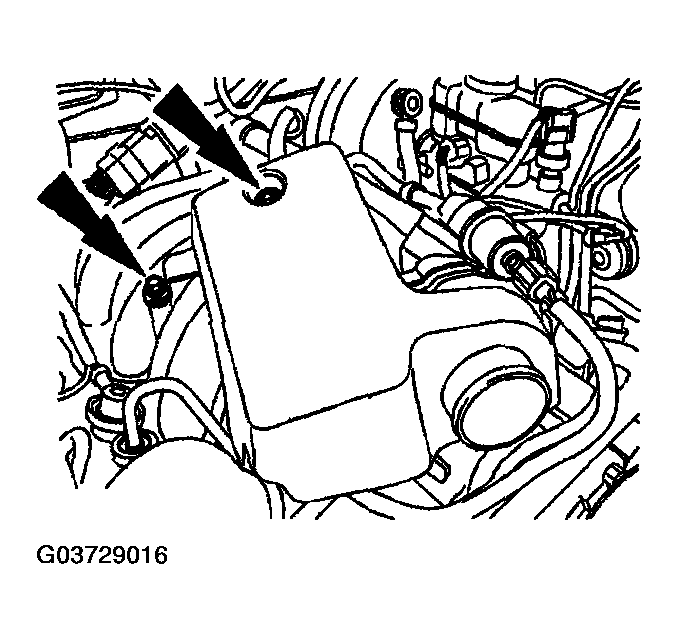

Fig 2: Removing Accelerator Control Splash Shield
Courtesy of MAZDA MOTORS CORP.
Remove the return spring. Disconnect the accelerator cable from the throttle lever and the bracket.

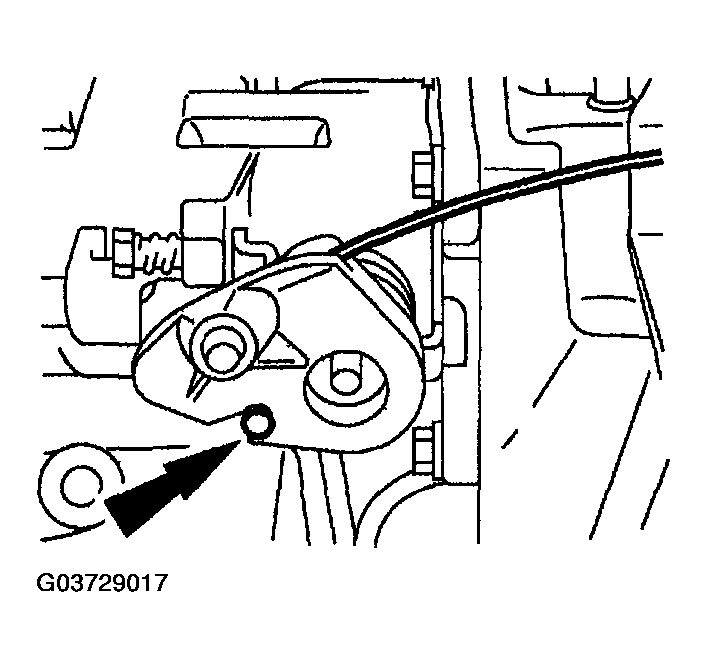

Fig 3: Disconnecting Accelerator Cable From Throttle Lever And Bracket
Courtesy of MAZDA MOTORS CORP.
Disconnect the accelerator cable from the accelerator pedal and shaft.

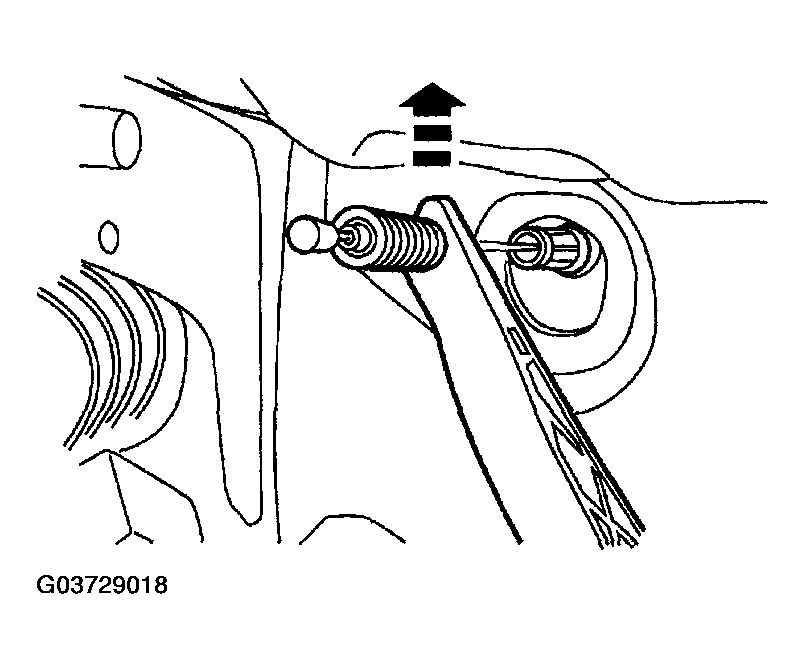

Fig 4: Disconnecting Accelerator Cable From Accelerator Pedal And Shaft
Courtesy of MAZDA MOTORS CORP.
Depress the clips and remove the accelerator cable from the accelerator pedal and shaft.

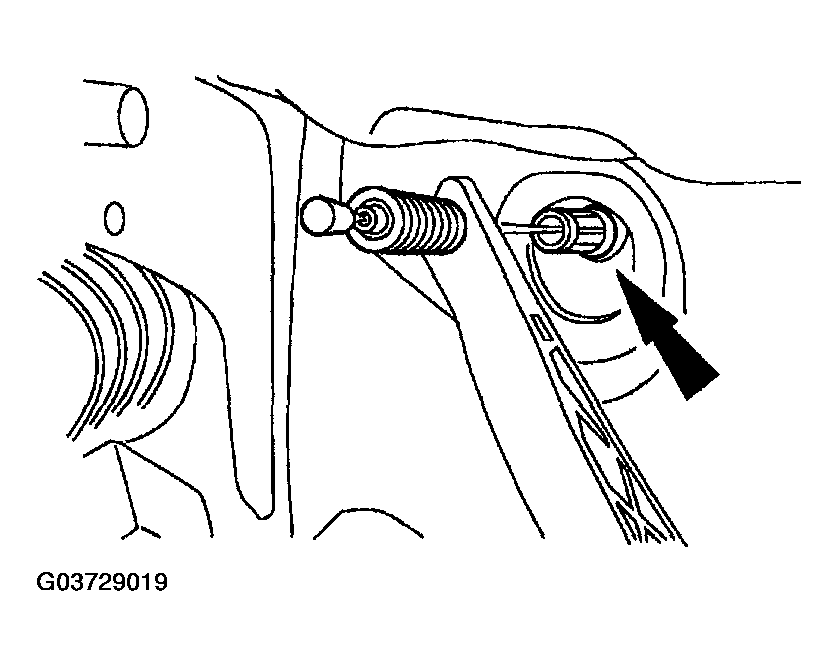

Fig 5: Removing Accelerator Cable From Accelerator Pedal And Shaft
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
