Accelerator Cable Bracket Removal/Installation - 3.0L

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner outlet tube.

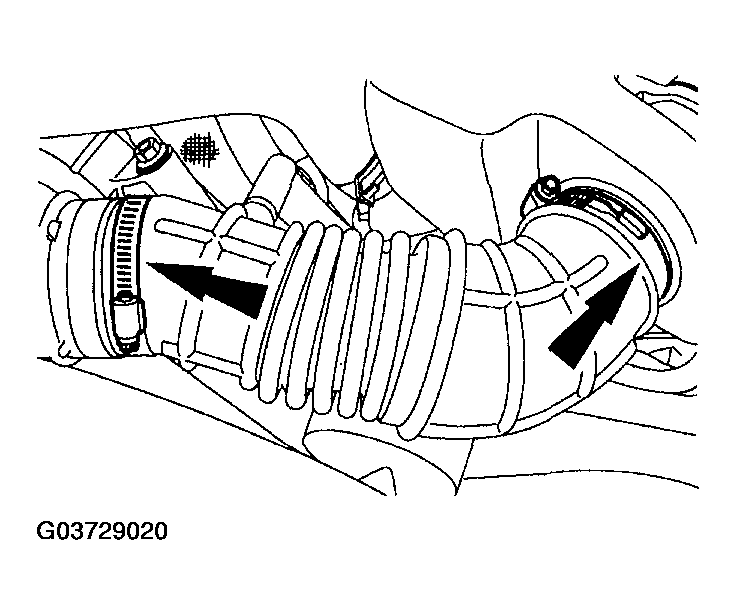

Fig 1: Removing Air Cleaner Outlet Tube
Courtesy of MAZDA MOTORS CORP.
Remove the screws and the accelerator control splash shield.

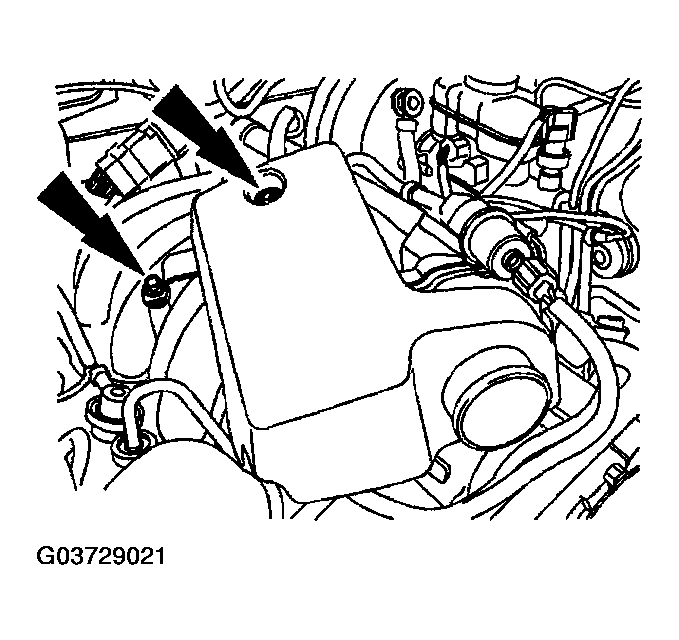

Fig 2: Removing Accelerator Control Splash Shield
Courtesy of MAZDA MOTORS CORP.
Disconnect the speed control cable, of equipped, from the throttle lever and the bracket.

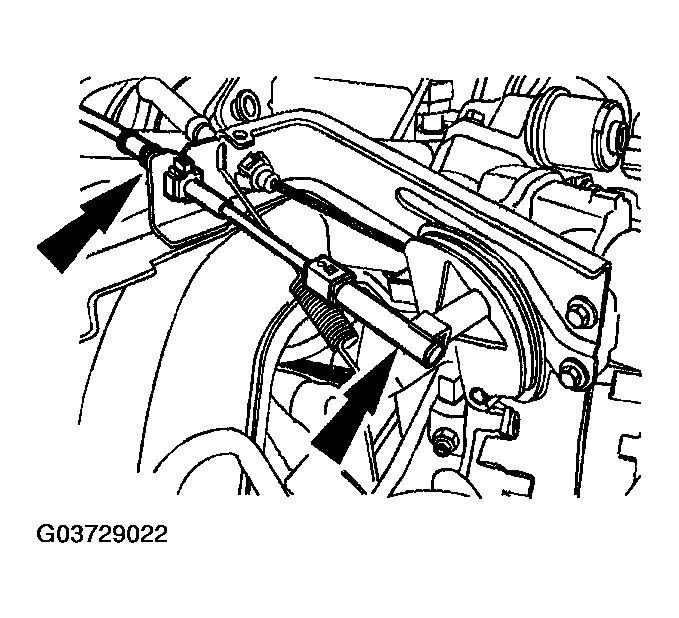

Fig 3: Disconnecting Speed Control Cable
Courtesy of MAZDA MOTORS CORP.
Remove the return spring. Disconnect the accelerator cable from the throttle lever and the bracket.

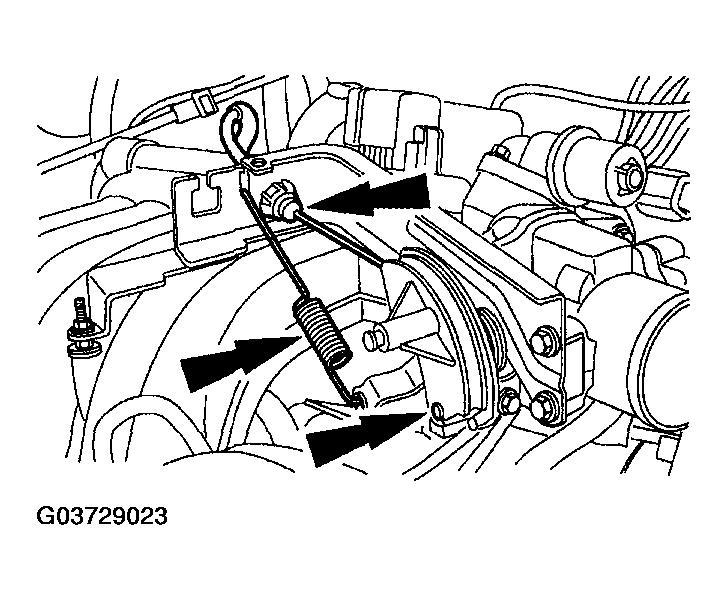

Fig 4: Disconnecting Accelerator Cable From Throttle Lever And Bracket
Courtesy of MAZDA MOTORS CORP.
Remove the bolts, the nut and the bracket.

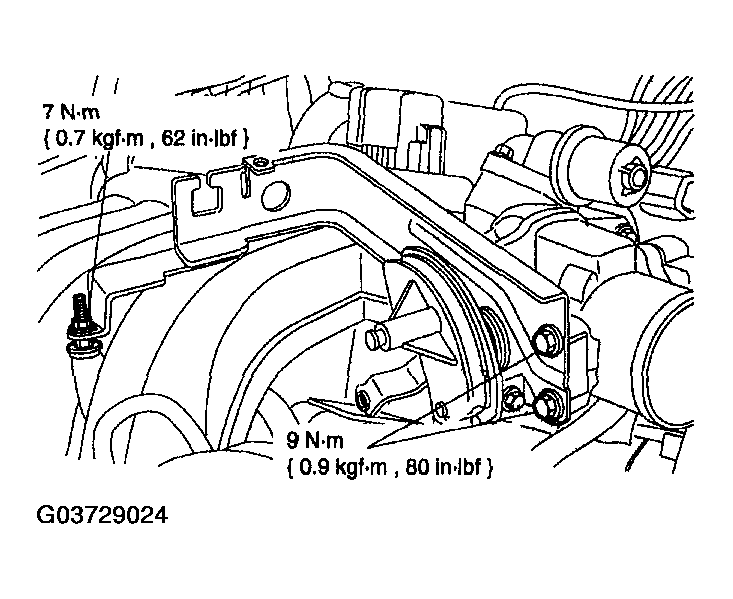

Fig 5: Removing Bracket - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
