Throttle Body Removal/Installation - 2.3L

WARNING: This page is about a different car, the 2005 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

Remove the accelerator control splash shield.

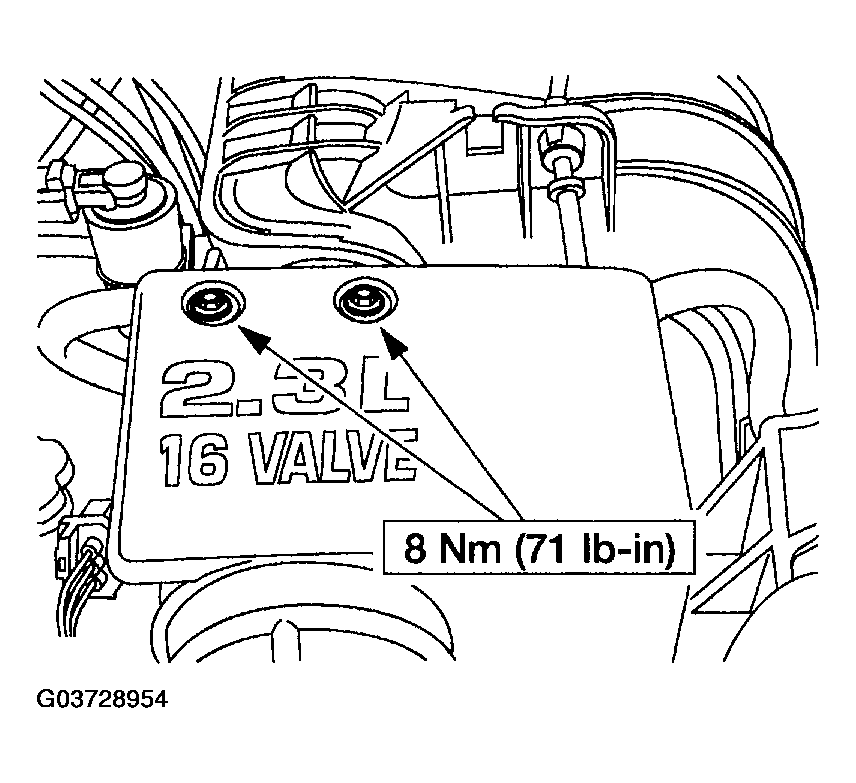

Fig 1: Removing Accelerator Control Splash Shield - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Disconnect the wiring harness and engine vent tube from the air cleaner outlet tube.

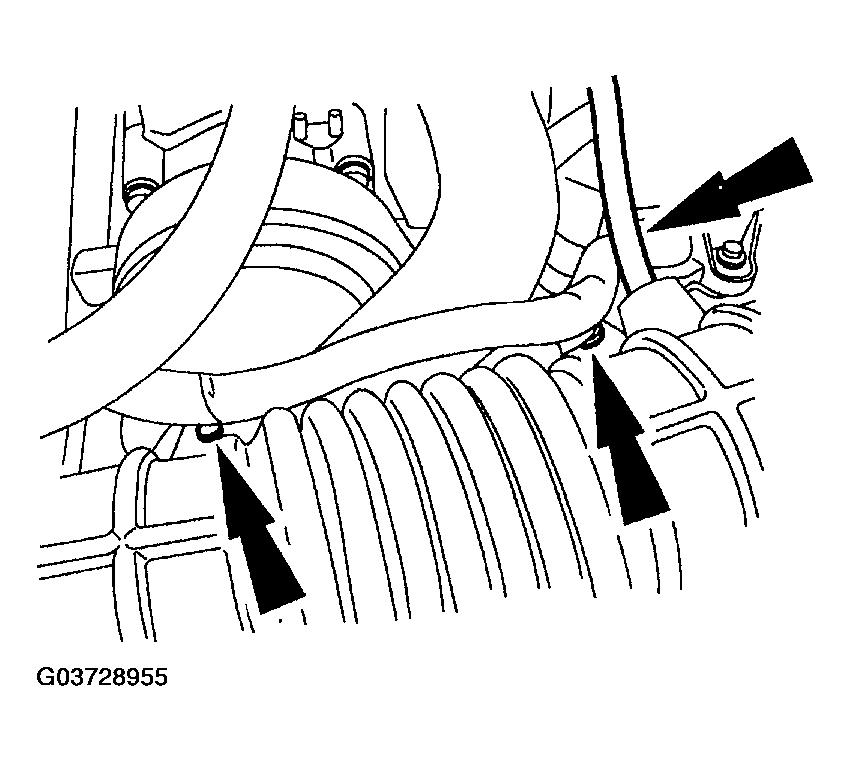

Fig 2: Disconnecting Wiring Harness And Engine Vent Tube From Air Cleaner Outlet Tube
Courtesy of MAZDA MOTORS CORP.
Loosen the clamps, the bolt and remove the engine air cleaner intake tube and duct.

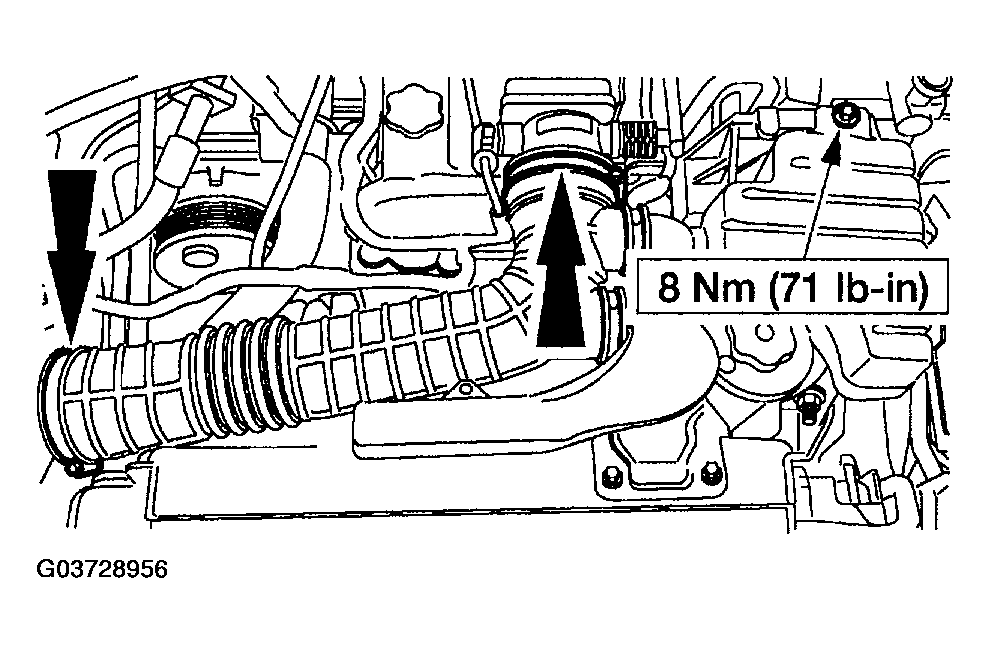

Fig 3: Removing Engine Air Cleaner Intake Tube And Duct - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the accelerator cable and the cruise control cable (if equipped).

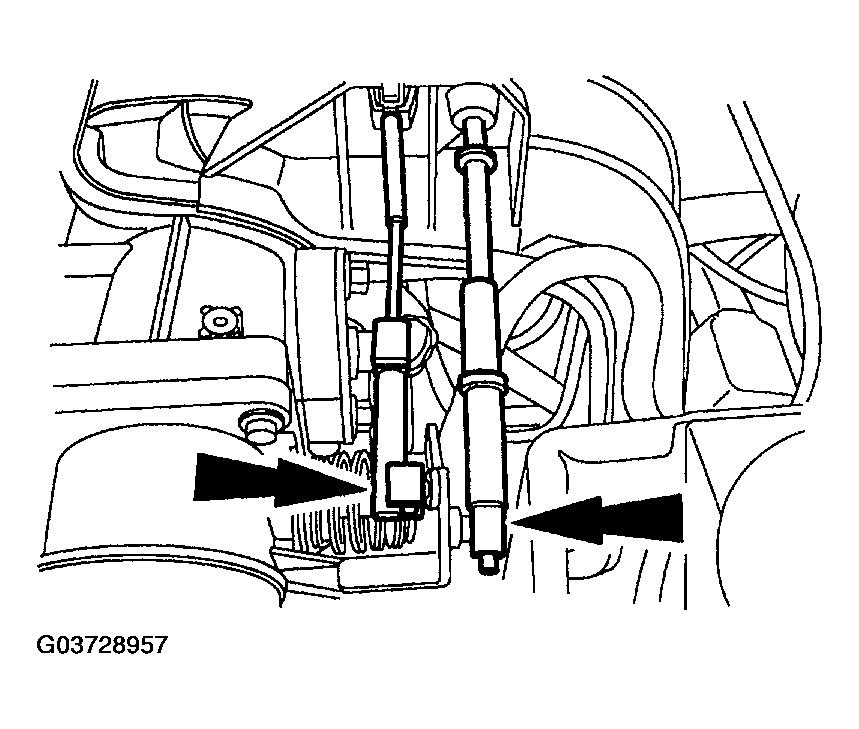

Fig 4: Removing Accelerator Cable And Cruise Control Cable
Courtesy of MAZDA MOTORS CORP.
Disconnect the throttle position (TP) sensor electrical connector.

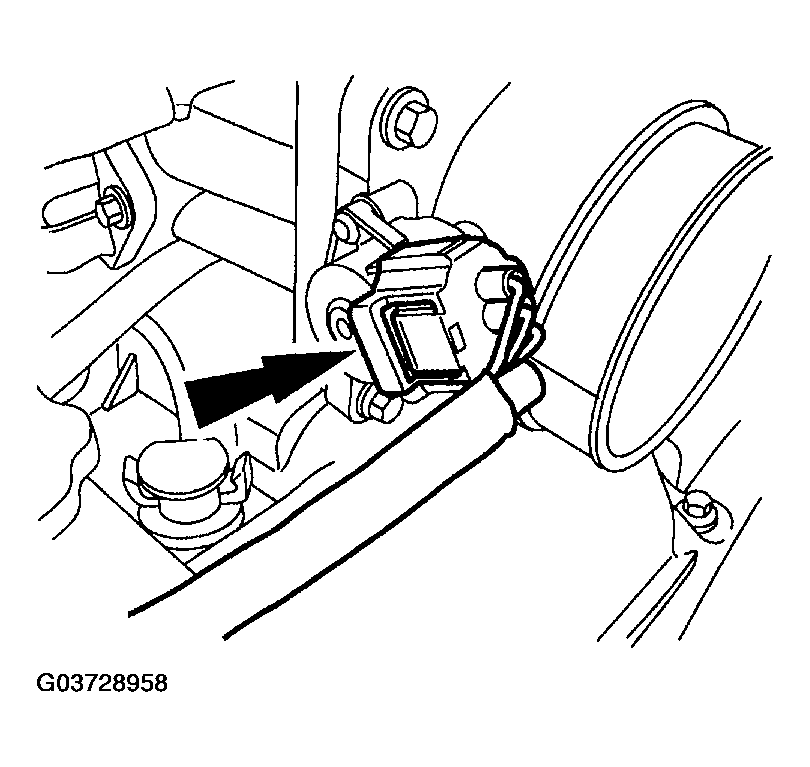

Fig 5: Disconnecting Throttle Position (TP) Sensor Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Remove the bolts and the throttle body.

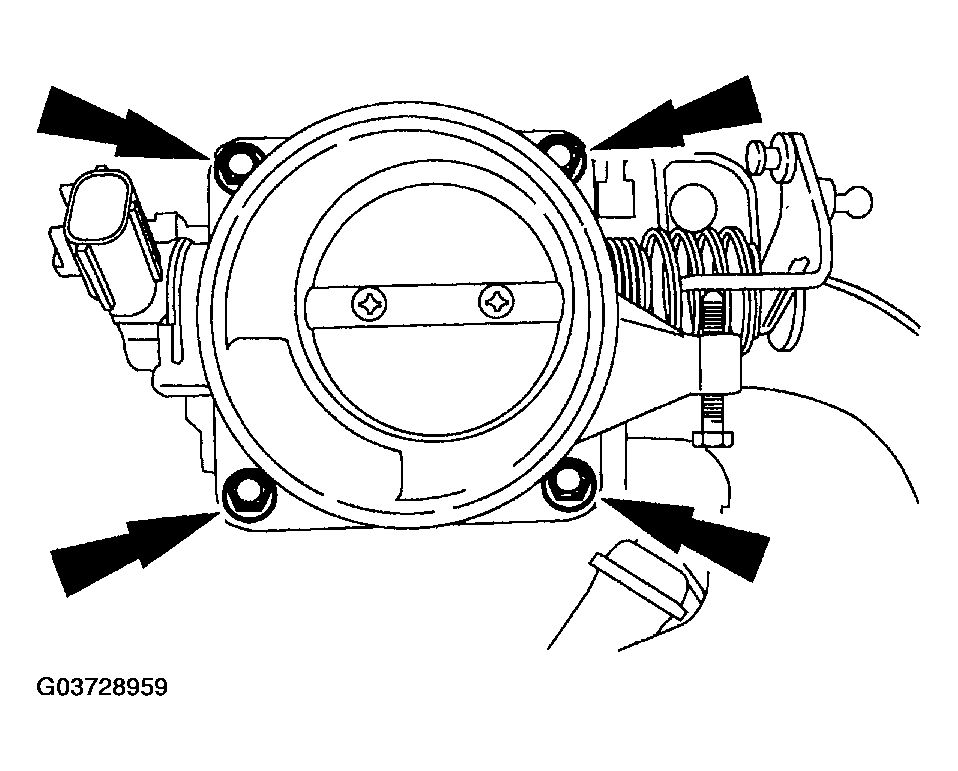

Fig 6: Removing Throttle Body
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
- Tighten the throttle body bolts in the sequence shown to 10 N.m {1 kgf.m, 7 ft.lbf}.

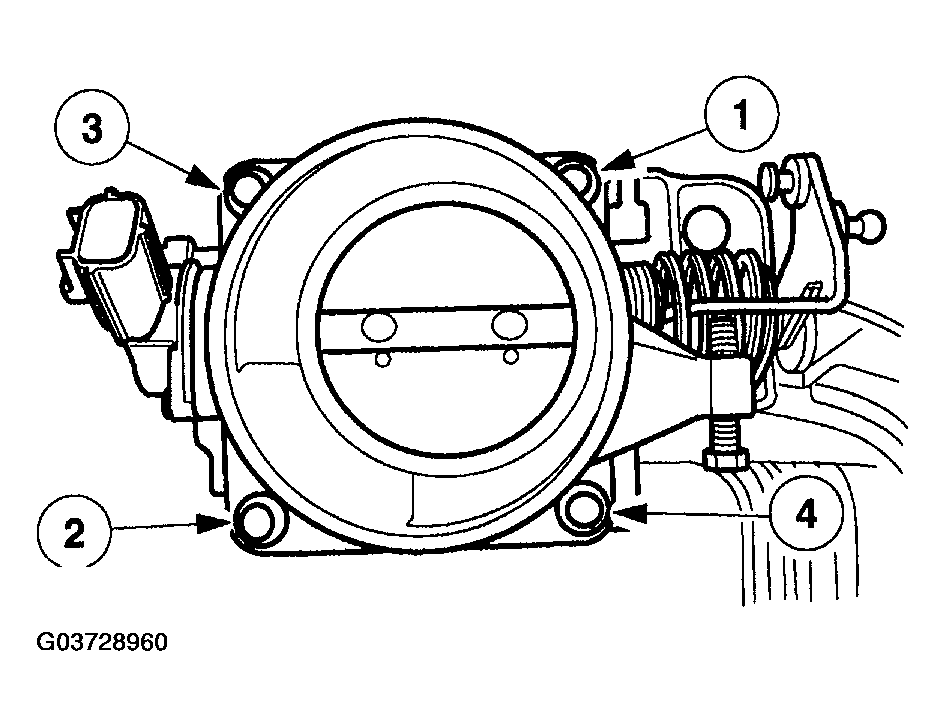

  Fig 7: Identifying Tightening Sequence Of Throttle Body Bolts
  Courtesy of MAZDA MOTORS CORP.
