Air Intake Component Locations

WARNING: This page is about a different car, the 2005 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

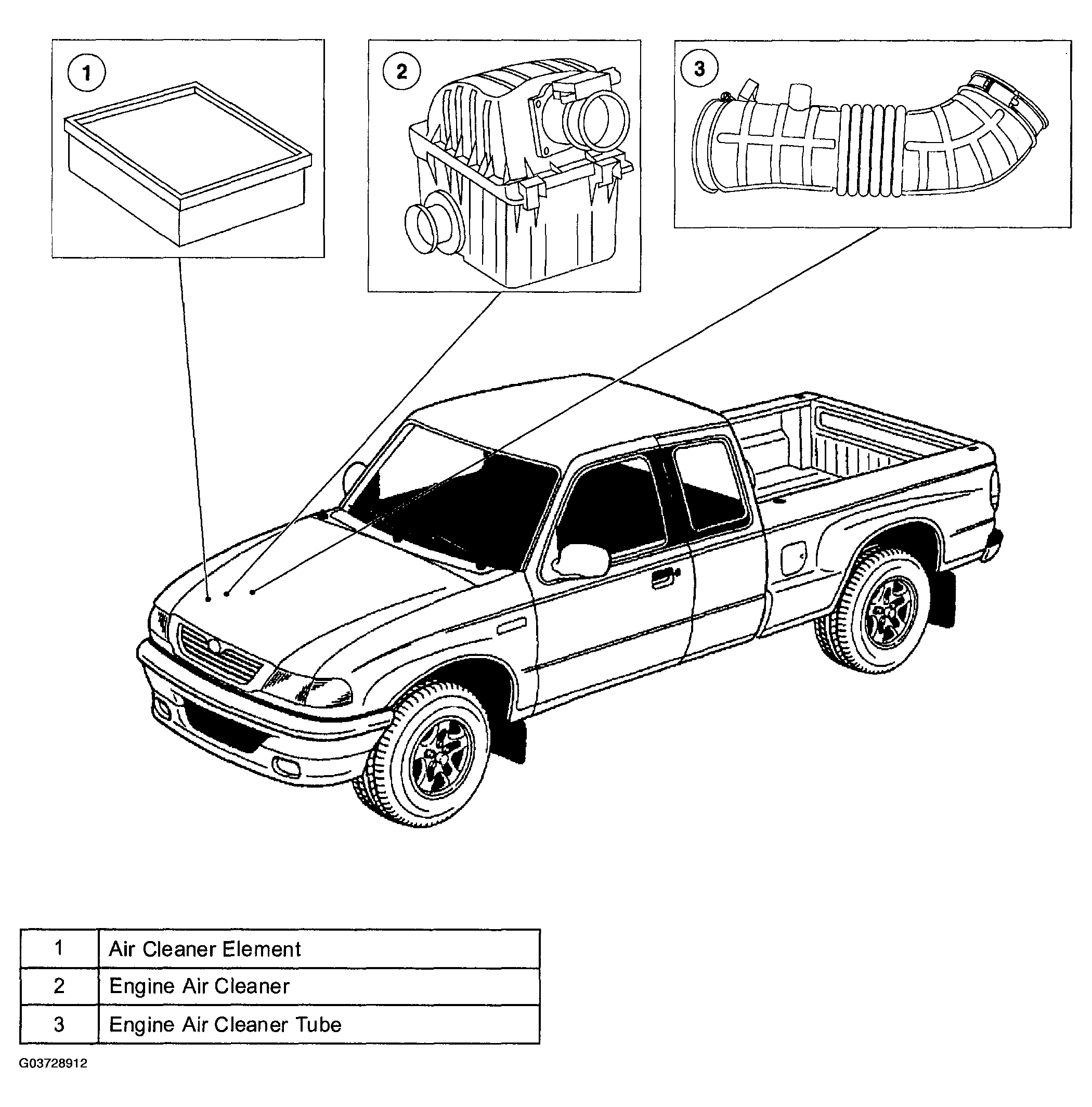

Fig 1: Identifying Air Intake Components Location
G03728912Courtesy of MAZDA MOTORS CORP.
