Air Cleaner Element Removal/Installation - 2.3L

WARNING: This page is about a different car, the 2005 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

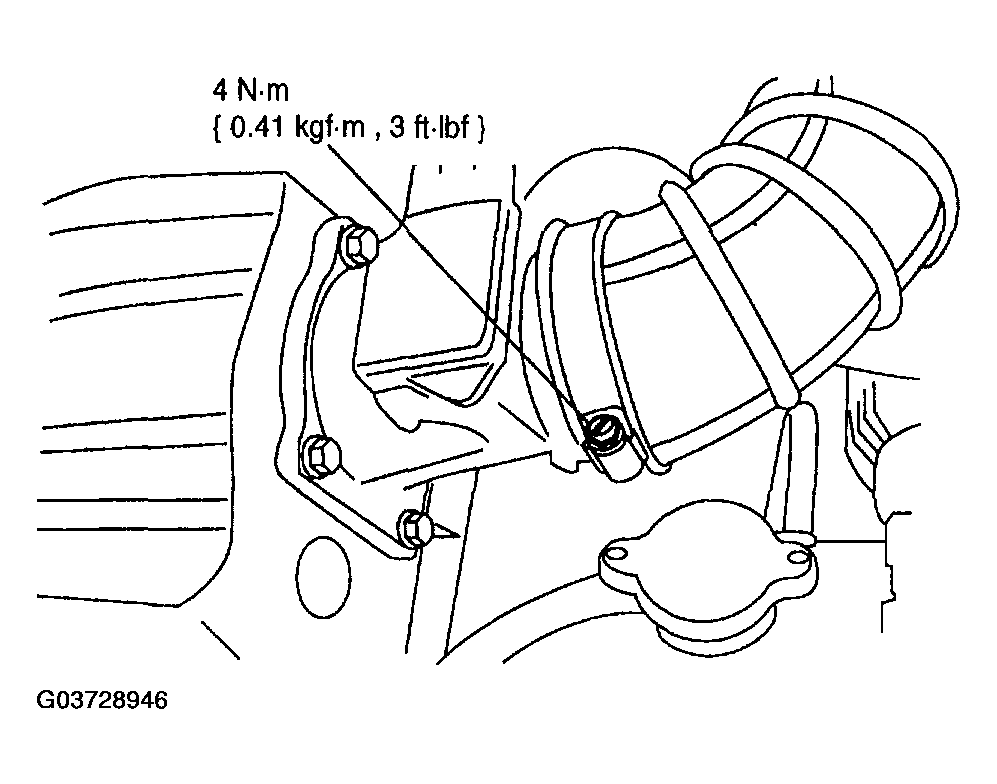

Fig 1: Removing Tube From Mass Air Flow (MAF) Sensor - With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

Remove the tube from the mass air flow (MAF) sensor.

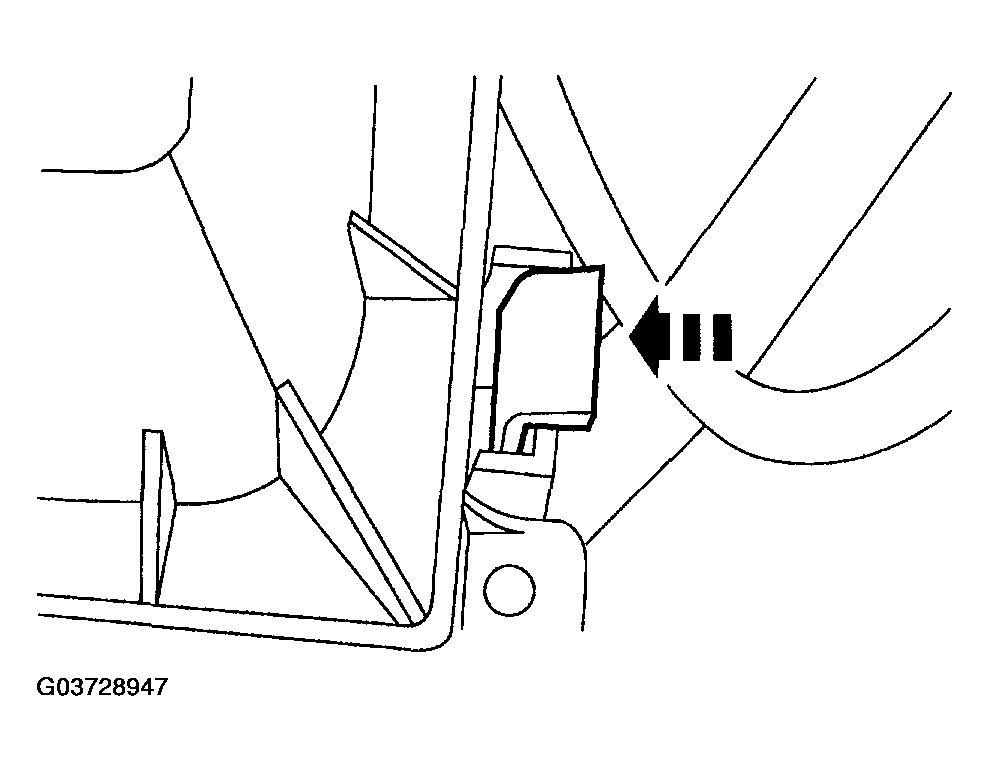

Fig 2: Disengaging Engine Air Cleaner Snap Clamps
Courtesy of MAZDA MOTORS CORP.
Disengage the two engine air cleaner snap clamps.

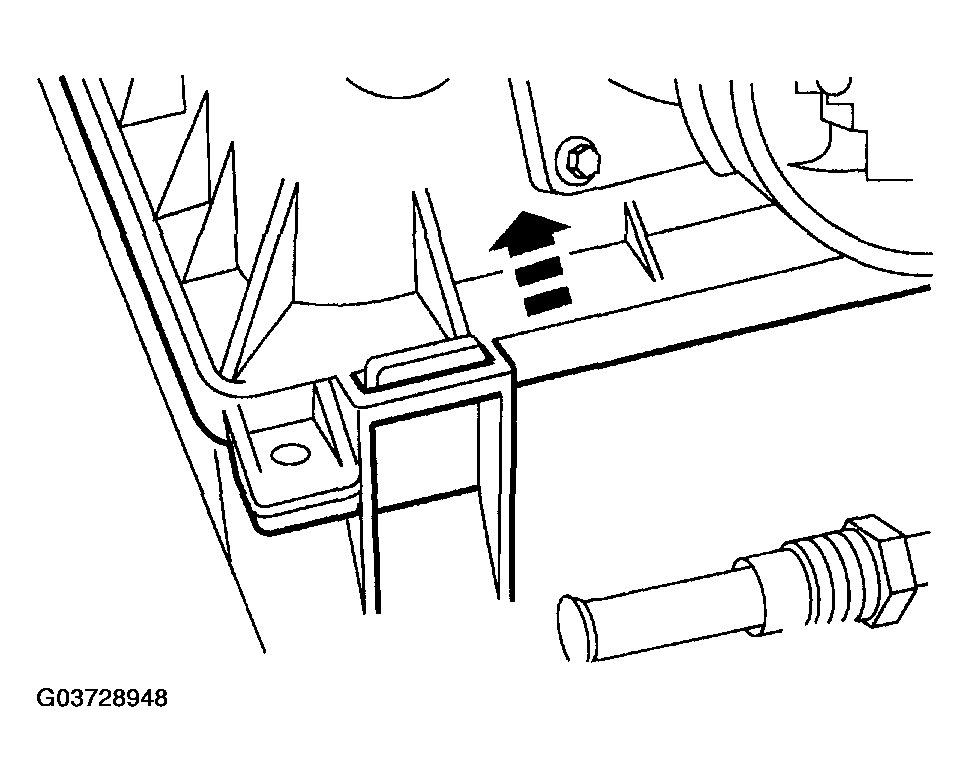

Fig 3: Lifting Engine Air Cleaner Cover
Courtesy of MAZDA MOTORS CORP.
Lift the engine air cleaner cover.

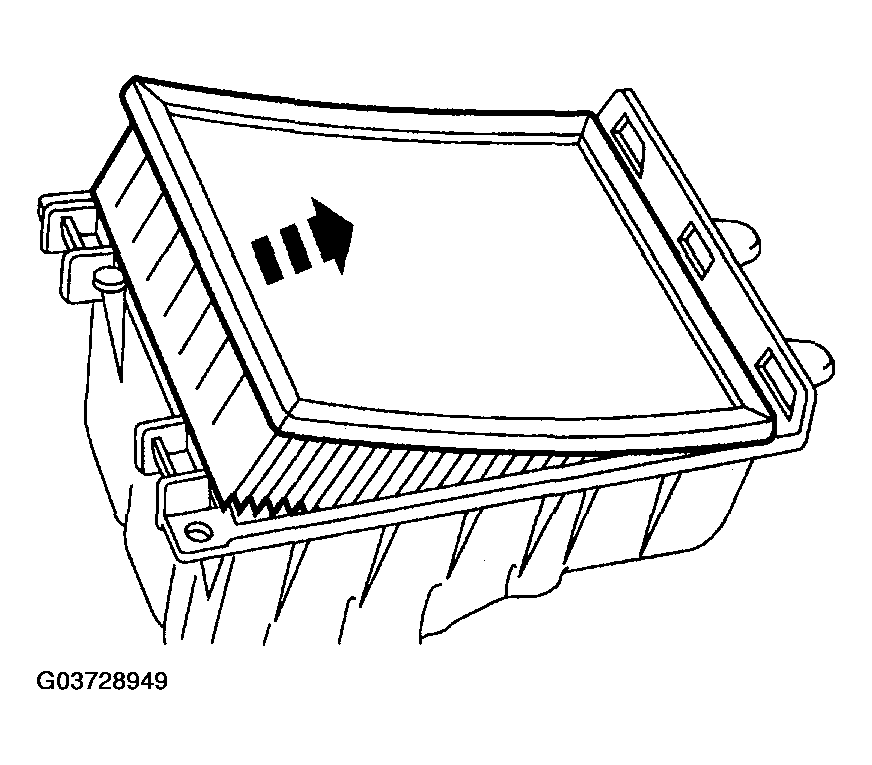

Fig 4: Removing Air Cleaner Element
Courtesy of MAZDA MOTORS CORP.
Remove the air cleaner element.
CAUTION:
- Snap clamps must be engaged or damage to the engine may occur.
Install in reverse order of removal.
