Accelerator Pedal Removal/Installation - 2.3L

WARNING: This page is about a different car, the 2005 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

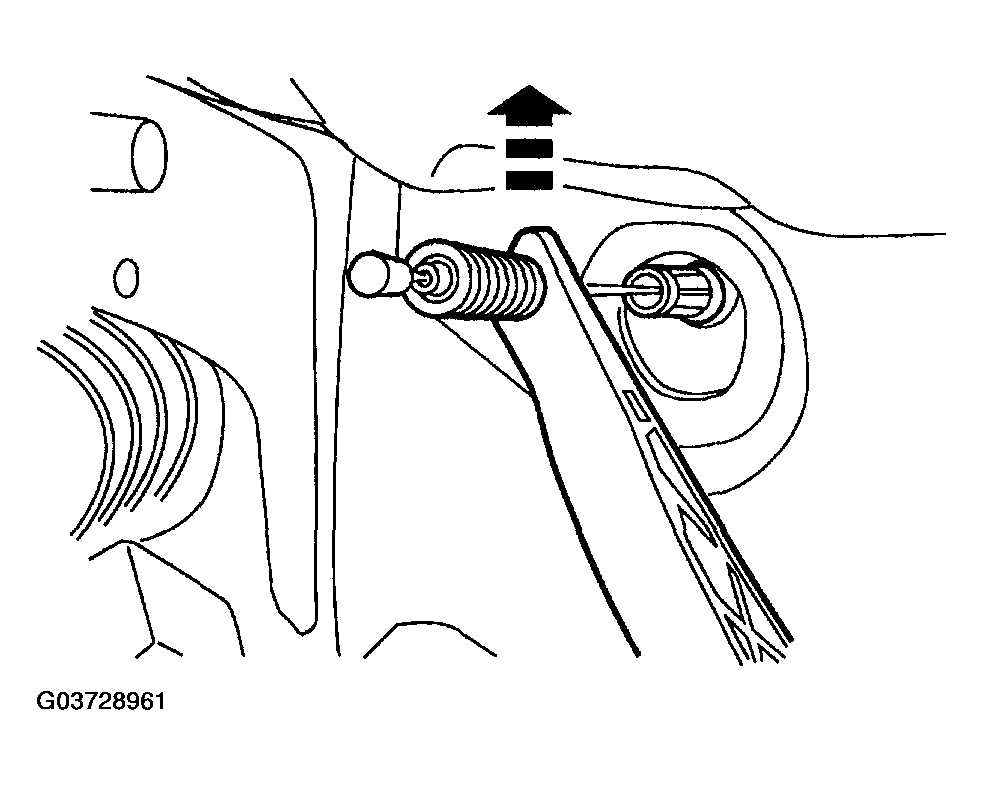

Fig 1: Disconnecting Accelerator Cable From Accelerator Pedal And Shaft
G03728961Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the accelerator cable from the accelerator pedal and shaft.
    Fig 2: Removing Accelerator Pedal And Shaft - With Torque Specifications
    G03728962Courtesy of MAZDA MOTORS CORP.
  2. Remove the bolt and remove the accelerator pedal and shaft.
  3. Install in reverse order of removal.
