Accelerator Cable Removal/Installation - 2.3L

WARNING: This page is about a different car, the 2005 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

Remove the bolts and the accelerator control splash shield.

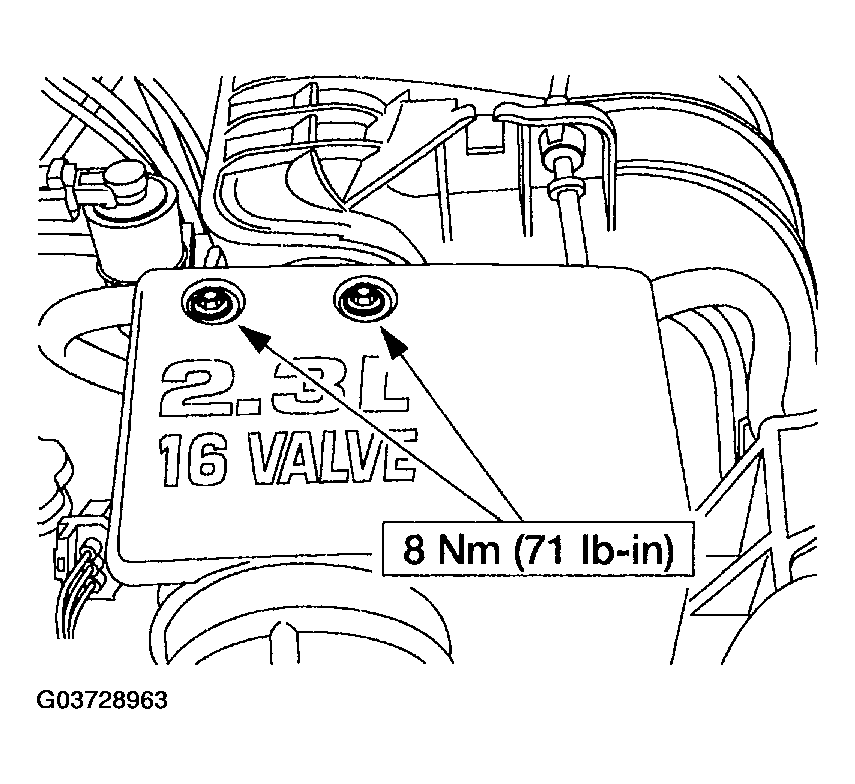

Fig 1: Removing Accelerator Control Splash Shield - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Disconnect the accelerator cable from the throttle lever.

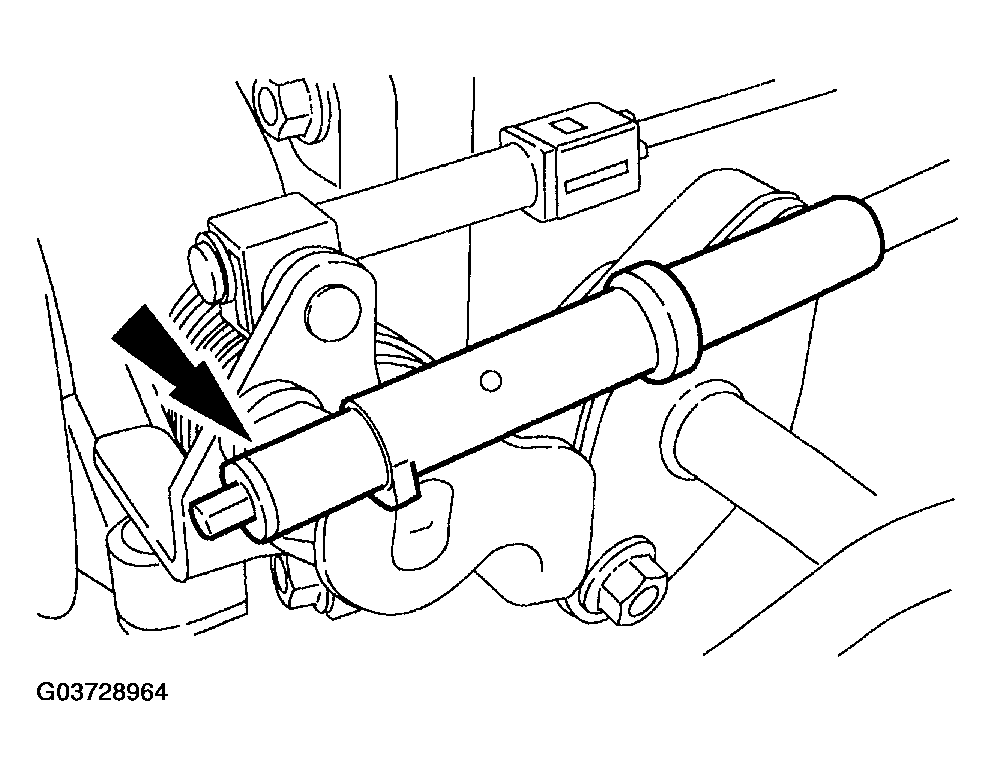

Fig 2: Disconnecting Accelerator Cable From Throttle Lever
Courtesy of MAZDA MOTORS CORP.
Depress the tabs and remove the accelerator cable from the intake manifold.

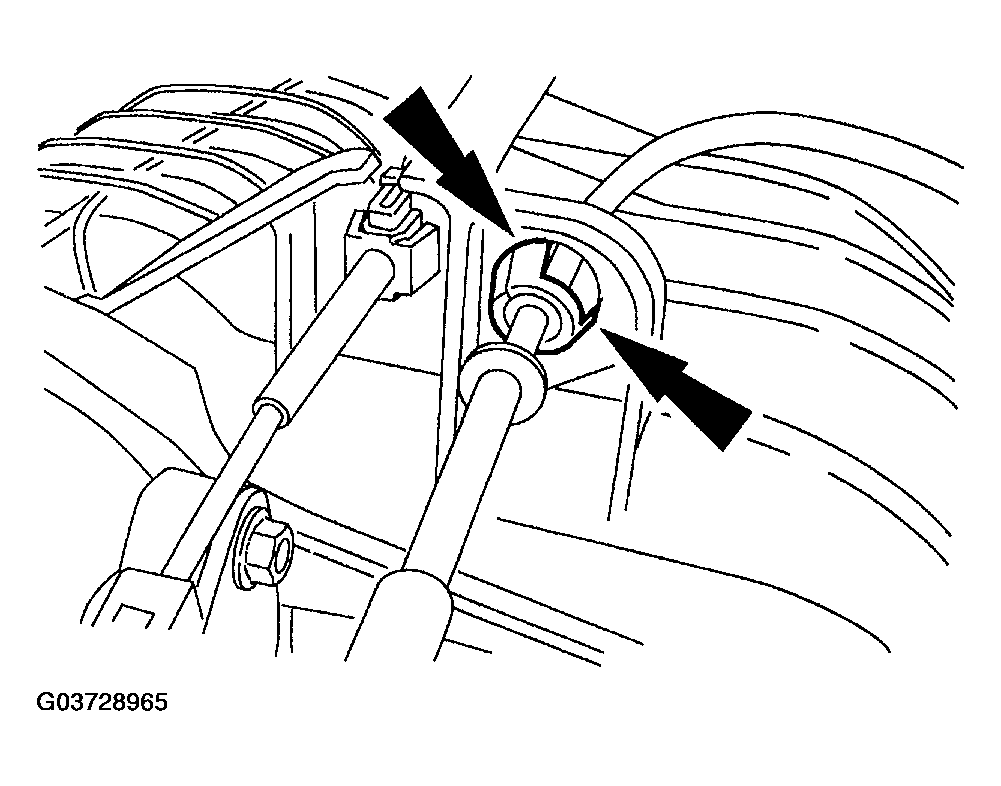

Fig 3: Removing Accelerator Cable From Intake Manifold
Courtesy of MAZDA MOTORS CORP.
Disconnect the accelerator cable from the accelerator pedal and shaft.

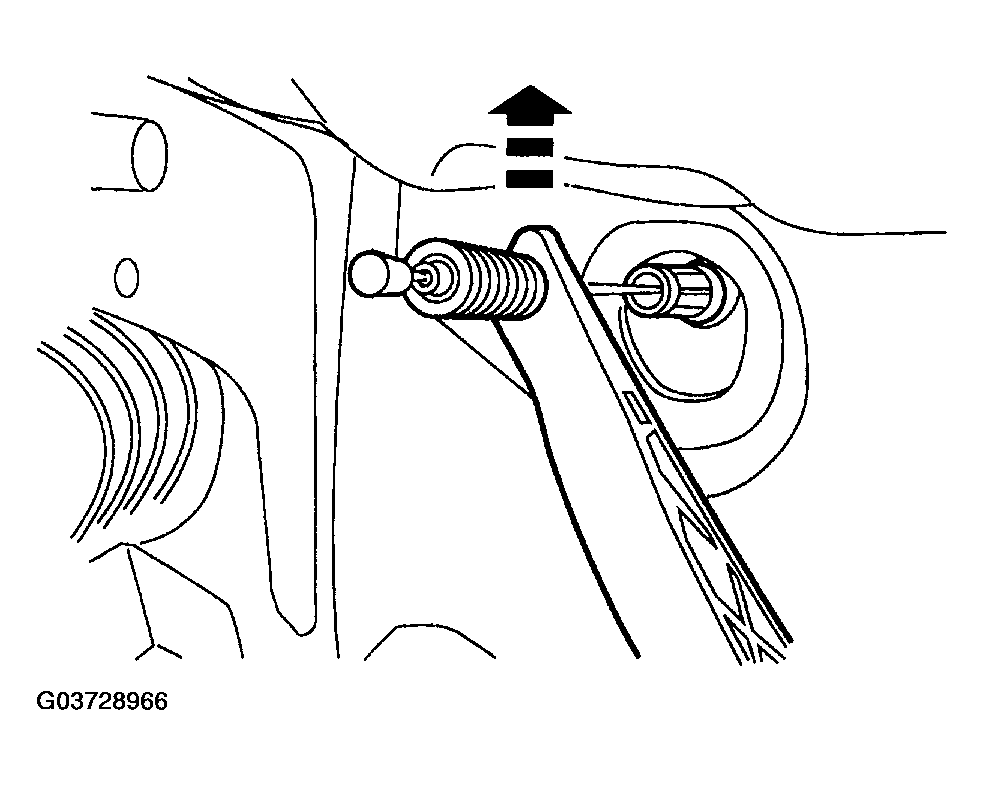

Fig 4: Disconnecting Accelerator Cable From Accelerator Pedal And Shaft
Courtesy of MAZDA MOTORS CORP.
Depress the tabs and remove the accelerator cable.

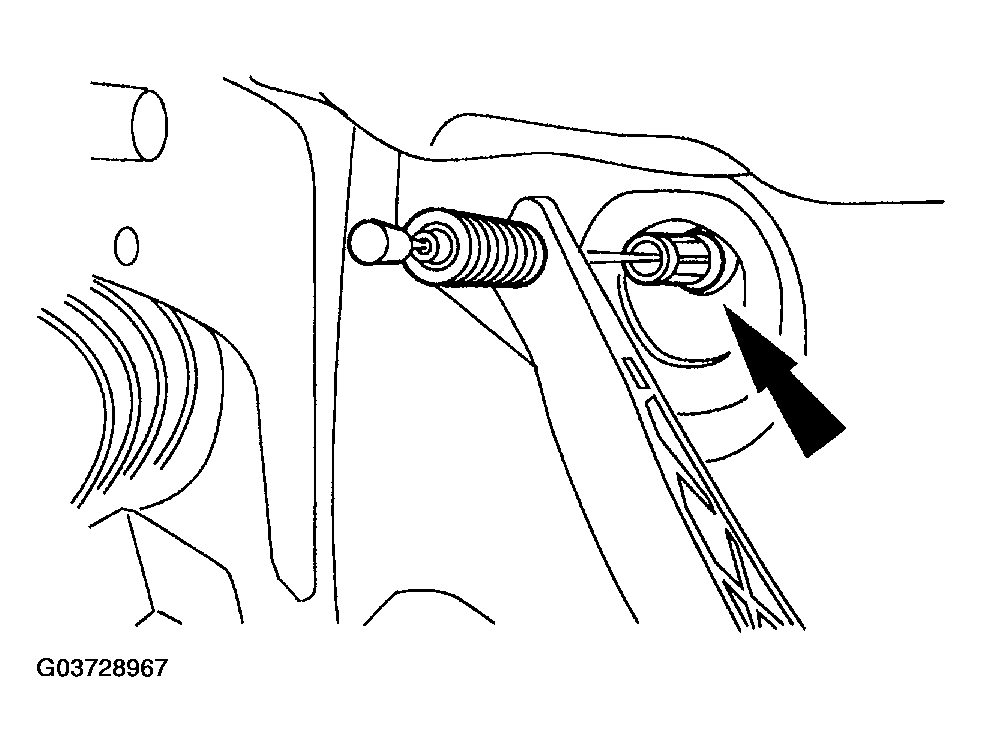

Fig 5: Removing Accelerator Cable
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
