Electric EGR (EEGR) Valve Heater Hose Removal/Installation - 2.3L

WARNING: This page is about a different car, the 2005 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. See ENGINE COOLANT REPLACEMENT - 2.3L .

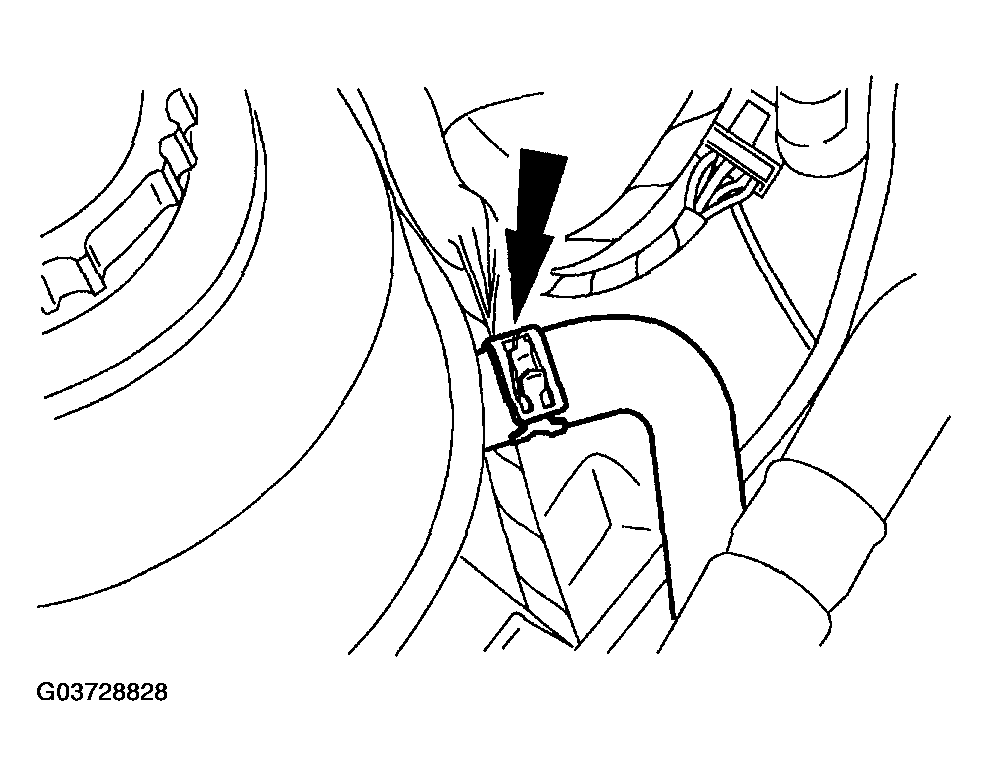

Fig 1: Disconnecting Hose From Reservoir
Courtesy of MAZDA MOTORS CORP.
Disconnect the hose from the reservoir.

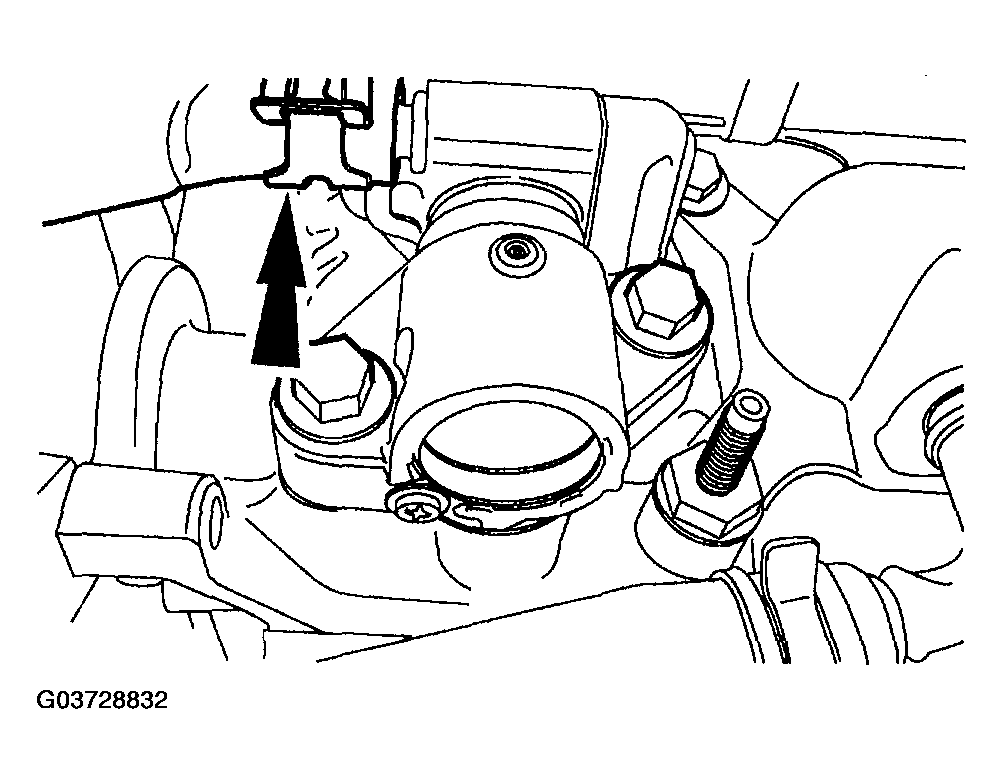

Fig 2: Disconnecting Electrical Connector And Hose From Thermostat Housing
Courtesy of MAZDA MOTORS CORP.
Disconnect the electrical connector and the hose from the thermostat housing.
Remove the transmission. See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION (automatic) or MANUAL TRANSMISSION REMOVAL/INSTALLATION .

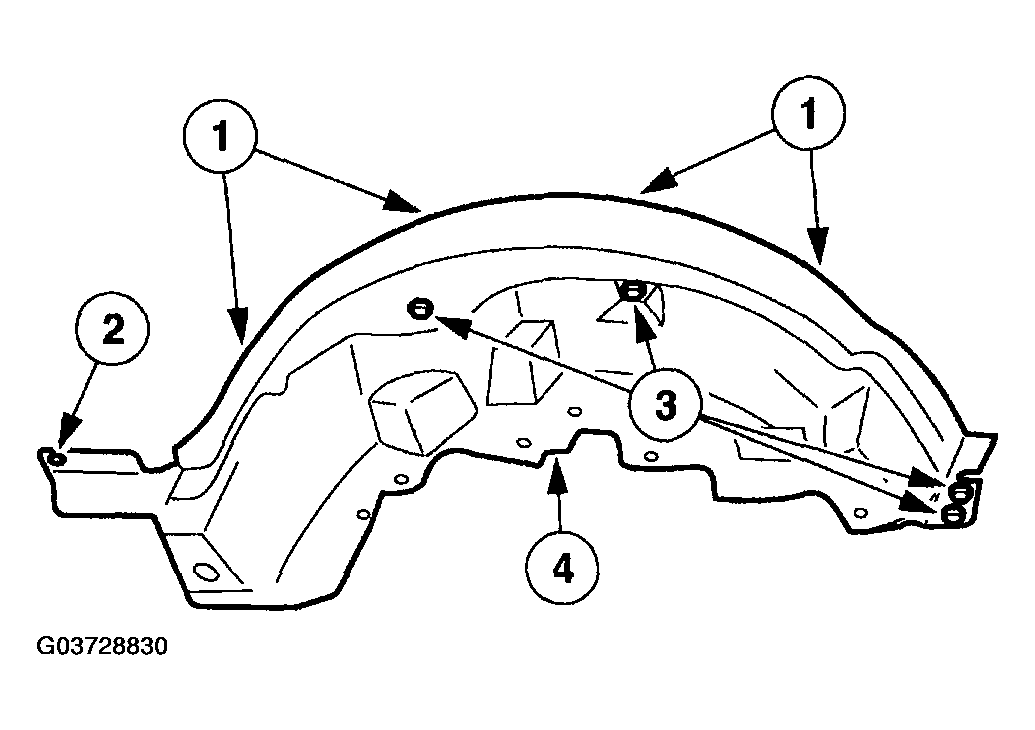

Fig 3: Removing RH Inner Fender Splash Shield Bolts
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Remove the electrical connector locators from the splash shield before removing the shield.
Remove the RH inner fender splash shield.
1. Remove the screws.
2. Remove the pushpin.
3. Remove the bolts.
4. Remove the splash shield.

  Fig 4: Removing Hose Mounting Nuts - With Torque Specifications
  Courtesy of MAZDA MOTORS CORP.
Remove the hose mounting nuts.

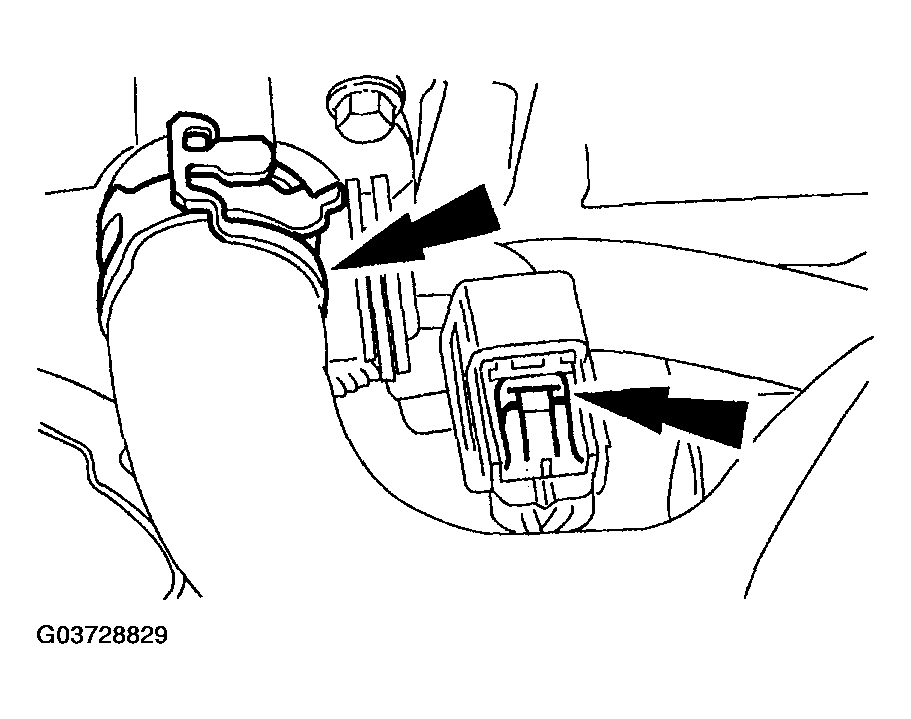

Fig 5: Disconnecting Hose From EEGR Valve
Courtesy of MAZDA MOTORS CORP.
Disconnect the hose from the EEGR valve and remove the hose from the vehicle.
To install, reverse the removal procedure.
