Coolant Outlet Pipe Front Removal/Installation - 2.3L

WARNING: This page is about a different car, the 2005 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. See ENGINE COOLANT REPLACEMENT - 2.3L .

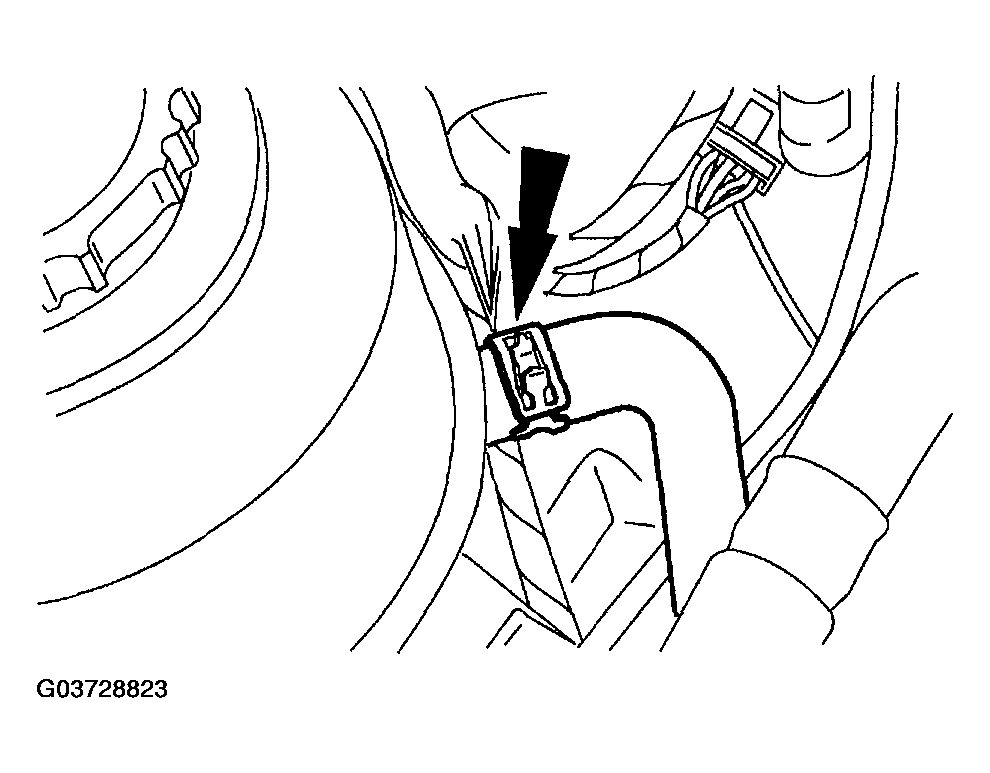

Fig 1: Disconnecting Radiator Upper Hose
Courtesy of MAZDA MOTORS CORP.
Disconnect the radiator upper hose.

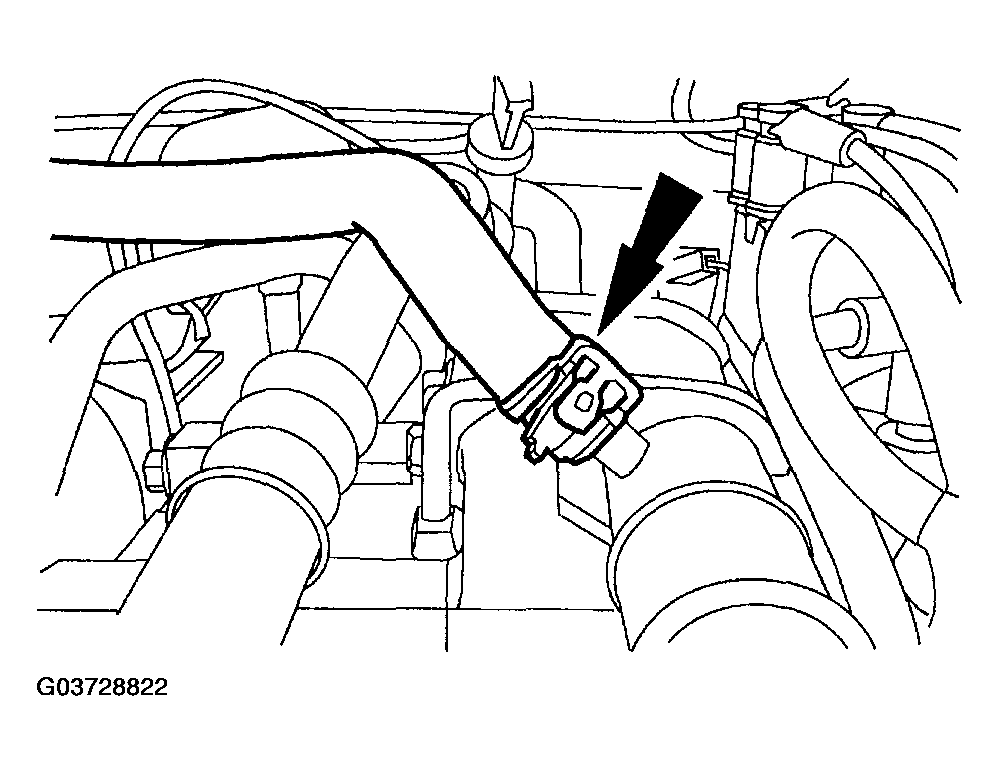

Fig 2: Disconnecting Reservoir Hose
Courtesy of MAZDA MOTORS CORP.
Disconnect the reservoir hose.

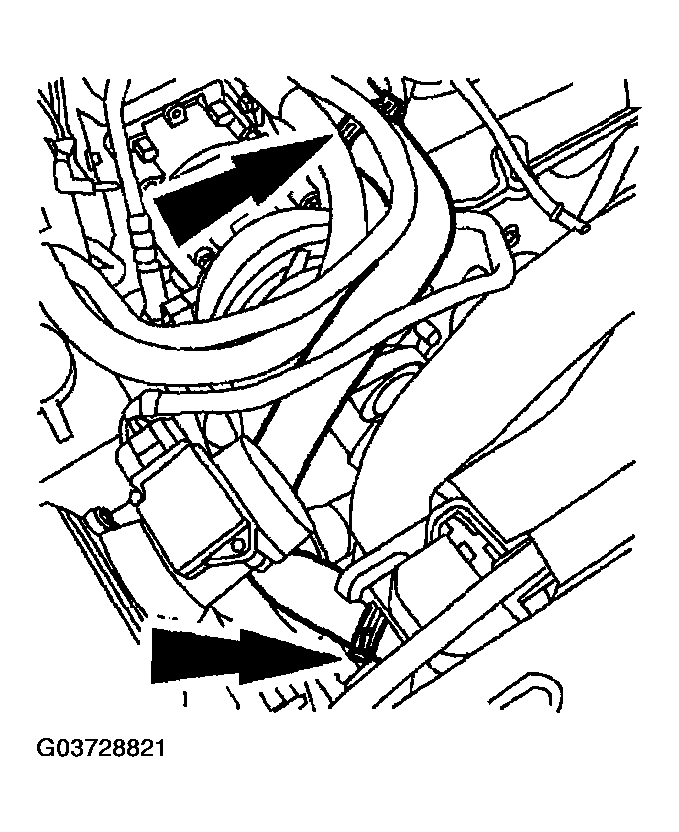

Fig 3: Disconnecting Degas Bottle Lower Hose
Courtesy of MAZDA MOTORS CORP.
Disconnect the degas bottle lower hose.

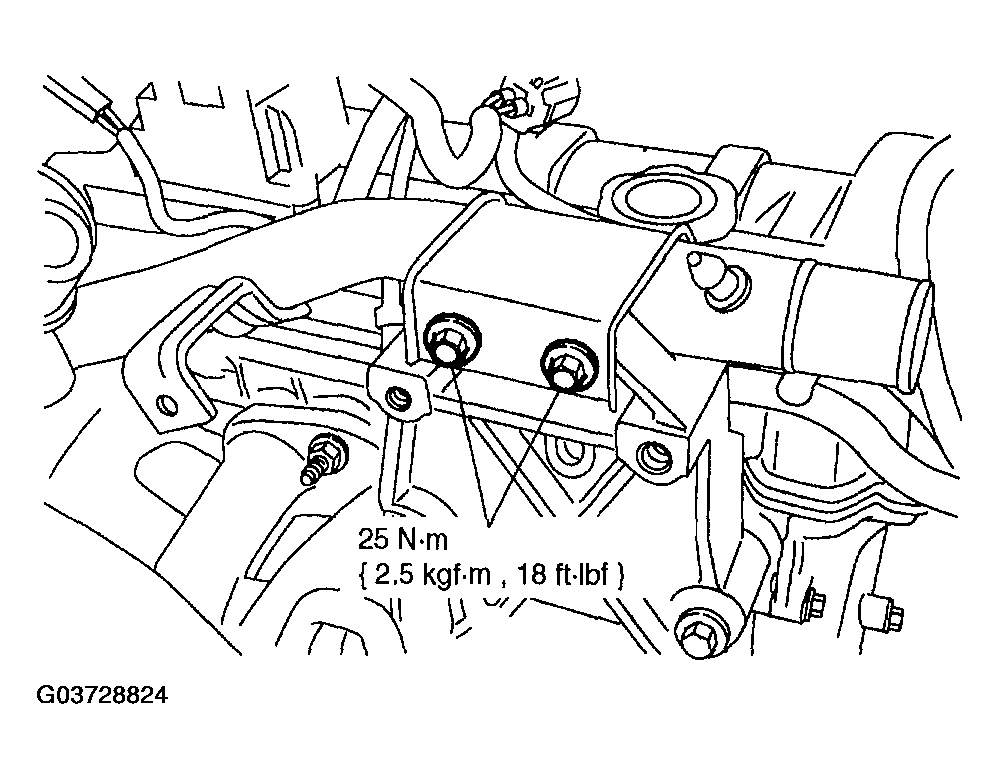

Fig 4: Removing Front Coolant Outlet Tube Mounting Bolts - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the mounting bolts and remove the front coolant outlet tube.
NOTE:
- Inspect the two O-rings. Install new O-rings if necessary.
To install, reverse the removal procedure.
