Removal and Installation

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan. See OIL PAN REMOVAL/INSTALLATION - 3.0L  .

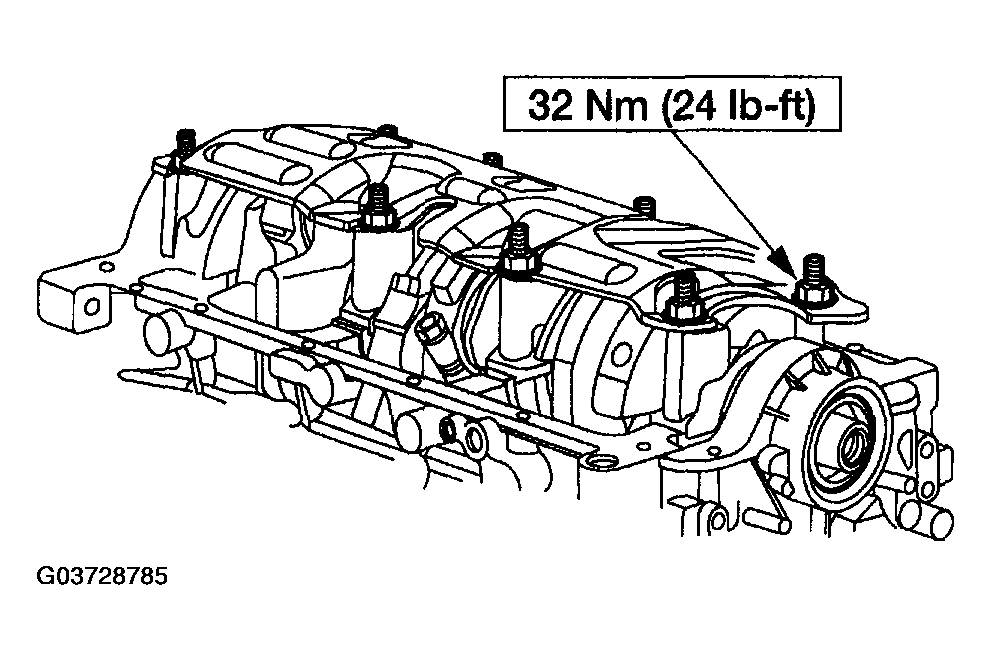

    Fig 1: Removing Oil Pan Baffle Fasteners - With Torque Specifications
    G03728785Courtesy of MAZDA MOTORS CORP.
  2. Remove the fasteners and the oil pan baffle.
  3. To install, reverse the removal procedure.
