Oil Level Indicator Tube Removal/Installation - 3.0L

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator tube assembly.

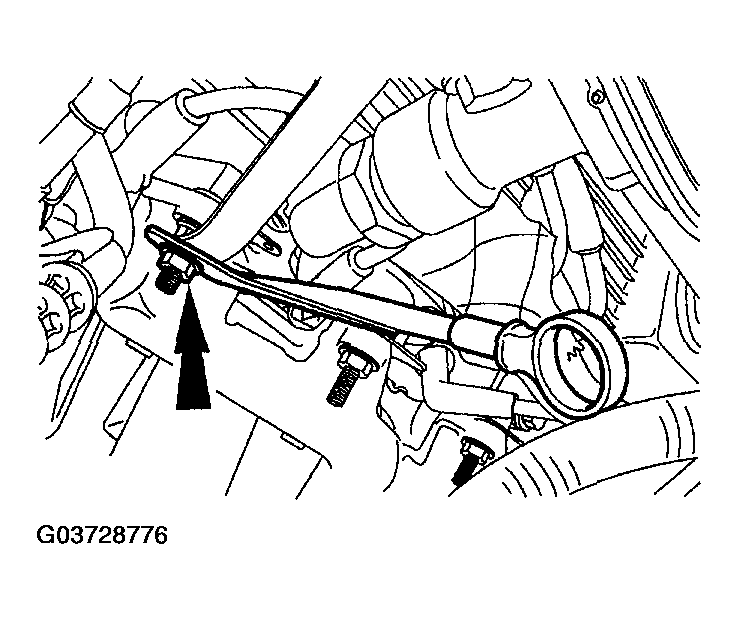

    Fig 1: Removing Oil Level Indicator Tube Assembly
    G03728776Courtesy of MAZDA MOTORS CORP.
  2. Coat the sealing surfaces of the oil level indicator tube with silicone sealant.
    Fig 2: Coating Sealing Surfaces Of Oil Level Indicator Tube With Silicone Sealant
    G03728777Courtesy of MAZDA MOTORS CORP.
  3. Install the oil level indicator tube.

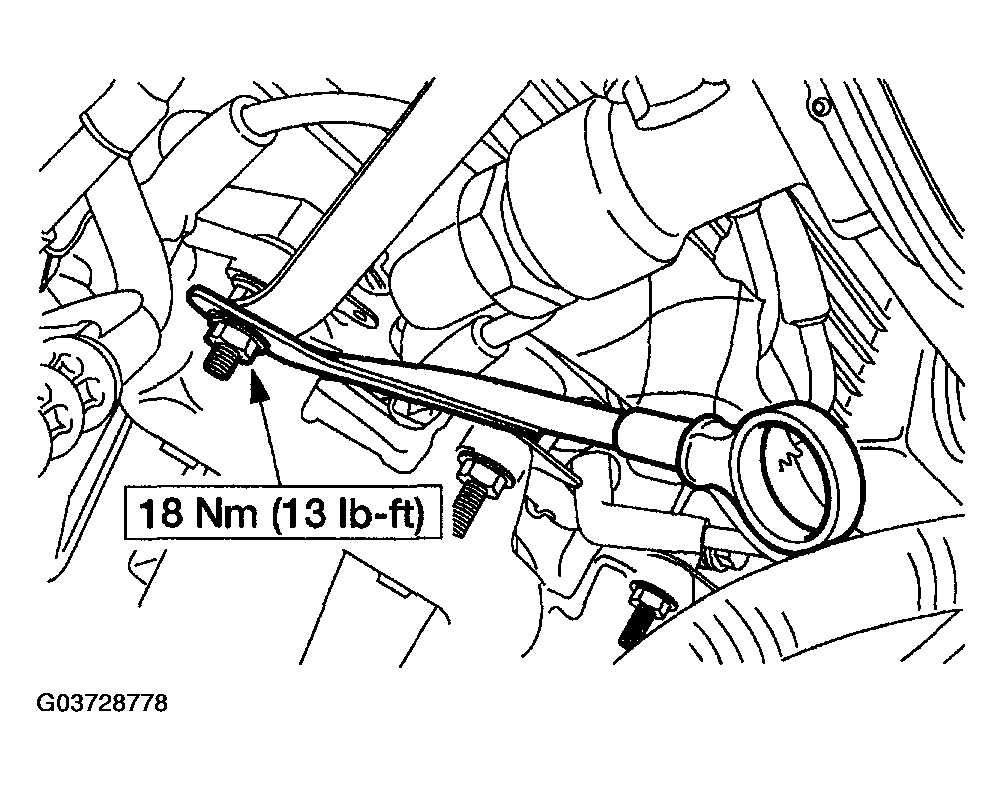

    Fig 3: Installing Oil Level Indicator Tube - With Torque Specifications
    G03728778Courtesy of MAZDA MOTORS CORP.
